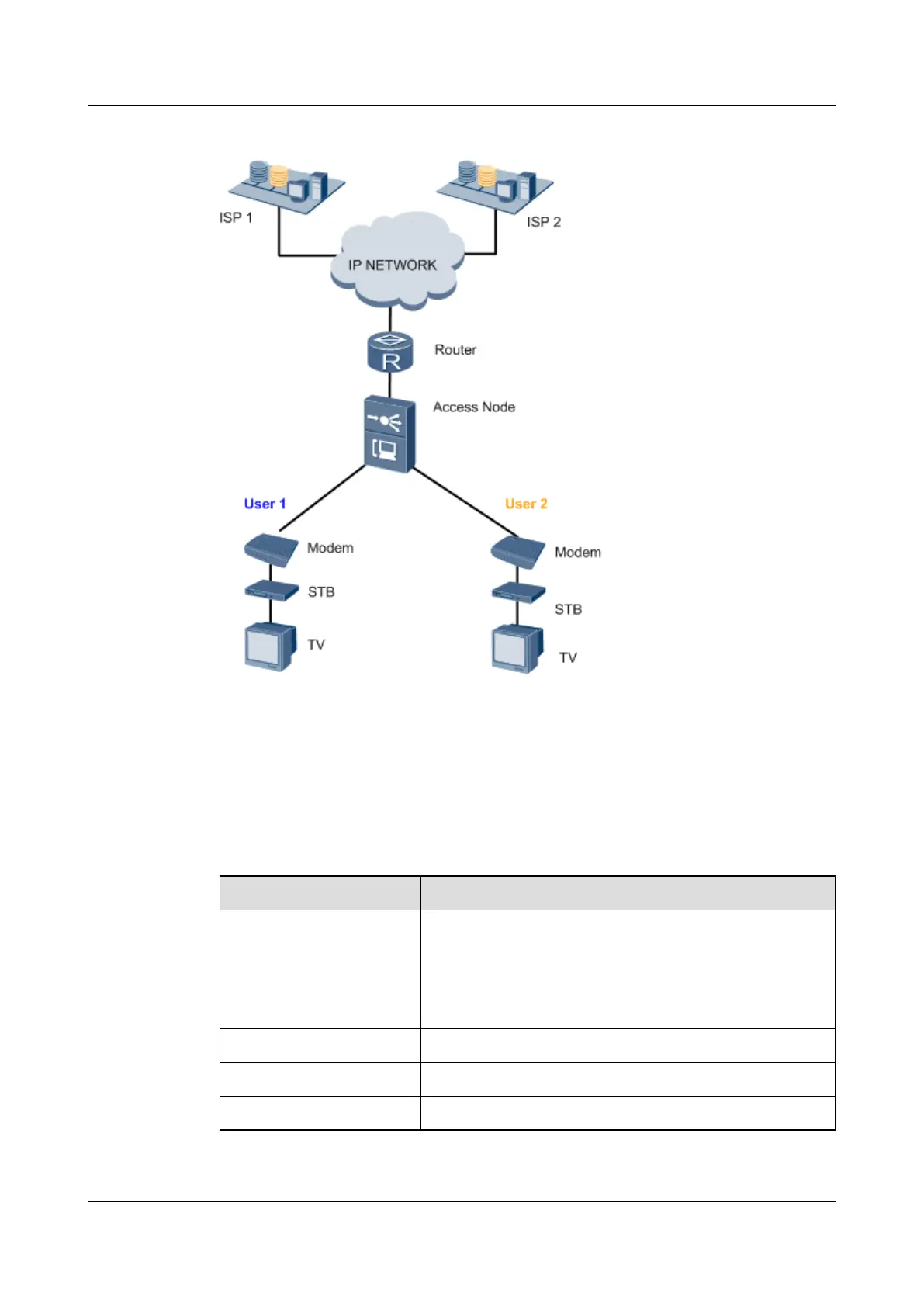

Figure 3-7 Example network of the multicast service
Data Plan
Table 3-1 lists the data plan for configuring the multicast video service with static program
configuration.
Table 3-1 Data plan for configuring the multicast video service with static program configuration
Item Data
Multicast VLAN Multicast domain of ISP 1: VLAN 10
Multicast domain of ISP 2: VLAN 20
NOTE
It is recommended that different multicast VLANs be planned for
different ISPs.
Multicast upstream port 0/19/0
Multicast mode IGMP proxy
Multicast protocol IGMPv3
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 3 Configuring the DSLAM Services
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
293
