Service Requirements
l The PBX is connected to the MA5600T/MA5603T/MA5608T through the ISDN PRI. PRI
supports a data rate of 2048 kbit/s, including 30 B channels and one D channel. The rate
of both the B channel and the D channel is 64 kbit/s.
l After the configuration is completed, users of the PBX can make calls successfully and can
communicate with users outside the PBX in the normal state.
Networking
Figure 3-17 shows an example of the ISDN PRA service.

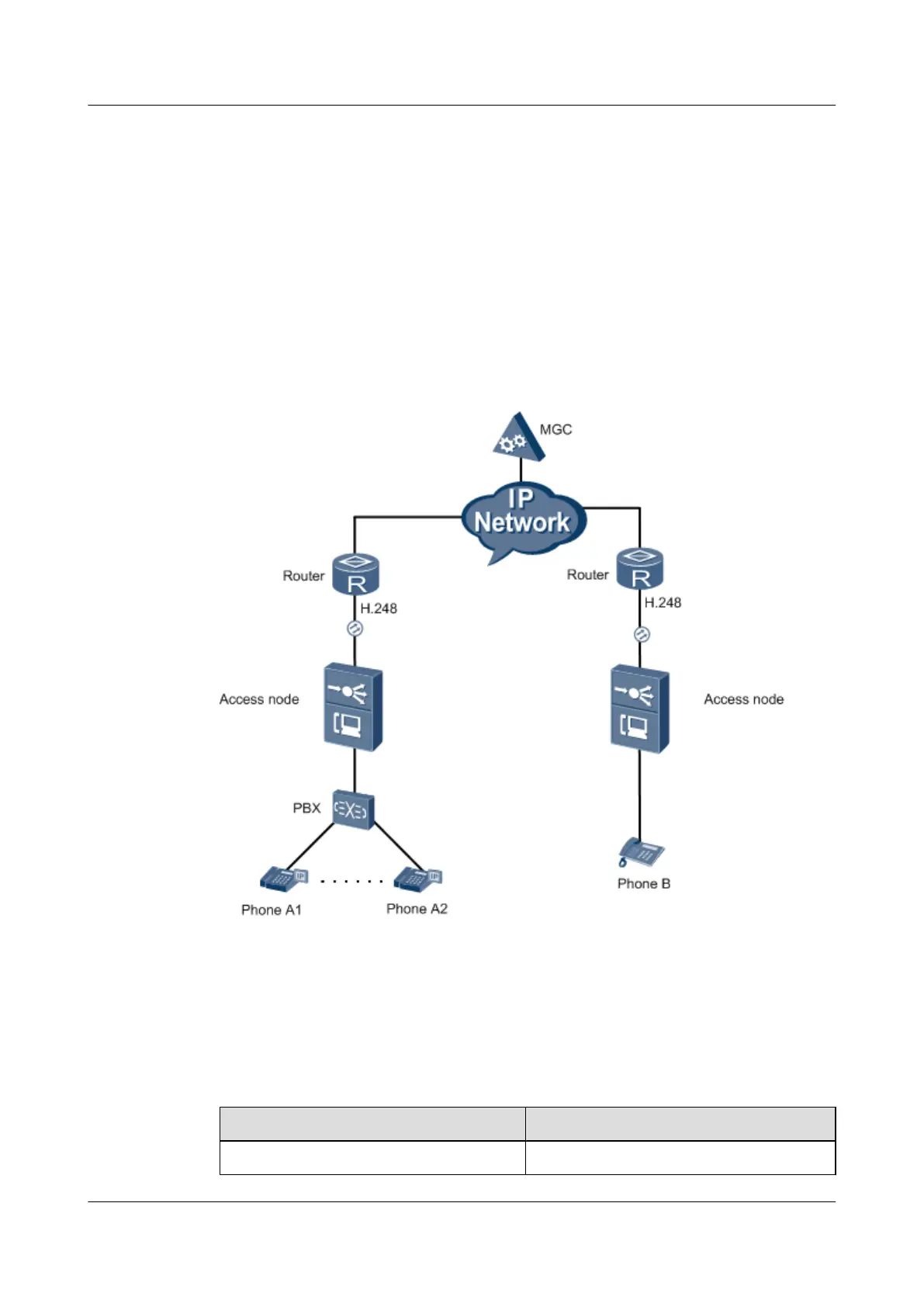

Figure 3-17 Example of the ISDN PRA service
Data Plan
Table 3-11 provides the data plan for configuring the ISDN PRA service.
Table 3-11 Data plan for configuring the ISDN PRA service
Item Data
MG interface ID 0
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 3 Configuring the DSLAM Services
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
341

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
