ENGINE REASSEMBLY
*: "d" cut posistion

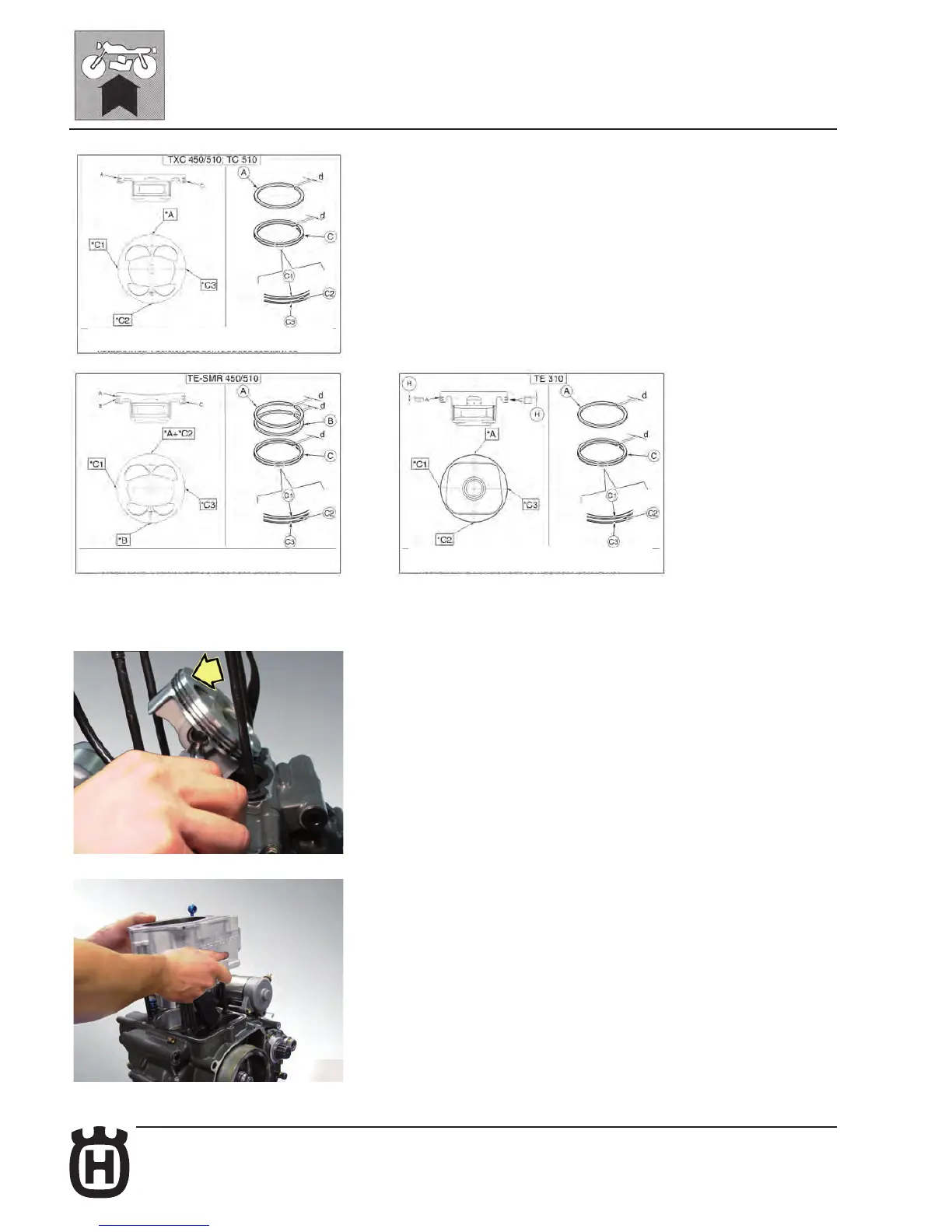

Fit the piston rings as shown in the picture. The manufacturer mark, if it is present
on the piston ring, must be turned upwards.
Assembly of piston and cylinder
Install a new base gasket. Install the piston, lubricate the piston with motor
oil and install the piston pin circlips. Make sure that the arrow on the piston is
pointing forward.
Lubricate the cylinder liner with engine oil and push it down over the piston
rings.
