ENGINE REASSEMBLY

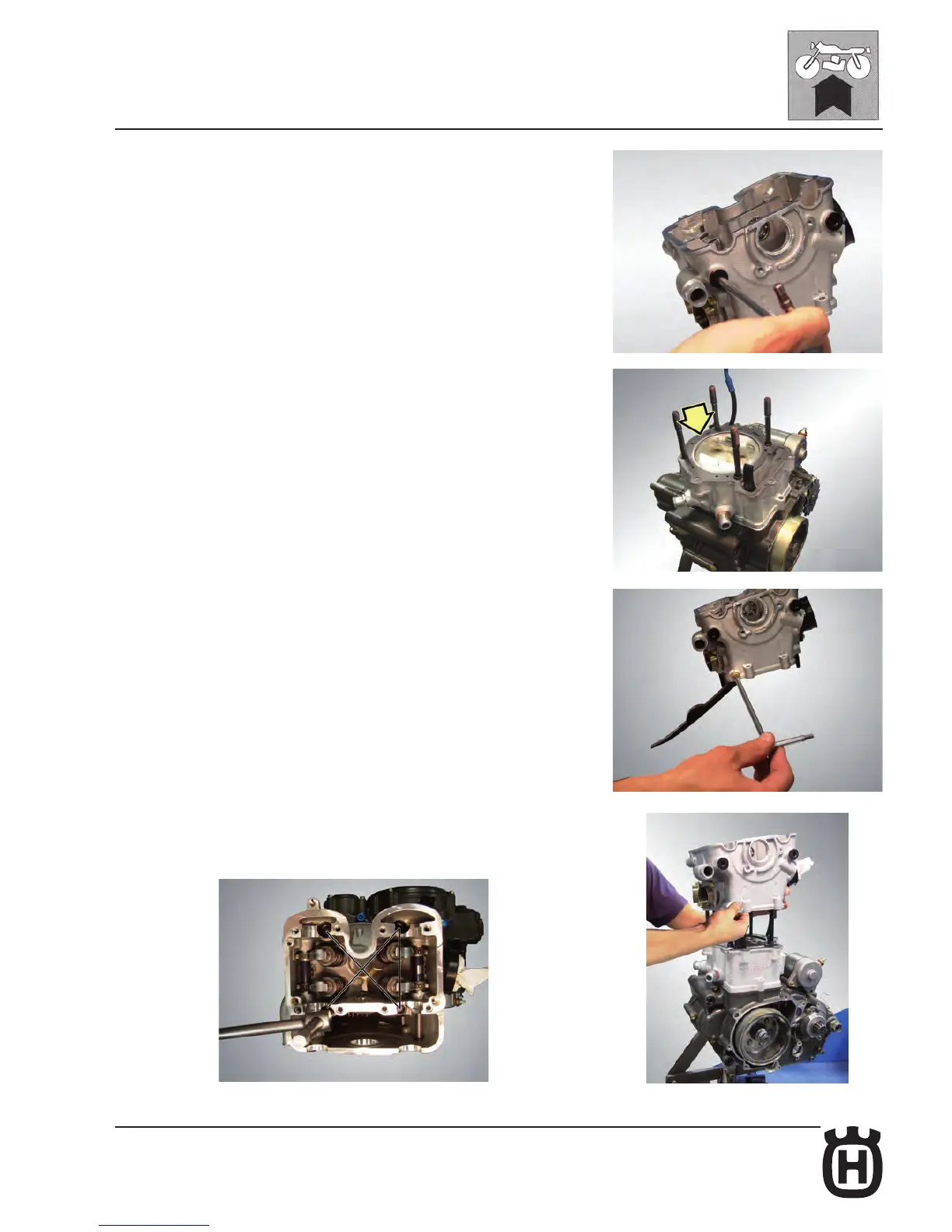

Assembly of cylinder head
For valves reassembly see page G.15. If the rocker arm pivots have been dis-
assembled, tighten the pivots fastening screws to 25 Nm-2,55 Kgm-18.4 ft/lb
(+LOCTITE 243), when reassembling. Always use a new gasket head when
assembling: see “Cylinder head gasket selection chart” on page H.45. Assemble
chain slider on cylinder head (12 Nm-1,23 Kgm-8.9 ft/lb) then the cylinder head.
Tighten the cylinder head nuts whilst following a cross-over pattern and in steps
to 37 Nm+90°-3.8 Kgm+90°-27.5 ft/lb+90° (+ MOLIKOTE HSC).
