H.36 Part. N. 8000 H1344 (10-2009)

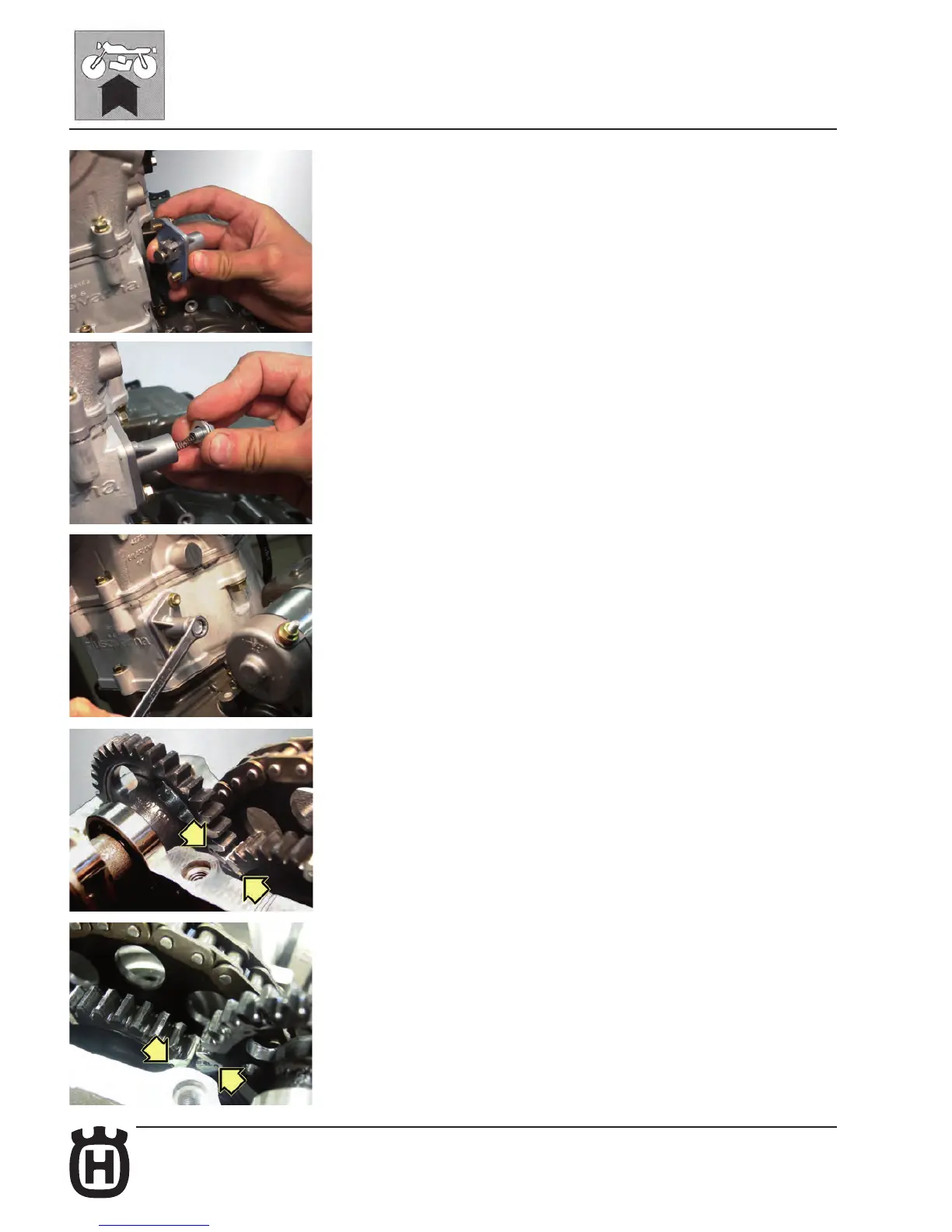

ENGINE REASSEMBLY
Assembly of cam-chain tensioner (TE-TC-TXC-SMR)
Back the pin for tightening the chain, reassemble the cam-chain tensioner with
its two screws (8 Nm-0,8 Kgm-5.8 ft/lb). Insert the spring, the washer and the
rear bolt (5 Nm-0,5 Kgm-3.6 ft/lb).
Mount the intake camshaft aligning the reference on the gear with the left refer-
ence on the timing gear.
Mount the exhaust camshaft aligning the reference on the gear with the right
reference on the timing gear.
TE-TC-TXC-SMR
TE-TC-TXC-SMR
TE-TC-TXC-SMR
