I.32
Part. N. 8000 H1344 (10-2009)
FRONT SUSPENSION

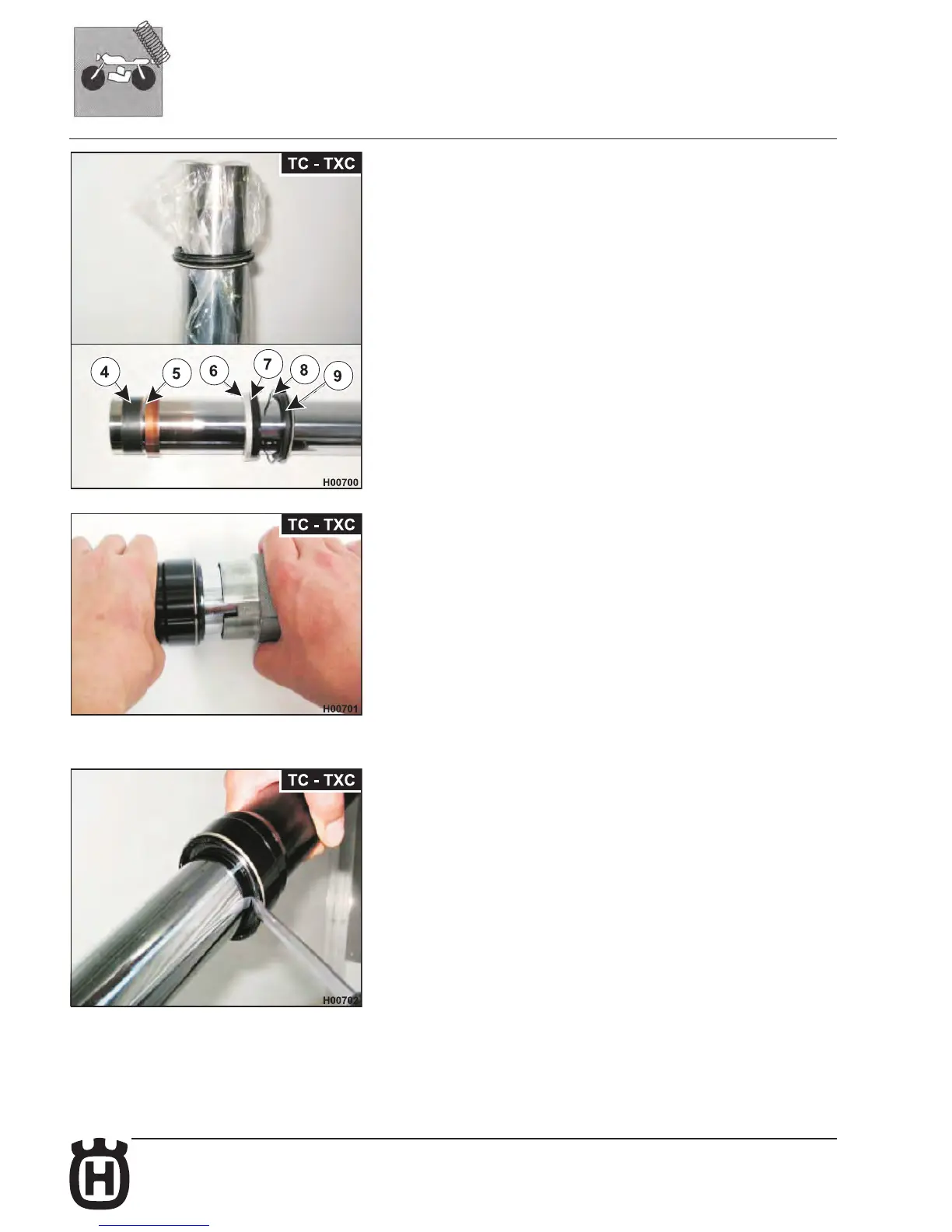

Assemble the seal rings and metallic parts on the inner tube.
Note 1: Smear grease on the edge of the seal ring.
Note 2: when assembling the seal ring on the inner tube, cover the end of the
tube with a plastic wrapping as illustrated.
This will protect the brim of the ring from damage.
Assemble the metallic bush and the washer on the outer tube by inserting them
into place using a guide.
Then assemble the oil seal on the outer tube and insert into place using a guide.
Make sure that the groove of the stop ring in the inner surface of the outer tube
is completely visible.
Assemble the stop ring.
Make sure that the stop ring is correctly in place inside the groove on the inner
surface of the outer tube.
