I.31
Part. N. 8000 H1344 (10-2009)
FRONT SUSPENSION

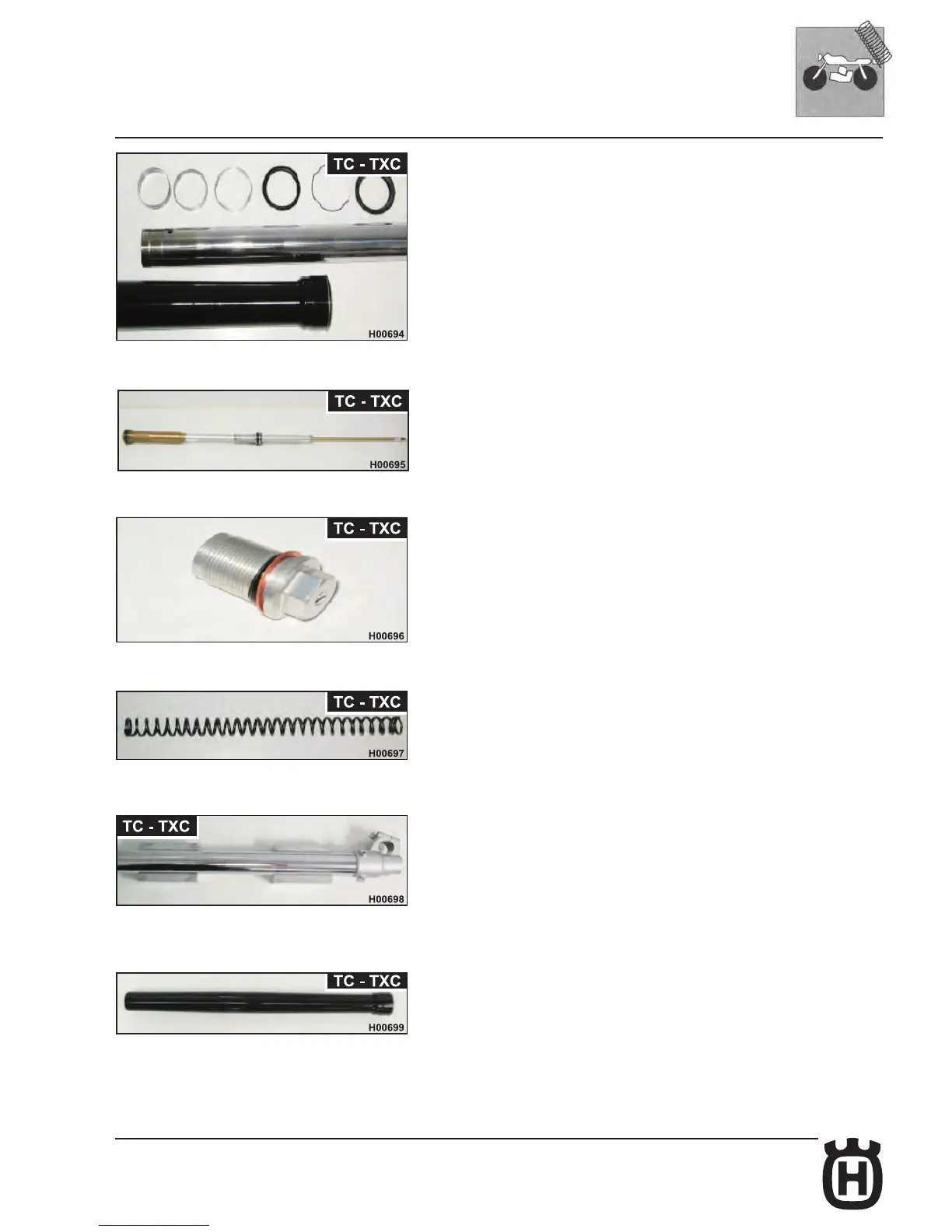

Remove the seal rings and the metallic rings mounted on the inner tube.
Do not re-use any metallic parts which are disassembled.
Replace with new parts.
Replace any damaged seal rings.
The washer and the stop rings can be re-used, if not damaged.
Check that the inner push rod is not distorted or damaged.
Replace if necessary.
Check the extension adjustment
Replace any damaged O-rings.
Replace the entire unit (Do not re-use).
Check the spring.
Replace if:
The outer diameter is damaged or excessively worn.
Check the inner tube.
Replace if it is distorted in any way.
(Do not repair or re-use a distorted tube).
If there are any surface defects on the tube, clean with sand paper.
If it is not possible to repair, replace the tube.
(Do not re-use an inner tube if it is marked or has any protuberances on the
outer surface).
Check the outer tube.
Replace the tube if it is distorted or if the gliding surface is damaged.
