FRONT SUSPENSION

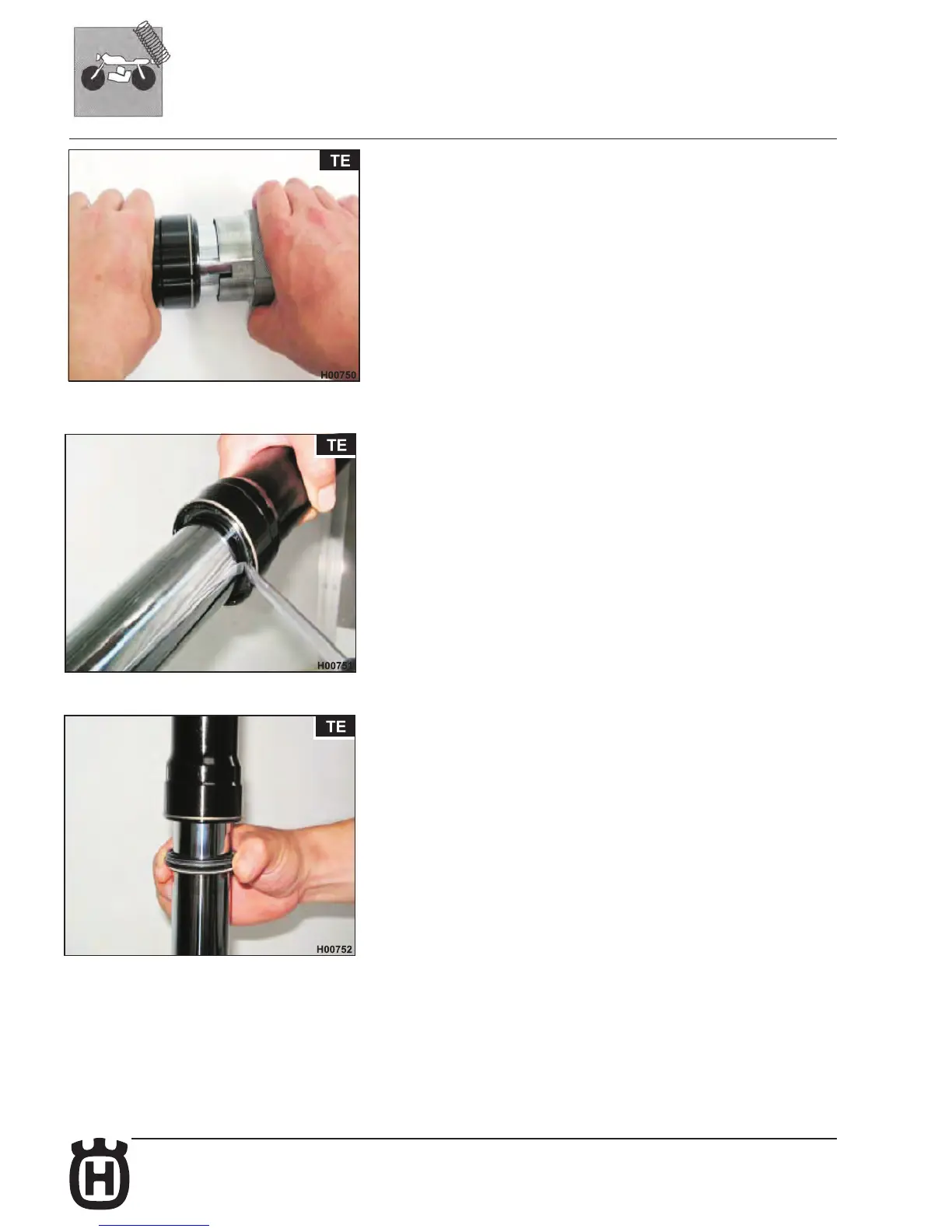

Assemble the metallic bush and the washer on the outer tube by inserting them
into place using a guide.
Then assemble the oil seal on the outer tube and insert into place using a guide.
Make sure that the groove of the stop ring in the inner surface of the outer tube
is completely visible.
Assemble the stop ring.
Make sure that the stop ring is correctly in place inside the groove on the inner
surface of the outer tube.
Assemble the dust seal on the outer tube.
Make sure there is no play between the dust seal and the outer tube.
