FRONT SUSPENSION

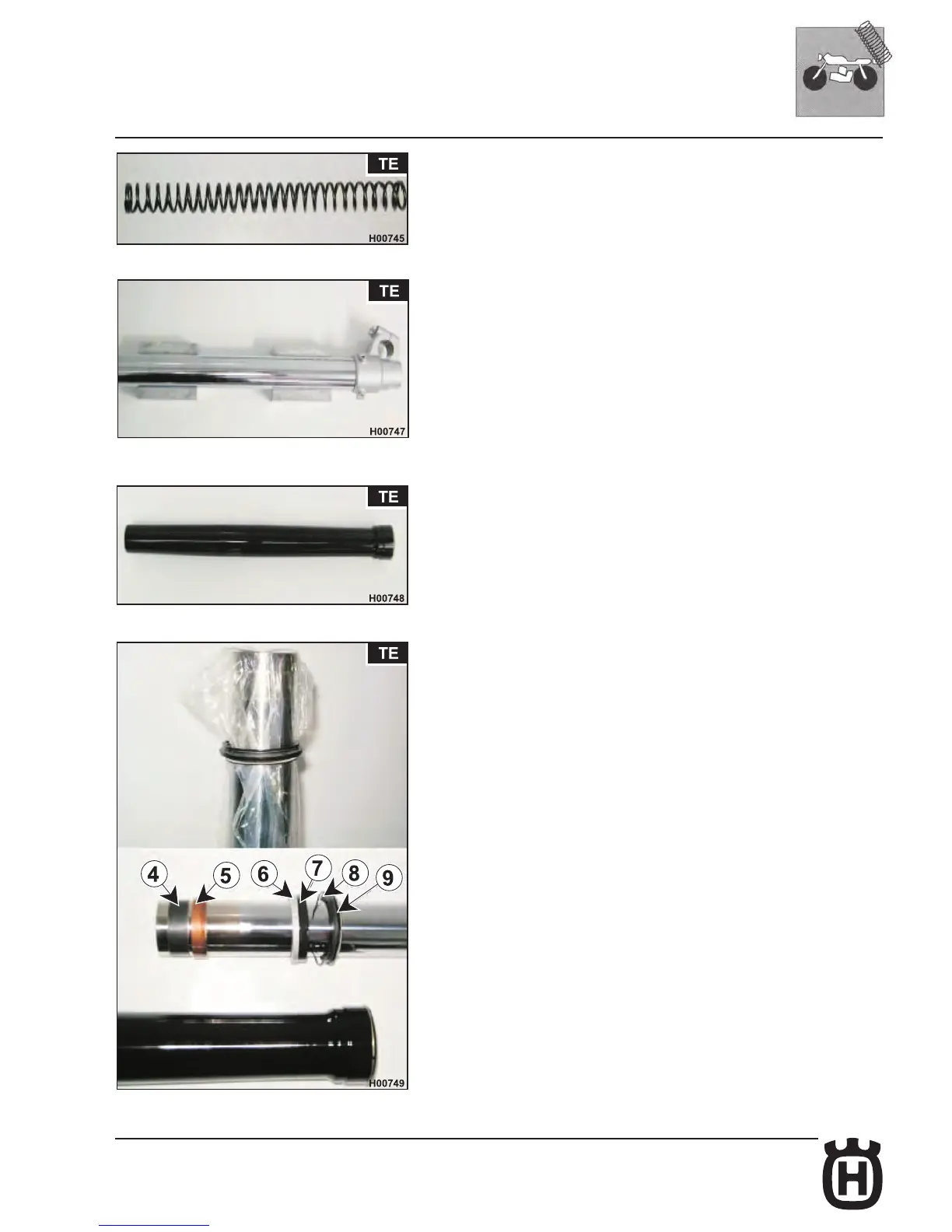

Check the spring.
Replace if:
The outer diameter is damaged or excessively worn.
Check the inner tube.
Replace if it is distorted in any way.
(Do not repair or re-use a distorted tube).
If there are any surface defects on the tube, clean with sand paper.
If it is not possible to repair, replace the tube.
(Do not re-use an inner tube if it is marked or has any protuberances on the
outer surface).
Check the outer tube.
Replace the tube if it is distorted or if the gliding surface is damaged.
Assemble the seal rings and metallic parts on the inner tube.
Note 1: smear grease on the edge of the seal ring.
Note 2: when assembling the seal ring on the inner tube, cover the end of the
tube with a plastic wrapping as illustrated.
This will protect the brim of the ring from damage.
