I.47
Part. N. 8000 H1344 (10-2009)
FRONT SUSPENSION
Move the outer tube up and down slowly to distribute the oil between the inner
and outer tubes.
Then move the piston rod slowly up and down to evenly distribute the oil in the
entire cartridge.
(N.B.: add oil if the level in the shock absorber unit is too low).

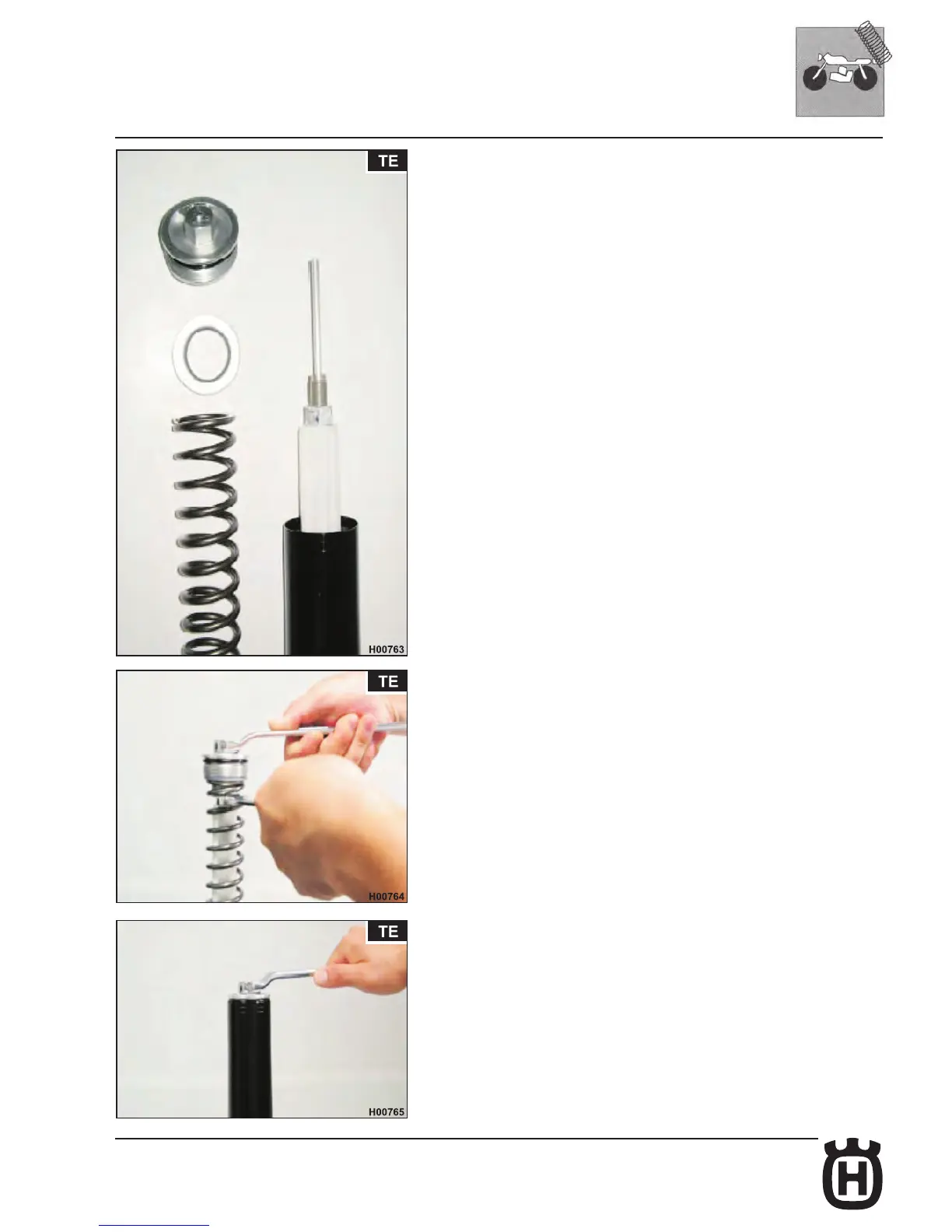

Insert the inner push rod into the piston rod.
Insert the spring, the spring guide cap and tighten the cap.
Tighten the cap and the nut to 28 Nm (20.6 ft/lb)
Tighten the cap on the outer tube to 30 Nm (22 ft/lb)
