ELECTRIC SYSTEM, DIGITAL INSTRUMENT

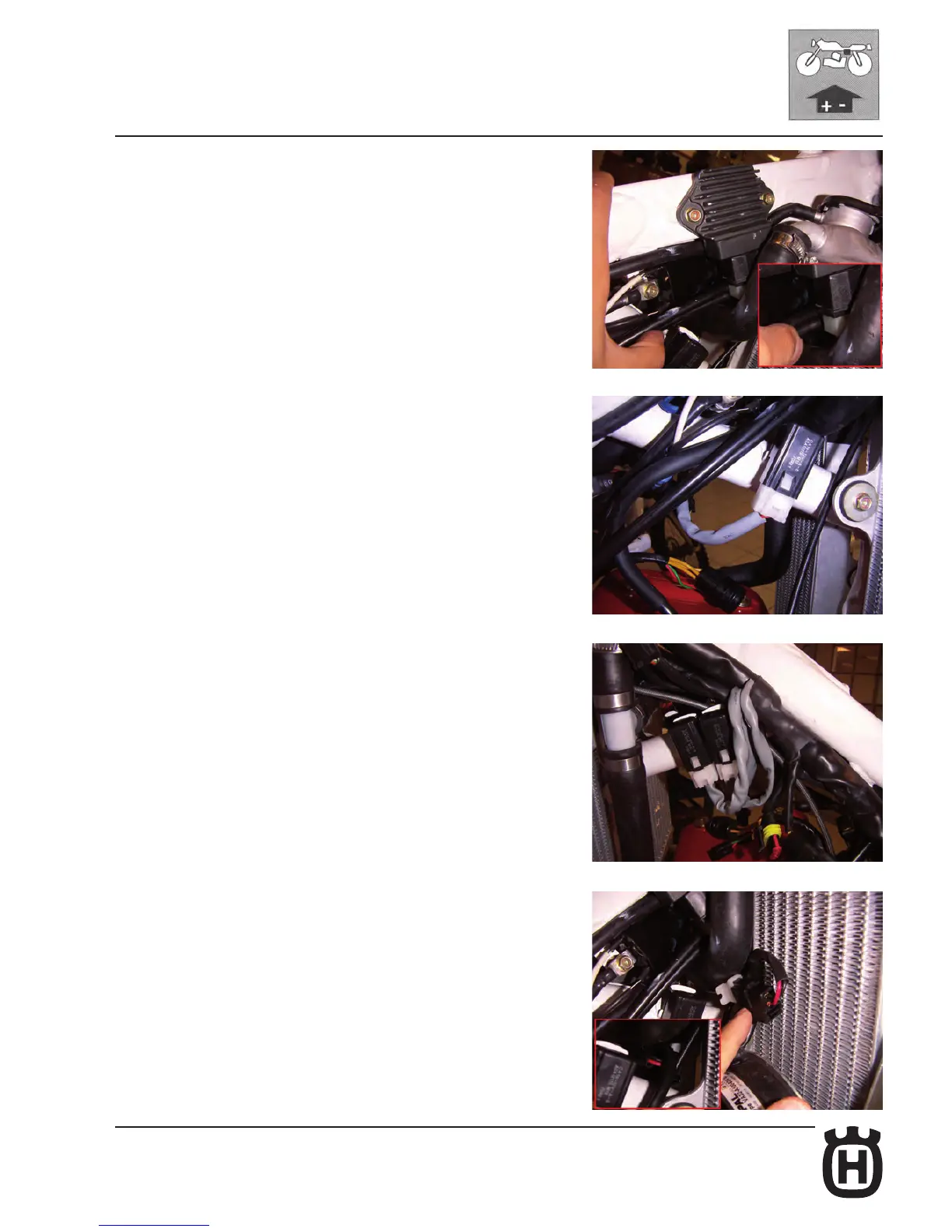

• Connection of cables to voltage regulator.
Connect the regulator connector. Be careful with the routes of the radiator
vent pipe and the gas pipes!
• Connecting relay
Connect the "DC" cable to the relay on the right side of the motorbike.
• Connecting relay
Connect indistinctively the "POW" and "FAN" cables to the relays on the left
side of the motorbike.
• Connecting the electric fan
Connect the electric fan connector as shown.
