ELECTRIC SYSTEM, DIGITAL INSTRUMENT

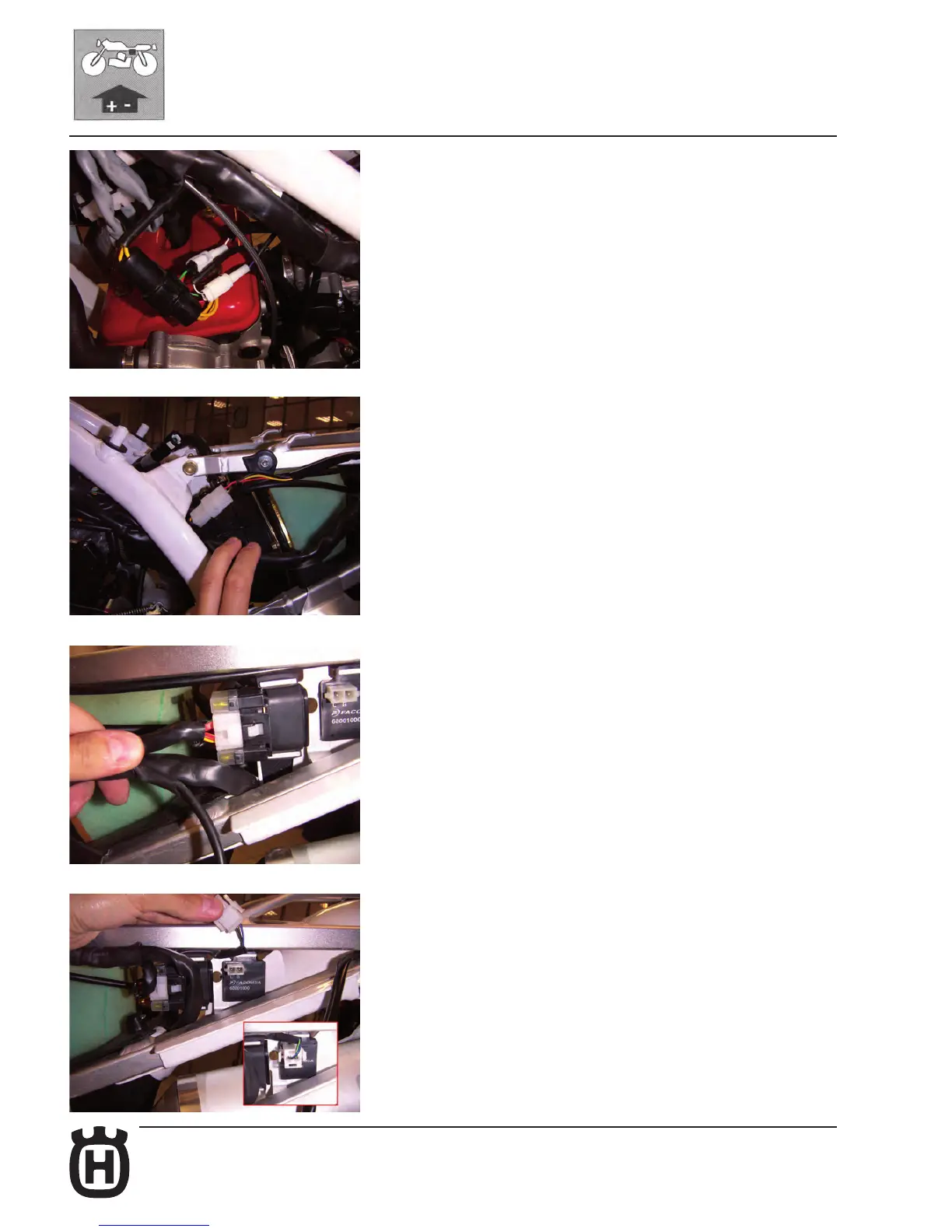

• Connection of starter and speed sensor cables.
Connection of starter and speed sensor cables.
• Threading of frame cables and back light connector.
Thread the back of the cables as shown in the gure. Connect the back light
connector.
• Connection of remote-control switch.
Connect the connector to the remote-control switch as shown.
• Connection of intermittent turn indicator.
Connect the connector to the intermittent turn indicator as shown.
