ELECTRIC SYSTEM, DIGITAL INSTRUMENT

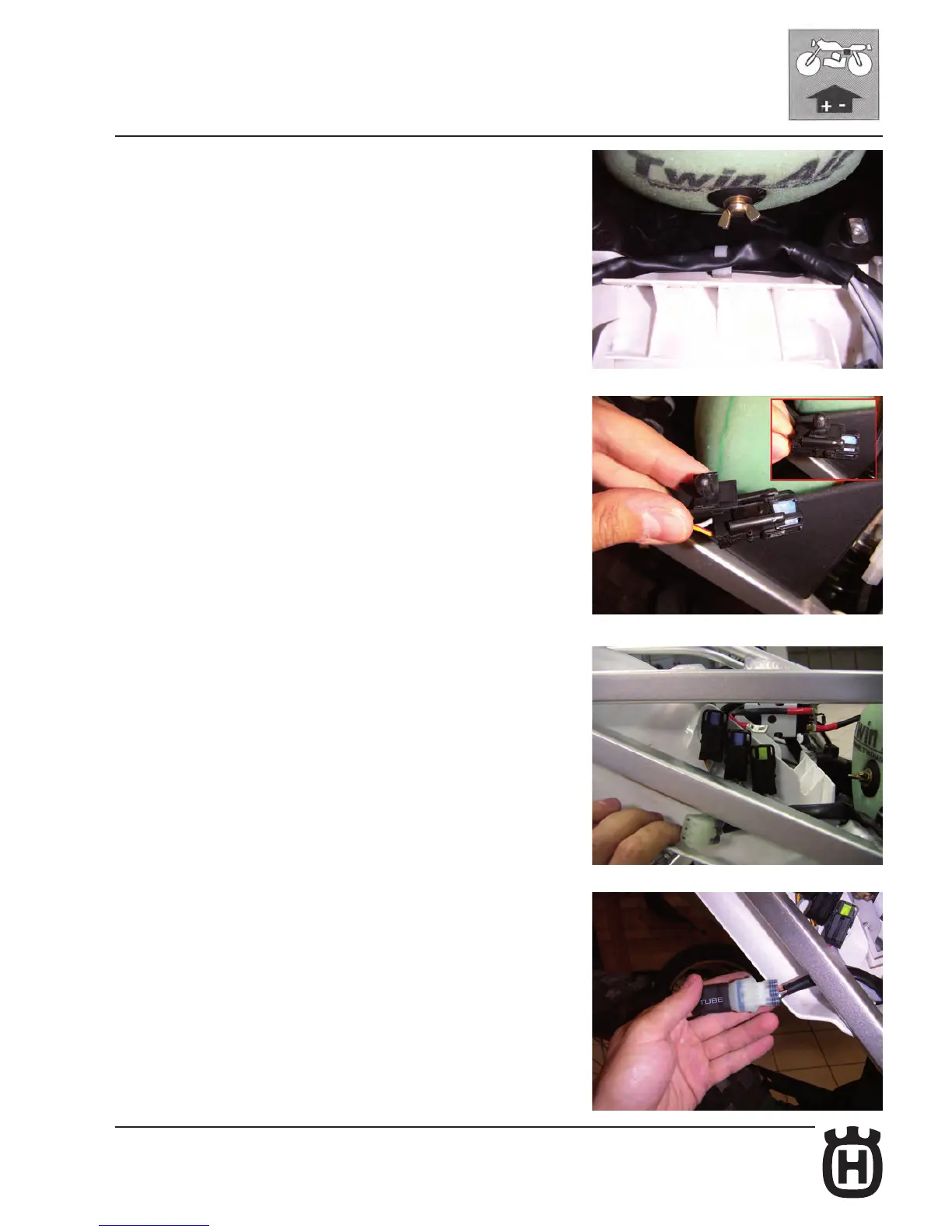

• Threading of cables to lter box.
Thread the cables as shown, fasten with the clip provided.
• Fastening of clip to fuse box.
Fit the clips provided to the three fuse boxes.
• Fastening of clip to fuse box.
Fit the three fuses in the pierced wall on the back fender.
• Connection of tilt sensor plug (TE only)
Connect the plug as shown in the gure.
