N.4 Part. N. 8000 H1344 (10-2009)
ENGINE COOLING SYSTEM
Cooling system
The cooling system is of the forced circulation type, with centrifugal pump located on the L.H. side of the cylinder head, and two coool-
ers with vertical ow.

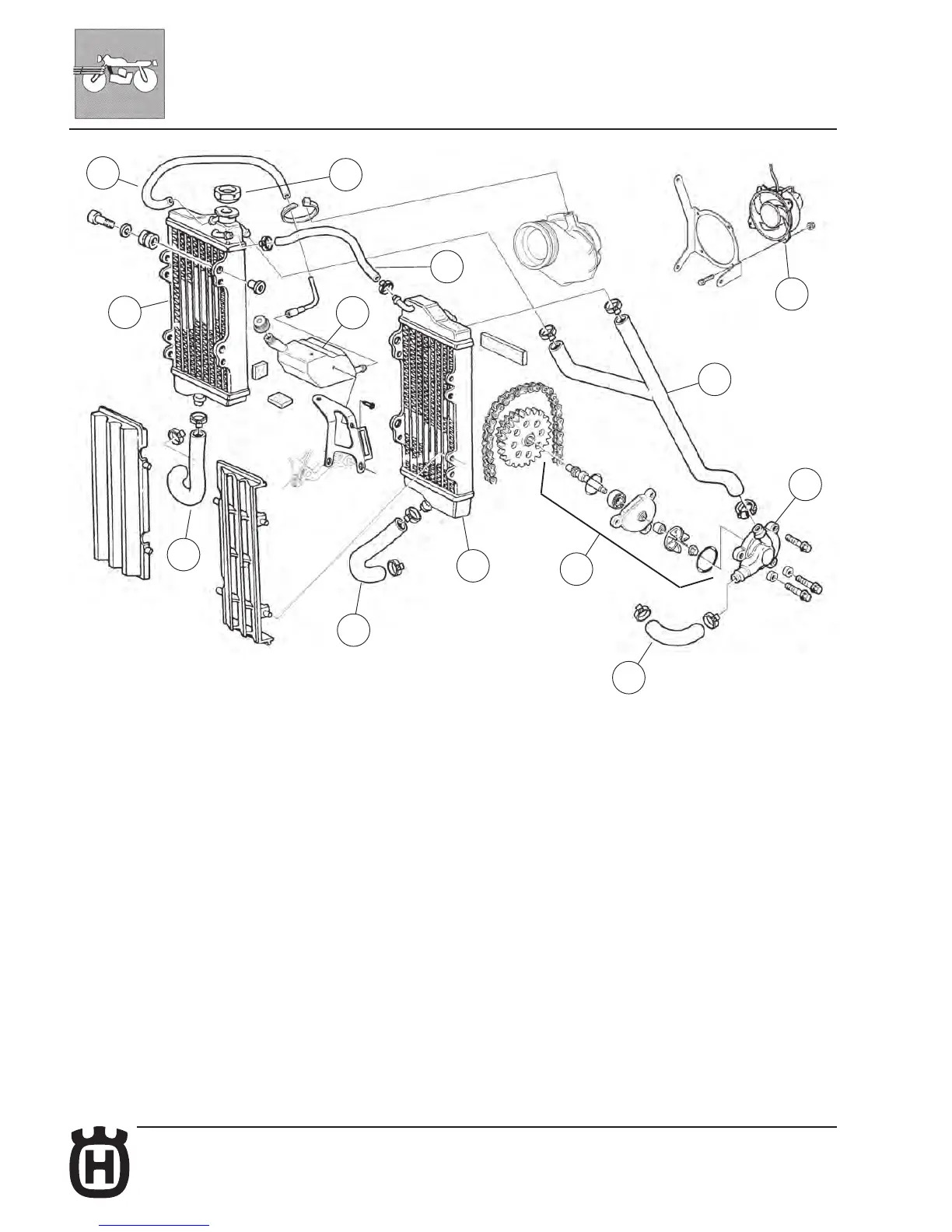

1- Radiator cap
2- R. H. Radiator
3- L. H. Radiator
4- Water pump hose - Radiator
5- Water pump
6- Water pump cover
7- Breather hose
8- Radiators hose
9- R.H. lower hose
10- L.H. lower hose
11- Expansion tank (TE- SMR)
12- Water pump hose - Cylinder head
13- Electric fan (TE- SMR)
7
2
1
9
10
11
8
3
4
13
6
5
12
To Next Page
