“KIT” ASSEMBLING INSTRUCTIONS
5- Hand guards kit (TE)

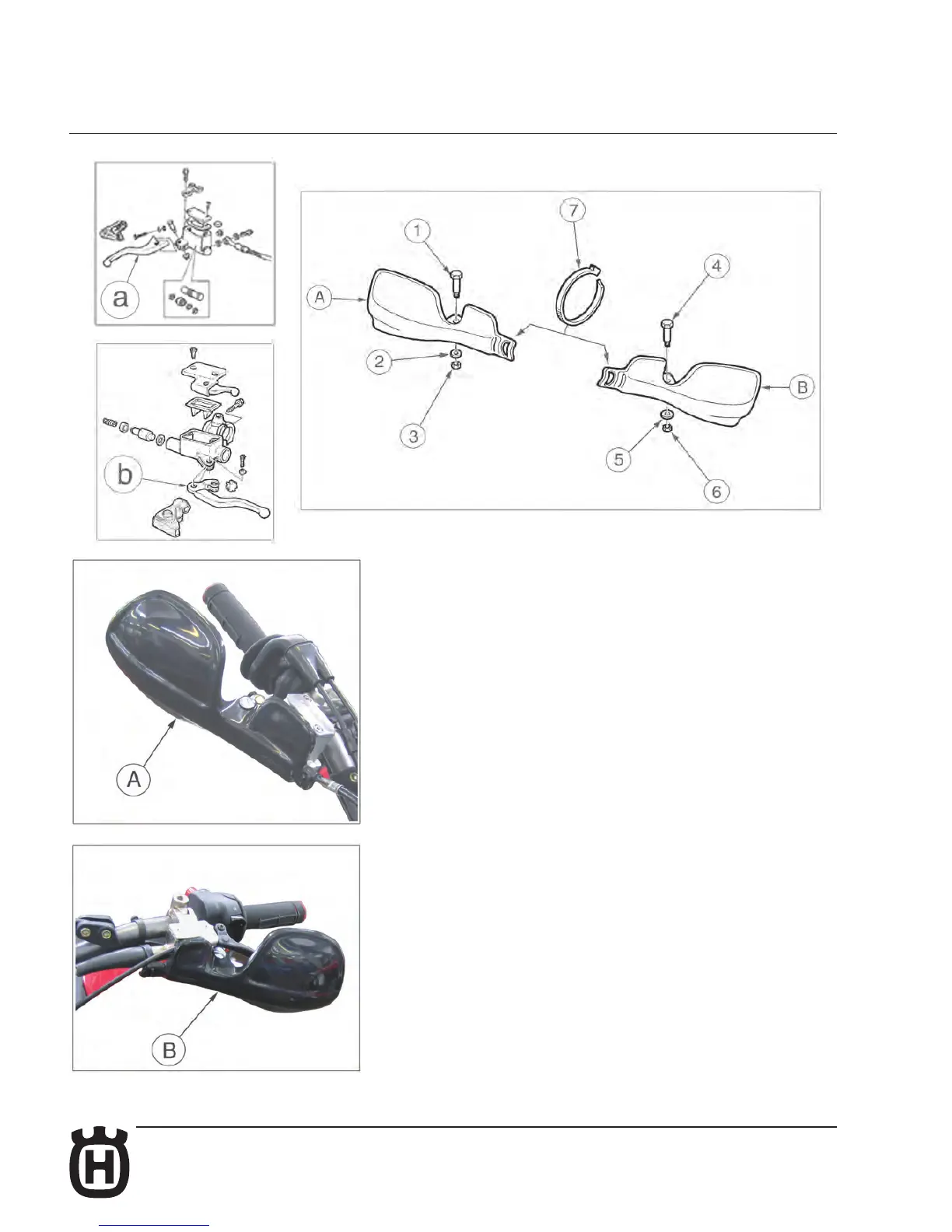

Remove the rubber guards and the fastening screws of the front brake (a) and
clutch (b) control levers. Place the right hand guard (A) then fasten it with screw
(1), washer (2) and nut (3). Place the left hand guard (B) then fasten it with screw
(4), washer (5) and nut (6). Fasten the hand guards with the straps (7).
