“KIT” ASSEMBLING INSTRUCTIONS

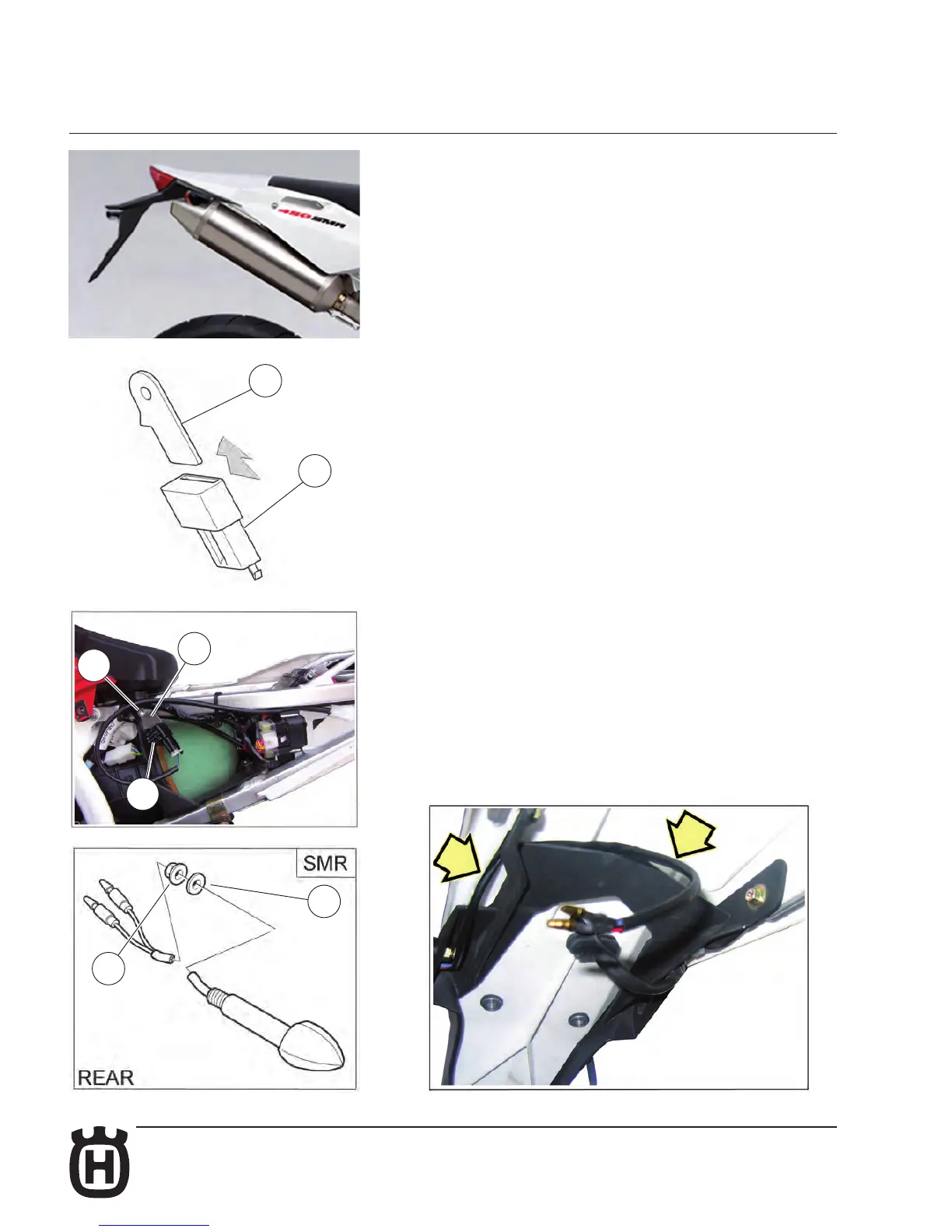

REAR TURN SIGNALS
Remove the saddle and left side panel as shown on page E.15-E16.
Assemble the turn signal asher (5) on its holding plate (6)then x them using
the air lter box side fastening screw.
Remove the rear tail light (see page M.30) then disconnect its cables from the
main wiring harness.
Fit the turn signal cables into the hole on license plate holder.
Fasten the turn signal using the nut M8 (3) and the spring washer (4).
Insert the turn signal cables between rear fender and license plate holder as
shown in the picture.
5
6
6
5
A
4
3
