P.5Part. N. 8000 H1344 (10-2009)
HYDRAULIC CONTROL CLUTCH
Bleeding of the hydraulic system
Proceed as follows:

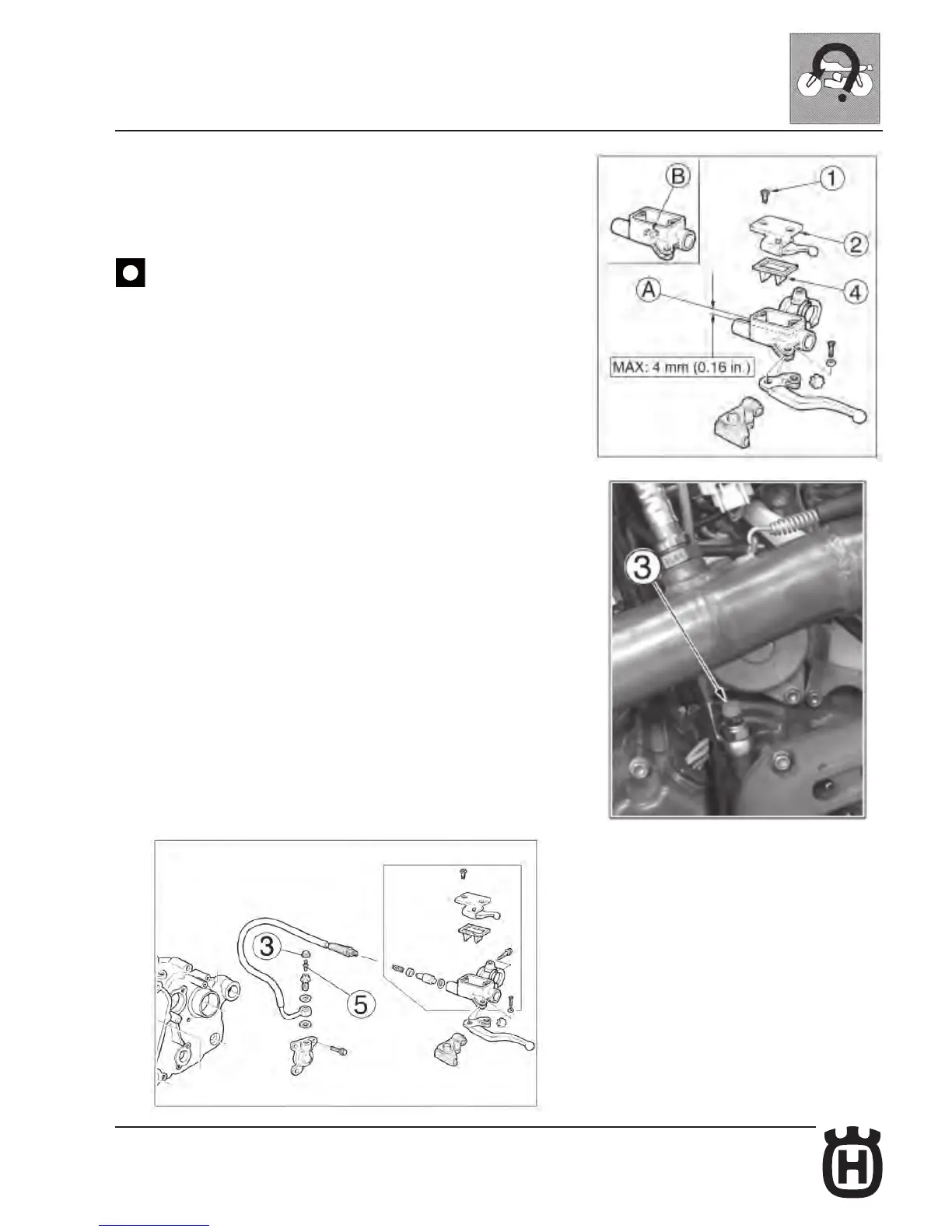

- remove screws (1), cap (2) and rubber pump diaphragm (4);
- remove the rubber cap (3) and the bleeding nipple (5);
- mount a syringe in the bleeding nipple hole, then rell with fresh uid (see
LUBRICATION TABLE on page A.9).
: NEVER use brake uid.
- rell until uid is discharged from the lower hole (B) on the pump body WITHOUT
BUBBLES. The uid level MUST NEVER BE below 4 mm from the top (A) of the
clutch pump body (see picture). Reassemble the removed parts.
