P.4 Part. N. 8000 H1344 (10-2009)

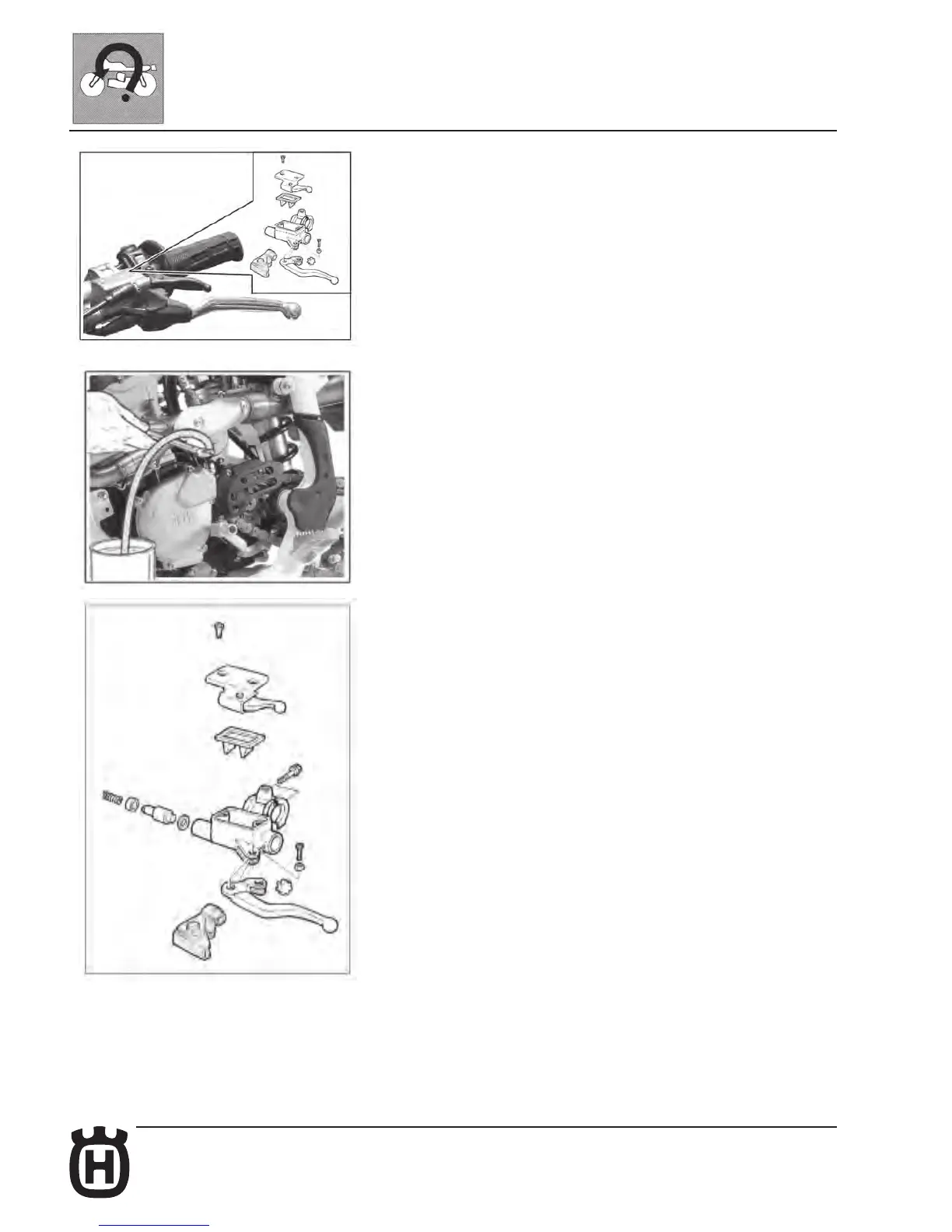

HYDRAULIC CONTROL CLUTCH
Discharge of hydraulic system uid
Connect a small plastic hose to the discharge valve and unscrew it by one or two
turns. Remove the reservoir cover and the diaphragm and act release control
lever until all uid is discharged.
Overhaul of the control pump for clutch release
Drain the system, detach the pump from the L.H. side of the handlebar and
disassemble the pump completely. Replace all gaskets, re-assemble the pump
and assemble it again on the handlebar. Connect the hose and pour new uid
from the tank; bleed the system as shown on page P.5.
