D.4 Part. N. 8000 H1344 (10-2009)
SETTINGS AND ADJUSTMENTS

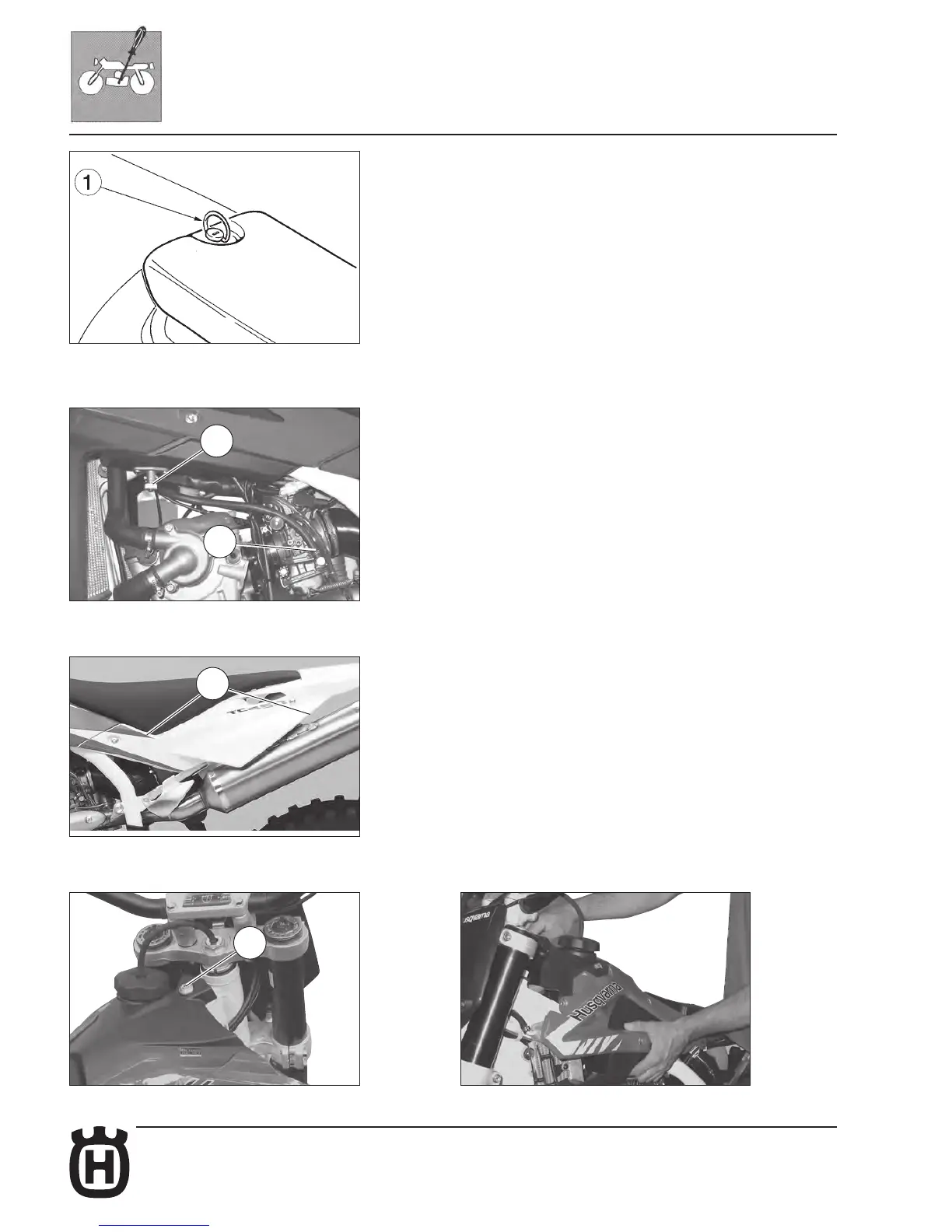

Adjusting the valve play
To check the valve clearance, proceed as follows , WITH COLD ENGINE:
First turn counterclockwise fastening rear pin (1) then remove the saddle.
HOW TO REMOVE THE TANK (TC, TXC)
Close the fuel tap (2) and loosen the strap (3) on the connecting pipe to the
carburettor, pull the pipe out of the carburettor.
Remove the screws (4) and the side panels.
Remove the locking screw (A) and pull out the tank with its conveyors.
2
4
3
A
