SETTINGS AND ADJUSTMENTS
Part. N. 8000 H1344 (10-2009) D.5

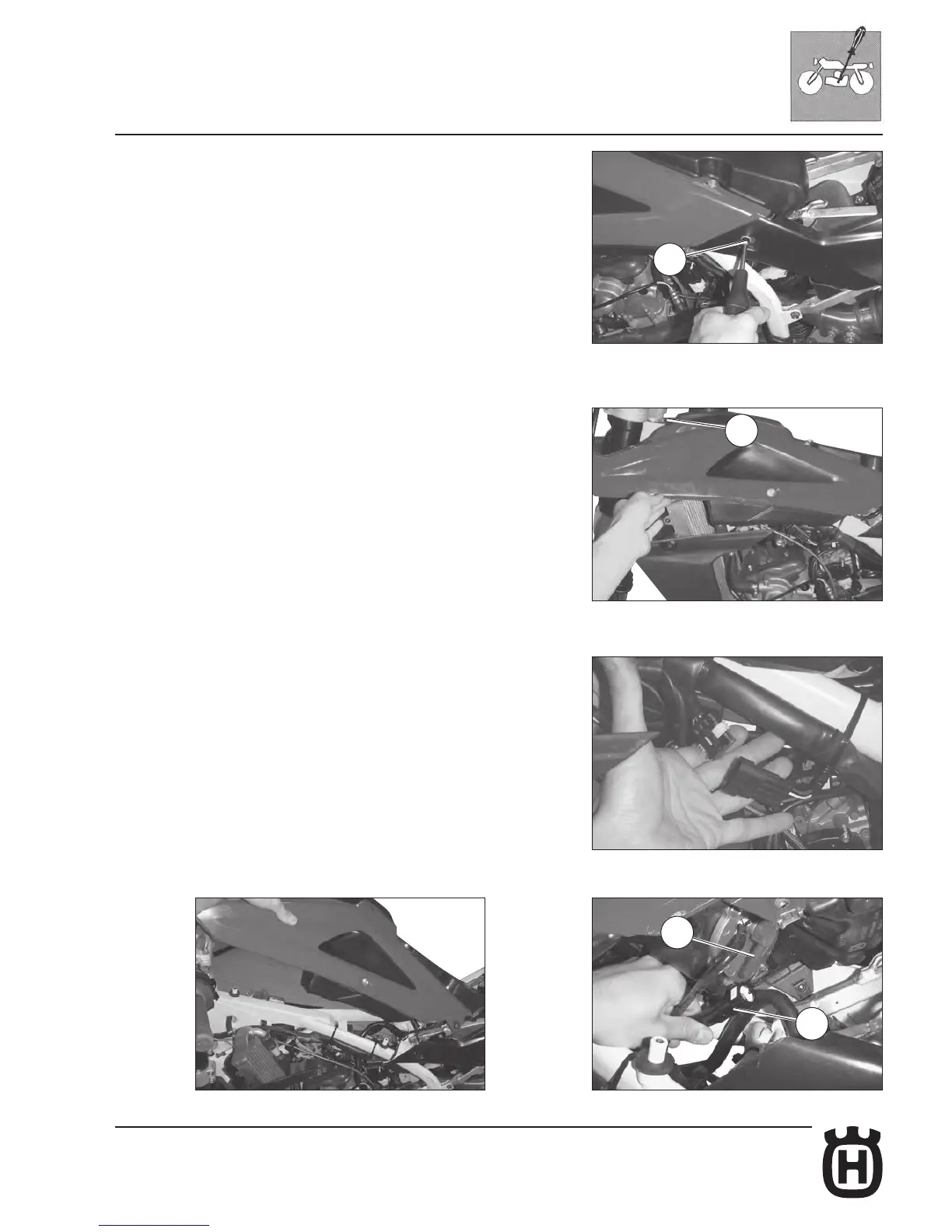

HOW TO REMOVE THE TANK (TE-SMR)
Remove the screws (1) and the side panels.
Remove the locking screw (A) of the tank.
Lift the tank, then disconnect the connector of the fuel pump from the main cabling.
Disconnect the feeding pump (B) from the outlet coupling (C) on the fuel pump
in the lower back section of the tank.
Pull out the tank with its conveyors.
1
A
C
B
