E.6 Part. N. 8000 H1344 (10-2009)
GENERAL OPERATIONS
TE-SMR

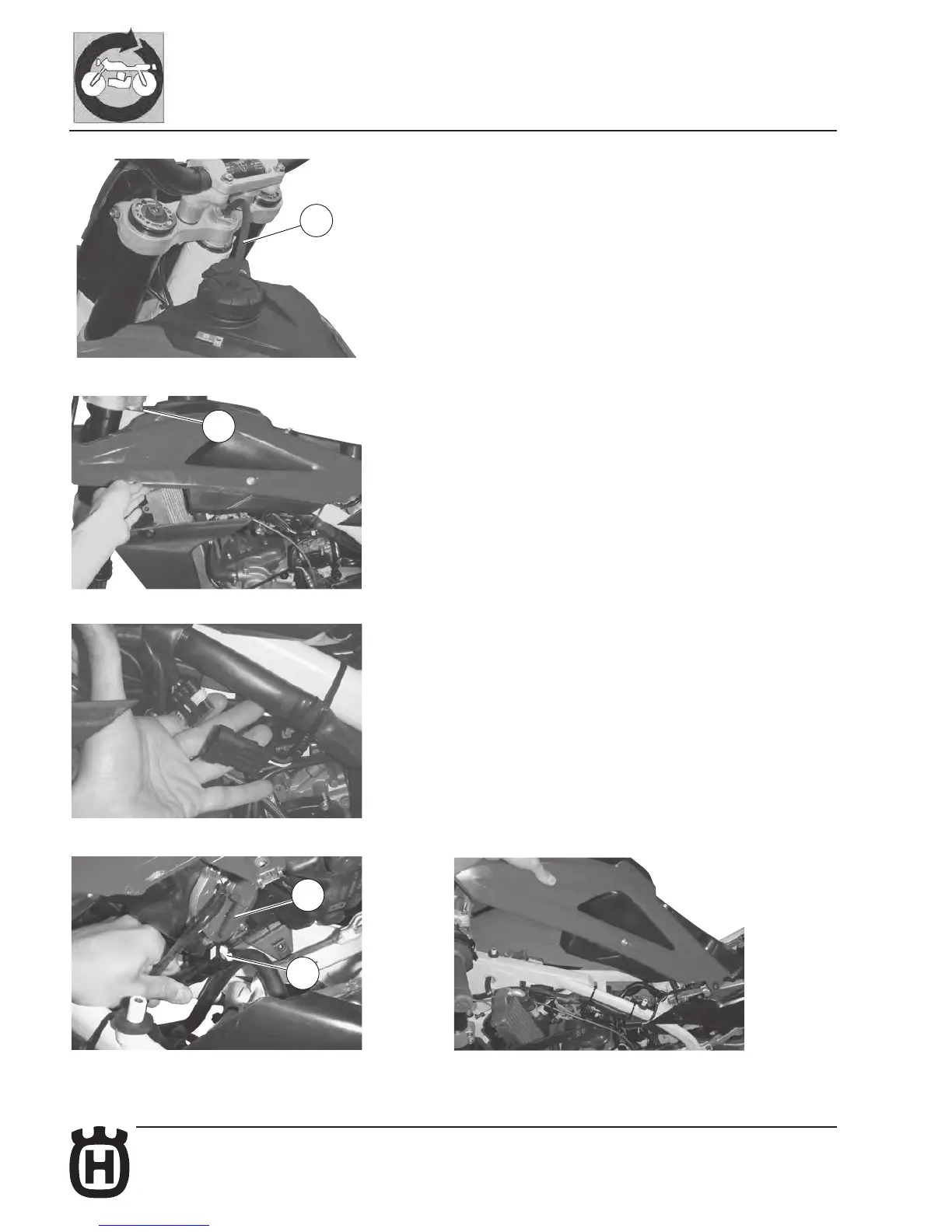

2) Remove the vent pipe (1) from the steering pin. Remove the fastening screw
(2) from the fuel tank by slightly pressing upward in the front area of conveyors
and release the conveyors from spoilers on radiators. Disconnect the fuel pump
connector from the main cable. Disconnect the feed line (B) from the outlet t-
ting (C) on the fuel pump on the lower rear part of the tank. Extract the tank with
the conveyors.
1
2
C
B
