E.8 Part. N. 8000 H1344 (10-2009)
GENERAL OPERATIONS

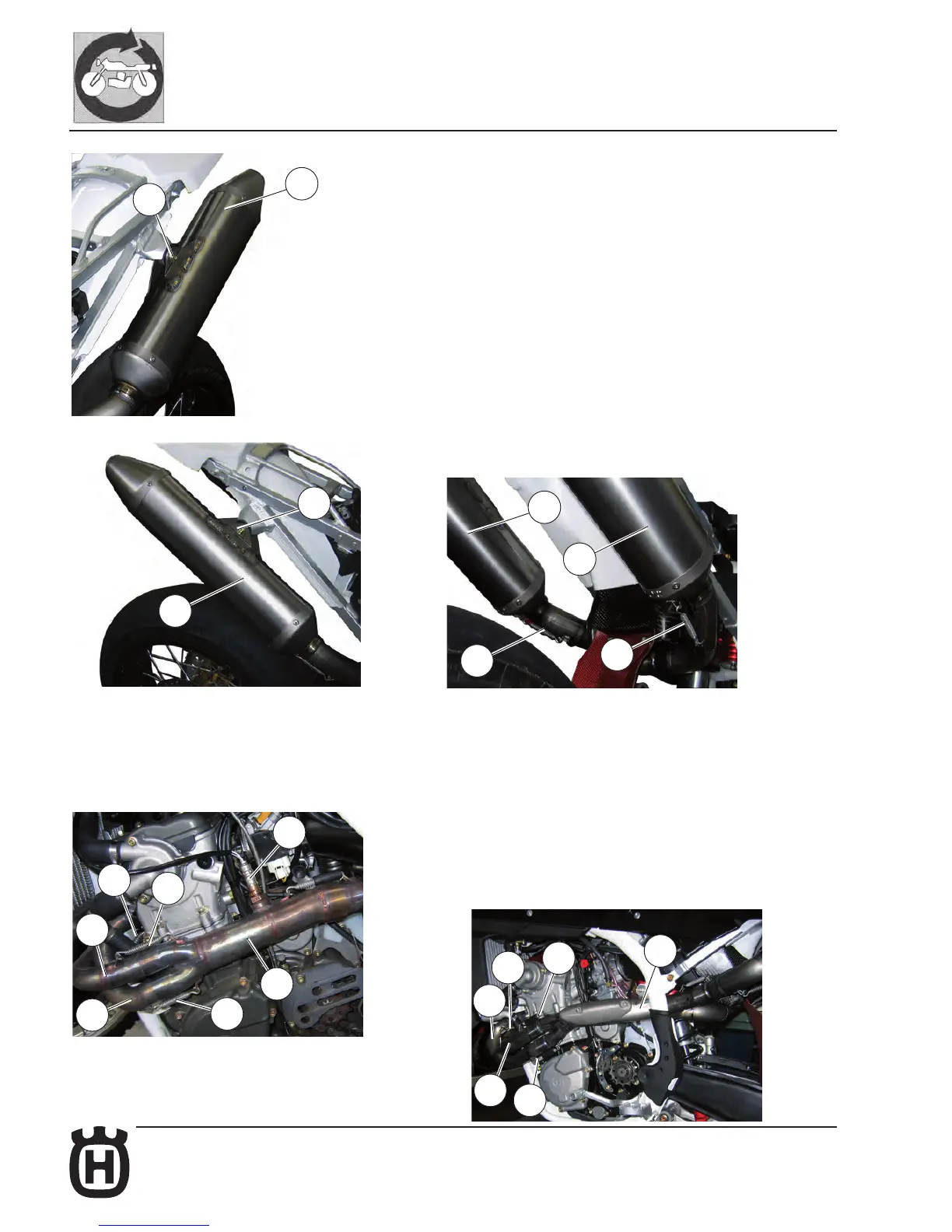

3) TE-SMR: remove the LAMBDA probe (A). Remove the intermediate pipe (8).
Remove the springs (9) and remove pipes (6) and (7) from the cylinder head by
gently hitting outward.
A
5
5
8
9
6
7
8
5
9
7
5
6
3) SMR: use an 8 mm T-wrench outside and a 10 mm T-wrench inside to remo-
ve the fastening screw (1) of silencers (3) and (4). Remove the spring (2) and
extract silencers (3) and (4). Remove the springs (5) that retain front pipes (6)
and (7) to intermediate pipe (8).
1
3
1
4
3
2
4
2
