GENERAL OPERATIONS

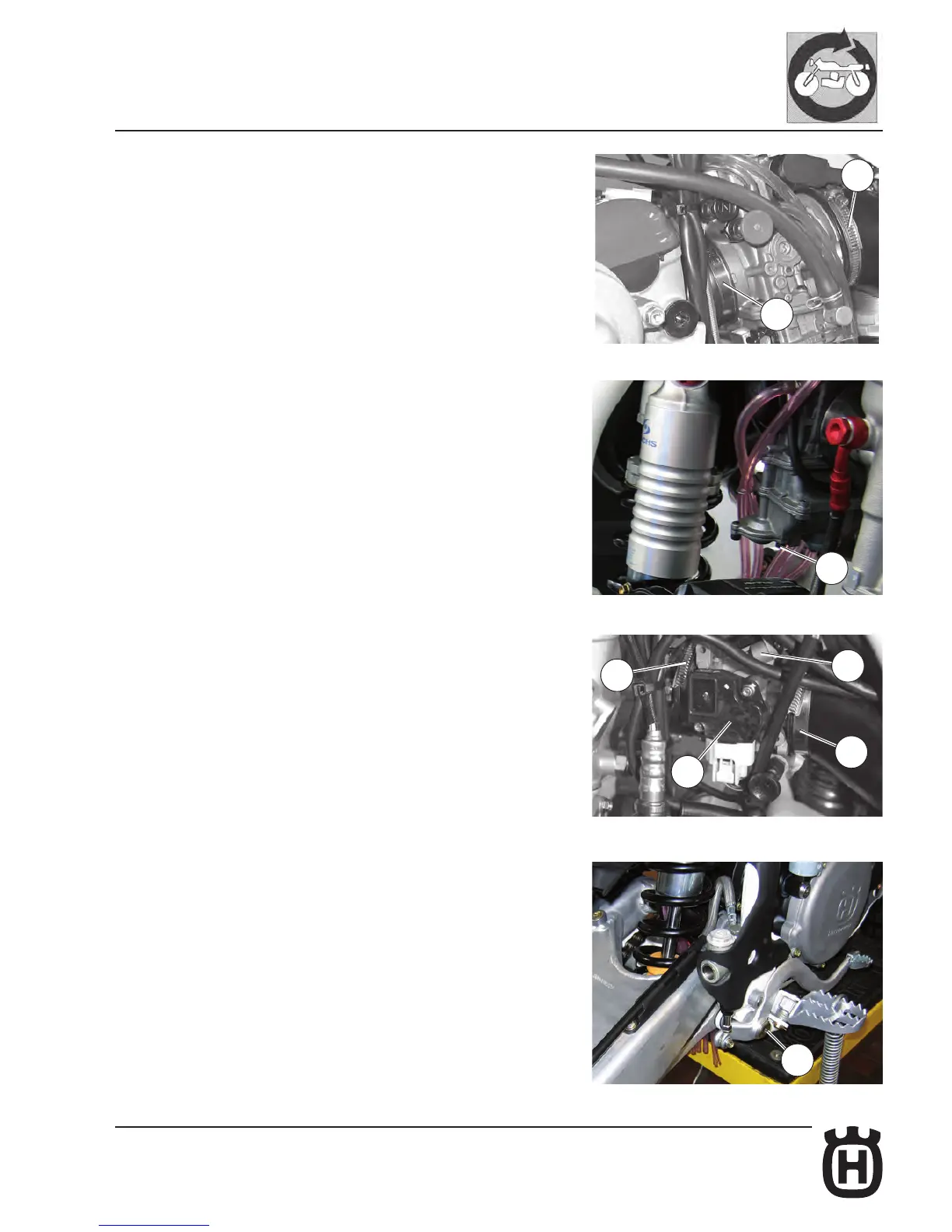

4) TC-TXC: Loosen the clamps (3) and (4) that fasten the carburetor to the intake
manifold and air lter box manifold. Pull back the carburetor to free it from the
intake manifold and extract the carburetor from the right side of the motorcycle.
Remove the carburetor oater chamber lower screw (5), the oater chamber
then eliminate the remaining gasoline.
4
Remove the fastening pin (8) and the rear brake pedal.
4) TE-SMR: loosen the left clamp (1) of the sleeve on the throttle body and the
front clamp (2) on the cylinder head. Disconnect the connector from the M.A.Q.S.
(6) on the throttle body of the main cable. Remove the throttle body (7); when
reassembly the throttle body, adjust the T.P.S. again (see chapter S).
1
2
3
7
6
5
8
