GENERAL OPERATIONS

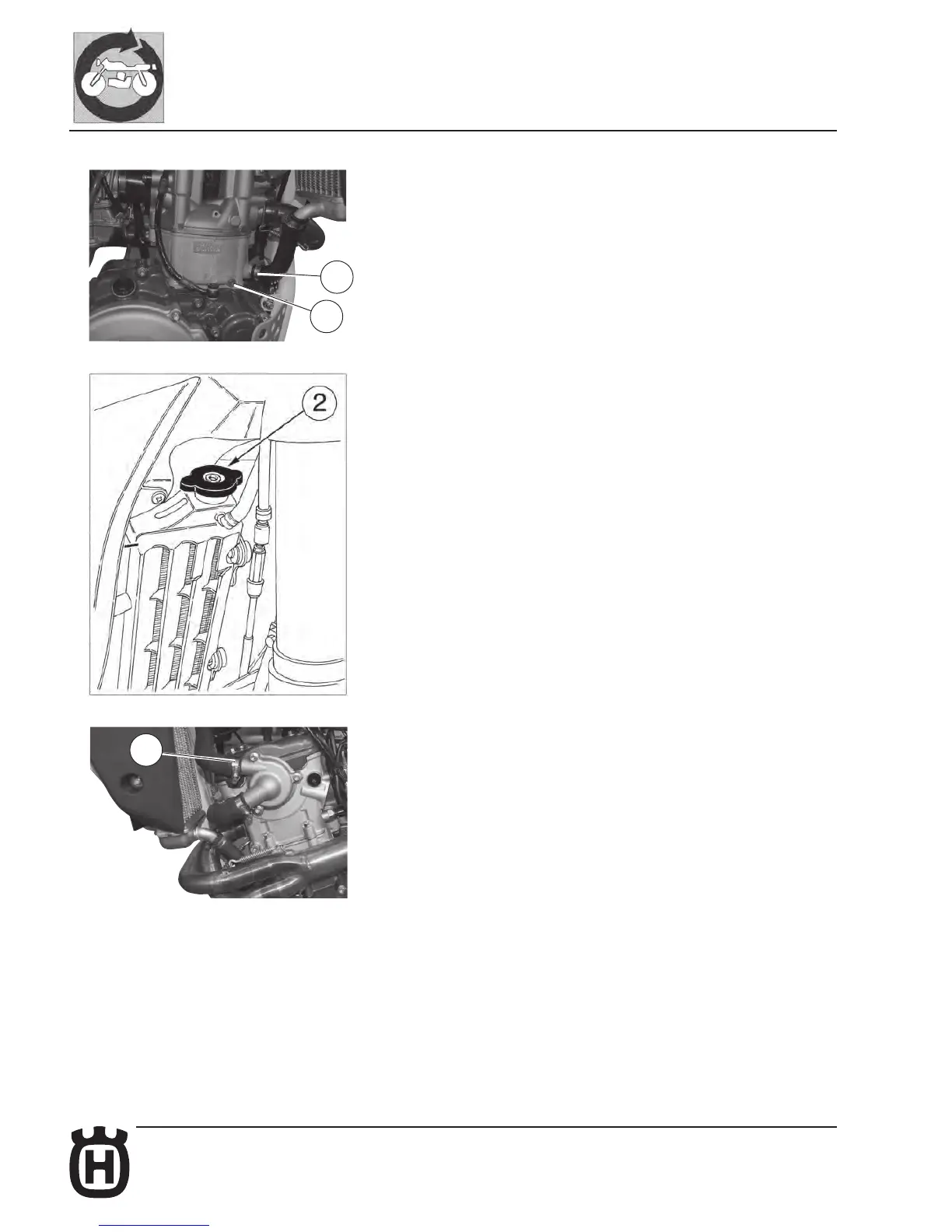

5) Place a vessel on the right side of the motorcycle, under the coolant draining
screw (1). Using a 8 mm wrench, FIRST remove the screw (1) then SLOWLY
open the R.H. radiator cap (2); slope the motorcycle on the right side to drain
the coolant easily in the vessel. Loosen lower clamps (3) of the hoses that con-
nect the radiators to the engine. Loosen the clamp (4) of the upper hose that
connects the L.H. radiator to the water pump.
