GENERAL OPERATIONS

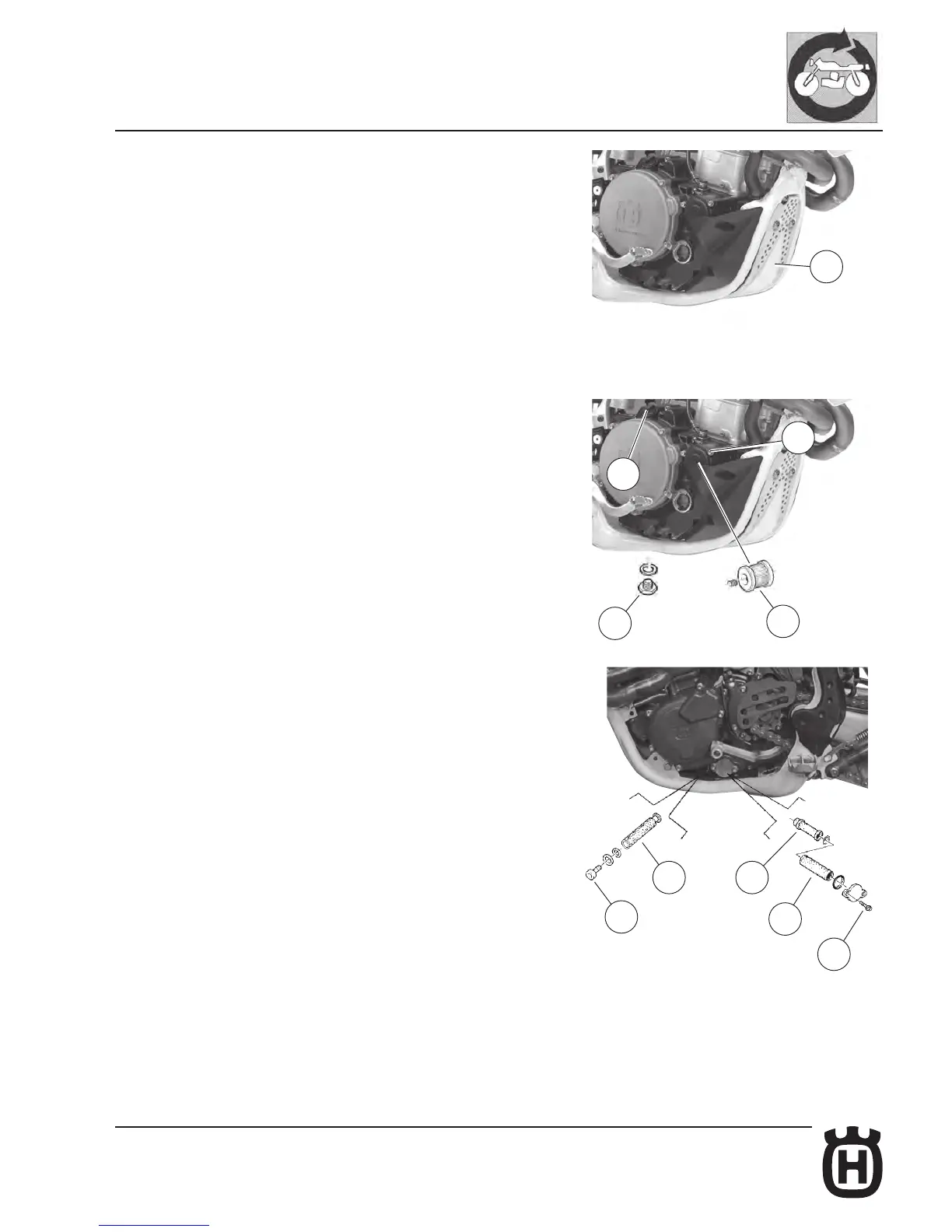

6) Even if not essential, it is advisable to remove the engine lower guard (A) then
place a vessel under the engine and remove the oil ller cap (1); using a 8 mm
Allen wrench, remove the oil draining plug (2) and eliminate the used oil; on
the L.H. side of the engine, using a 8 mm wrench, remove the rear lter cover
screws (3) and extract the steel lter (4) and the net lter (5).
Still operating on the L.H. side of the engine, using a 6 mm Allen wrench, unscrew
the plug (6) then remove the net lter (7) and the O-Ring; on the R.H. side of
the engine, unscrew the three fastening screws (8) and remove the cover and
the lter cartridge (9).
