GENERAL OPERATIONS

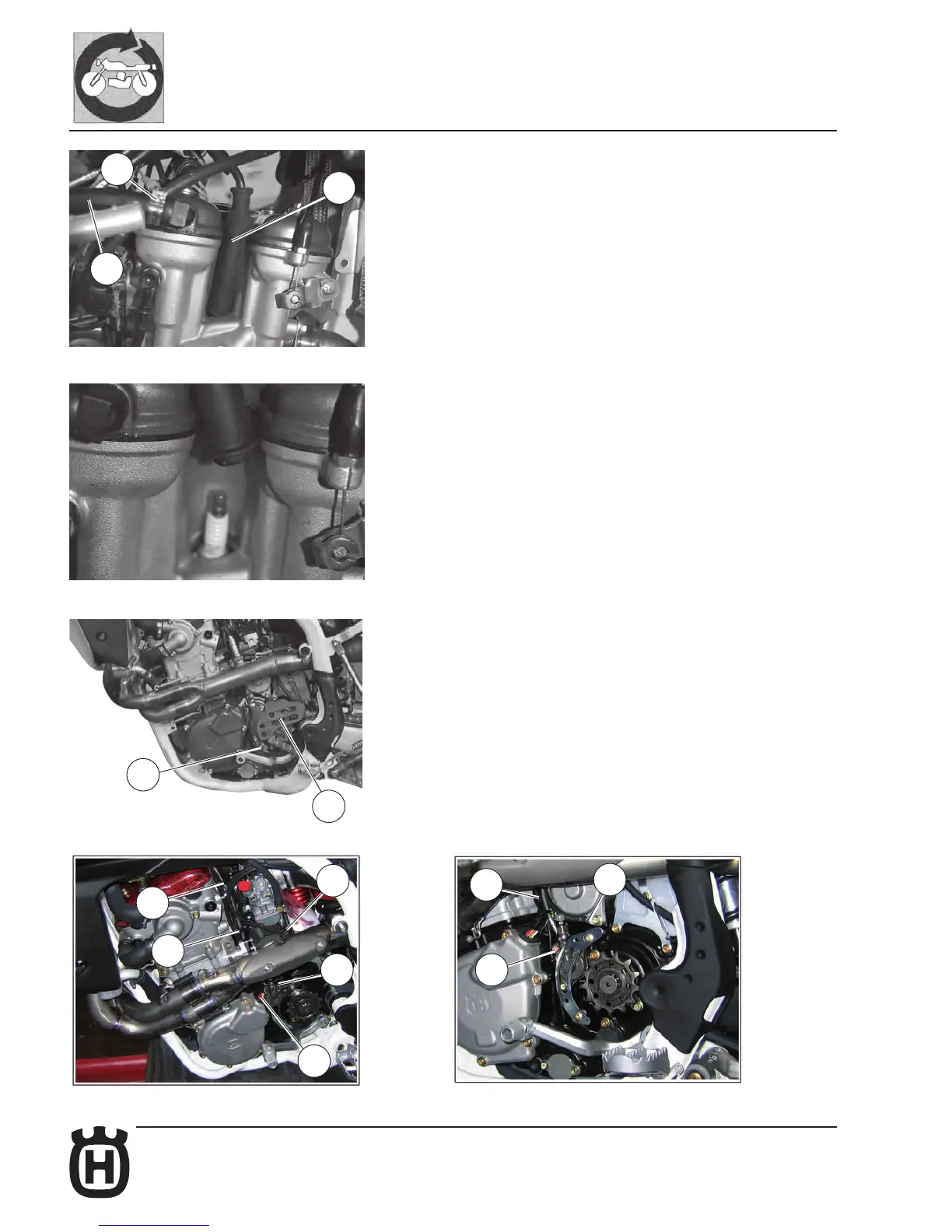

7) Remove the cap (1) from the spark plug. Remove the clamp (2) and detach the
hose (3) from the cylinder head cover. On the L.H. side, using a 6 mm wrench,
remove the rear transmission sprocket cover screws (4) and, using a 6 mm Allen
wrench, remove the screws (5) that fasten guide-chain plate.
Using a 8 mm wrench, remove the three screws (6) that fasten the clutch control
on the engine and eliminate the remaining uid from the hose.
TE-SMR-TXC: detach the electrical connections from the starting motor [use a
8 mm wrench to remove the ground cable (8) and a 10 mm wrench to remove
the nut under the rubber cap (9)].
Remove the clutch hose-alternator cable connecting clamps (10). Detach the
alternator connector (11) (alternator cable-main wiring harness).
