E.14 Part. N. 8000 H1344 (10-2009)
GENERAL OPERATIONS

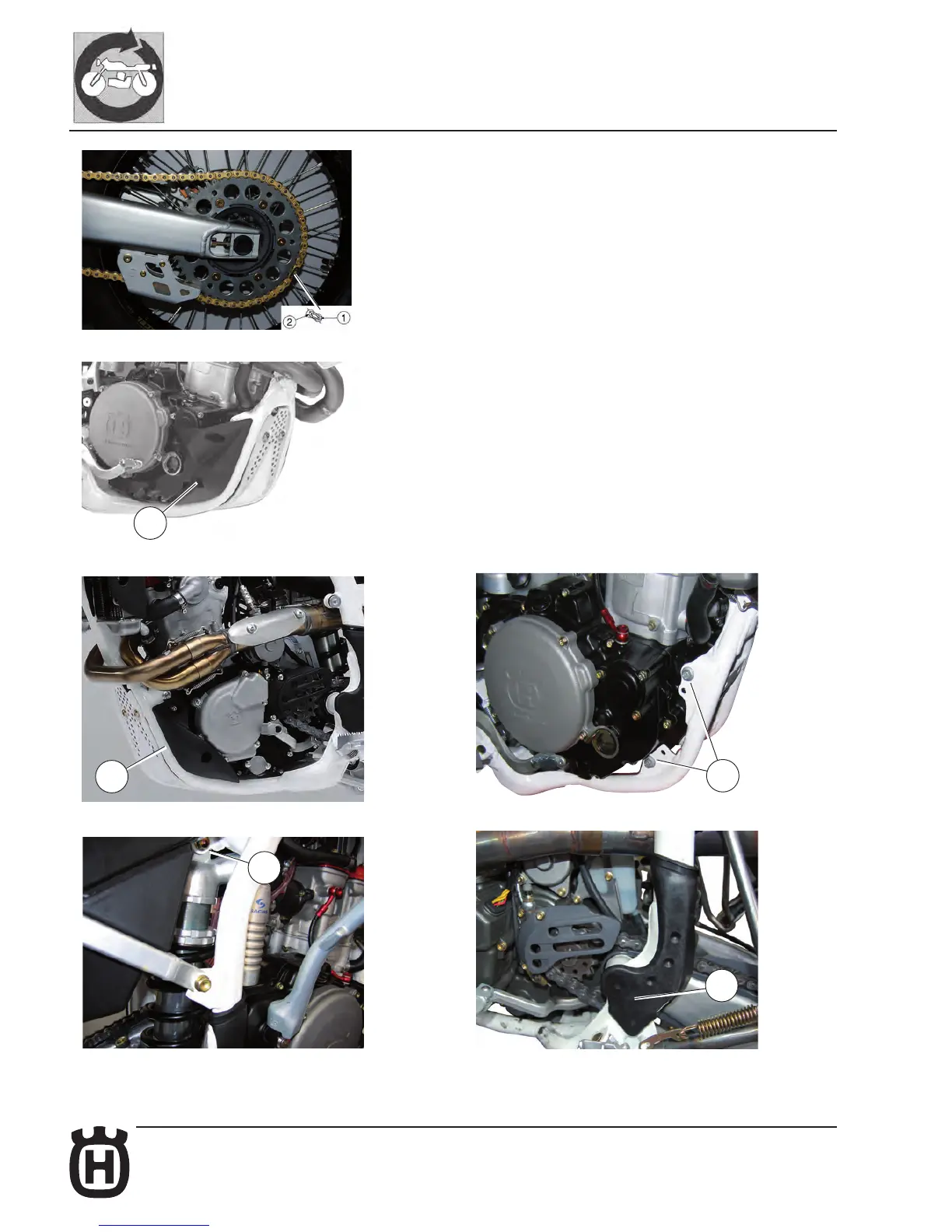

9) For the rear chain disassembling (both of the chain type without O-Rings
that with rings O-Rings), remove the clip (1), the master link (2) then the chain.
Using a 12 mm wrench on the L.H. side and a 10 mm wrench on the R.H. side,
remove the side protections (A) and (B) and then unscrew the fastening bolts
(3) (engine-frame).
Remove the upper clamp (5) of the shock absorber.
Remove the guards (4) by removing the clamp to the frame; use a 22 mm
wrench on the left side, unscrew the nut from the fork pin, extract the axle from
the R.H. side then pull back the rear swing arm in order to facilitate the engine
disassembly from the frame.
Lift the engine, slope it on the L.H. side and remove it from the motorcycle.
Place the engine on a turning stand in order to operate as shown on chapters
F-G-H.
4
5
3
A
B
