4. Operation
4.1 Basic Operation
4-4
ME0342-4B
Operation Ready・・・・Resistration of Position Data (Example of Registration of IA-OS)
• Procedure 1: Turn ON the controller.
• Procedure 2: Start up the IA-OSand establish the connection to the controller.
• Procedure 3: Turn the servo ON, and have a home-return operation.
Select a controller to
connect with and press
Start communication.
Press Yes
(Safety circuit confirmation)
Startup IA-OS
Select the communication
system (online)
Select Teaching
Mode and Enable,
and then press OK
Select Position Data Edit
Position Data in the menu
1) Press Switchover in Servo-on Status
2) Servo lamp turns on
3) Execute home-return operation
4) Home-return complete lamp turns on
(after actuator is stopped)
Press TEST Test Run
Or select Test Run
from Display Switch
4.1 Basic Operation
ME0342-4B 4-5

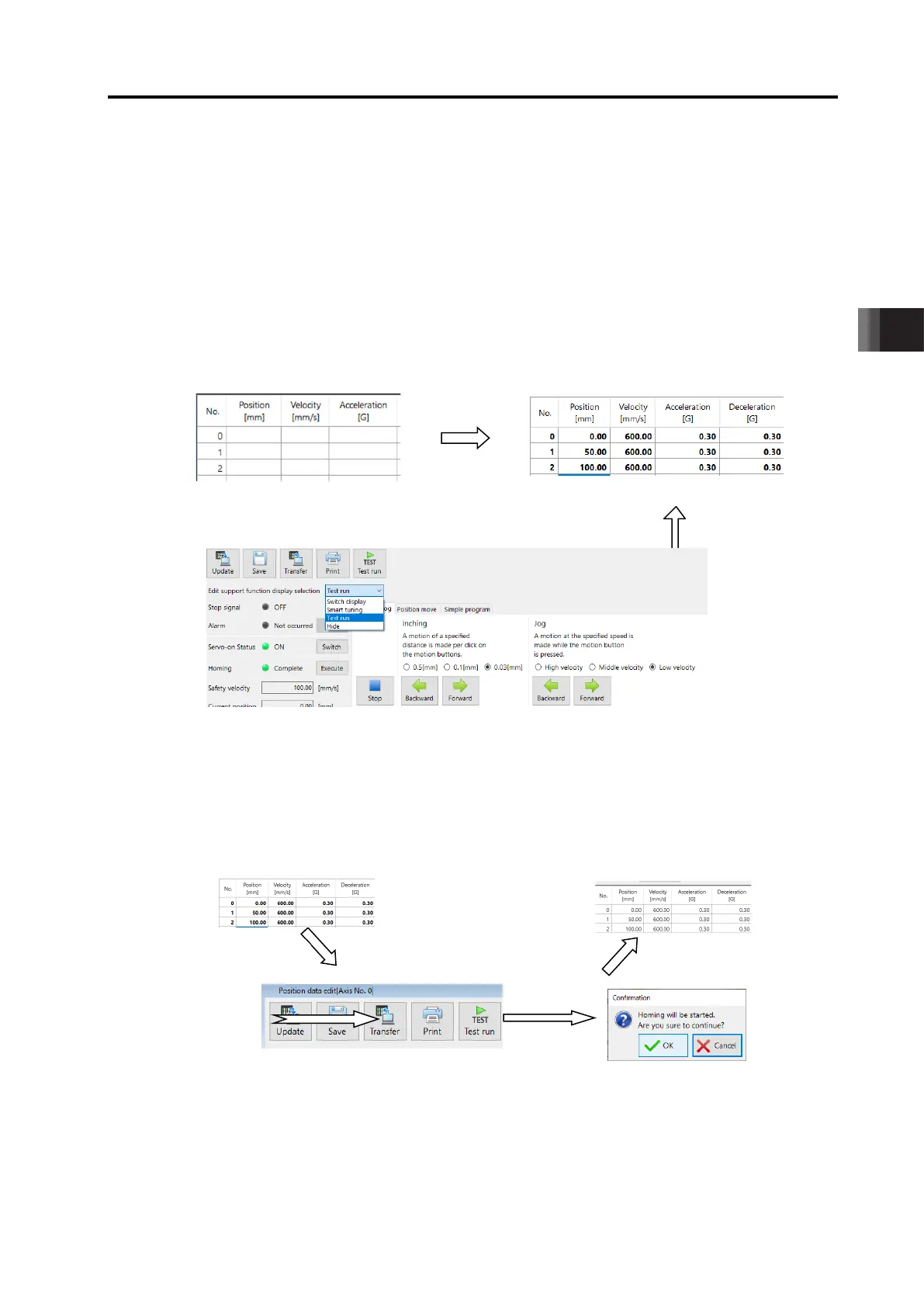

• Procedure 4 : Define the destination (position) of the slider or rod of the actuator.
The destination can be defined by using the following two methods:
1) Read out the coordinate values from such a tool as CAD.
2) Drive the slider or rod with the JOG operation to the destination,
and set the position data directly.
• Procedure 5 : Type the destination in the column of Position in Position Table. Writing the
position should allow the automatic input of the setting as parameters in the
velocity and acceleration/deceleration columns.
Set position directly with JOG operation
Press TEST Test Run or select Test Runin the edit support feature display
select to move the slider or rod with inching/jog operation.
Procedure 6 : Transfer the information such as Position that is written in Position Table to the
controller.
In black bold character
before data transfer
Turn to black after
transfer complete
Press
Transfer
Press the Yes
