IAI PCON-CB series User Manual

1. Controller Overview
1.4 Starting Procedures
1-11 ME0342-4B
Step3 Wiring
[Positioner Operation] Refer to [3.1.3] and [3.3]
[Pulse Train Control] Refer to [3.2.3] and [3.3]
[Field Network Specification]
Refer to [3.3] and [4.4]
Step4 Operation preparation
 Supplying Power Check the condition of wiring and turn the power on.
 Check the system of operation. The operation mode and way to control shall be different depending on the controller
type that you have purchased.
☆
☆
What is Field Network Control
Field network communication is used instead of connected with and controlled by PIO.
Without using position data, operation can also be made by inputting numbers directly.
Connection cable differs depending
on actuator.
* Refer to [Chapter 3 Wiring] for
wiring layout as the
signals/features differ for each
PIO pattern (selected in
Parameter No. 25) in PIO.
* Perform wiring referring to [4.4
Operation of Field Network
Type] for the field network type.

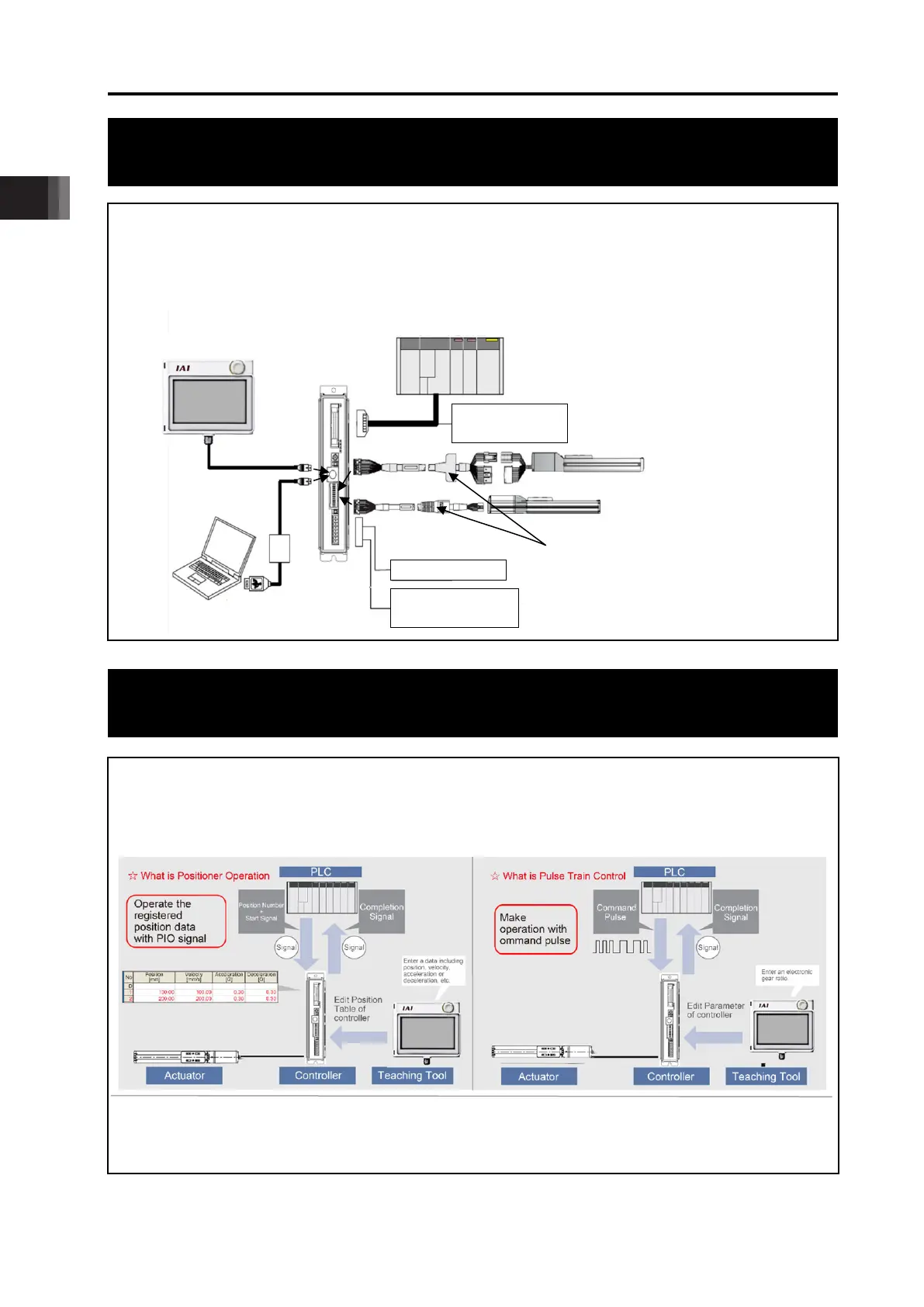

Example for Basic Wiring
Touch Panel Teaching
(Sold
separately)
Host System
(PLC, etc…Please prepare separately)
Power Source I/O Control
(24V DC…Please prepare
separately)
Emergency Stop Circuit
Control/Driving Power Supply
(24V DC…Please prepare
separately)
PC Software
(Sold separately)
