9. Appendix
9.3 Example of Basic Positioning Sequence (PIO pattern 0 to 3)
9-26 ME0342-4B
[8] Position 1 Operation Circuit
The main circuit is designed to process and manage signals “start” moving” positioning
complete” to move the actuator to position No.1.
Complement
Circuit 10 is designed to start positioning to position No.1 again after positioning to
position No.3 is completed.
If the “Operation” lamp goes off, the operation circuit is reset entirely. When the Stop
button is pushed, the actuator will stop at completion of the operation being executed.
At emergency stop, the actuator is stopped immediately (which is the function of
Controller).
9.3 Example of Basic Positioning Sequence (PIO pattern 0 to 3)
ME0342-4B 9-27

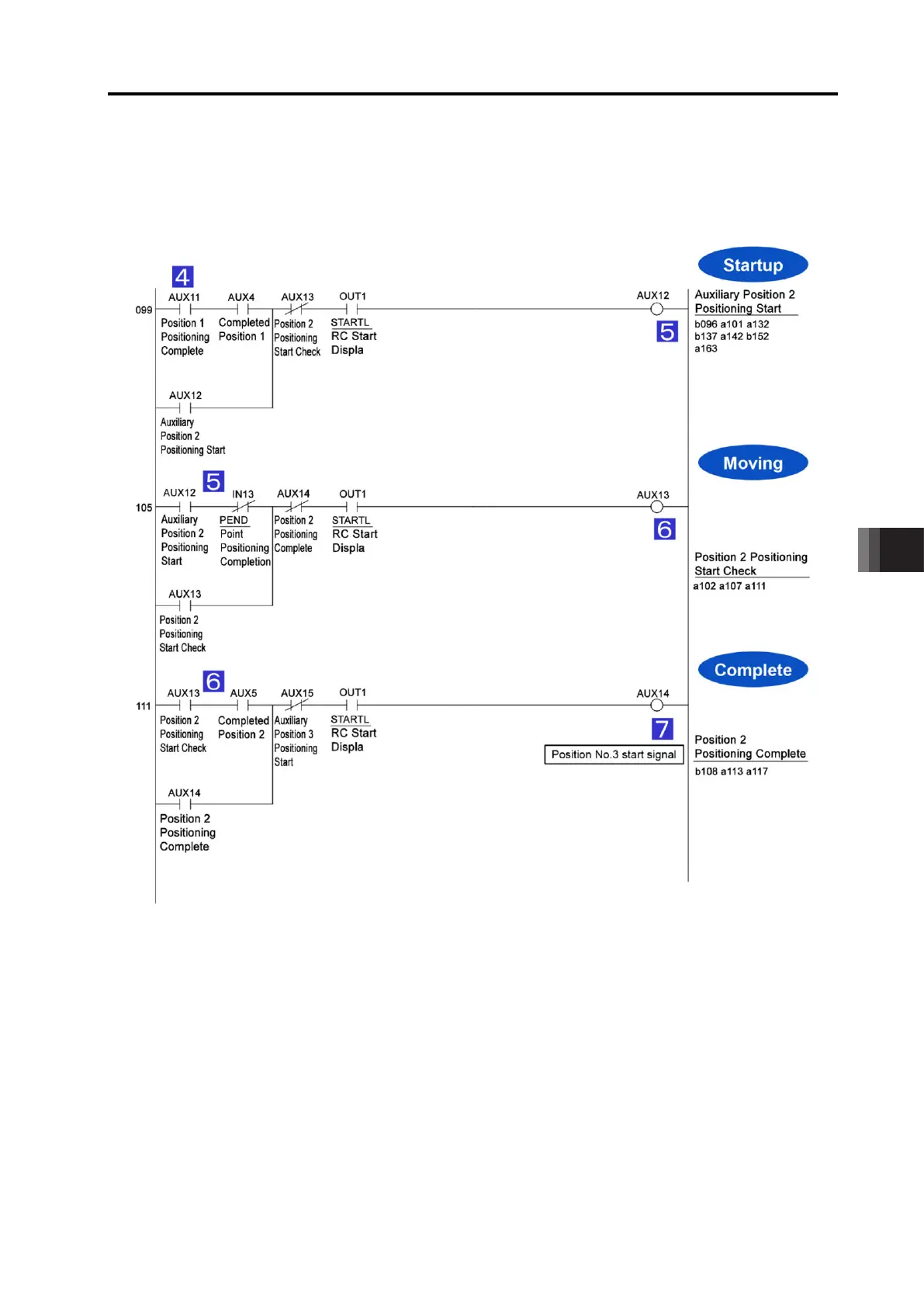

[9] Position 2 Operation Circuit
The main circuit is designed to process and manage signals “start” moving” positioning
complete” to move the actuator to position No.2. This circuit indicates the same sequence as
that of position No.1.
