9. Appendix
9.3 Example of Bas
ic Positioning Sequ
ence (PIO pattern 0 t
o 3)
9-28
ME0342-4B
[
10
]

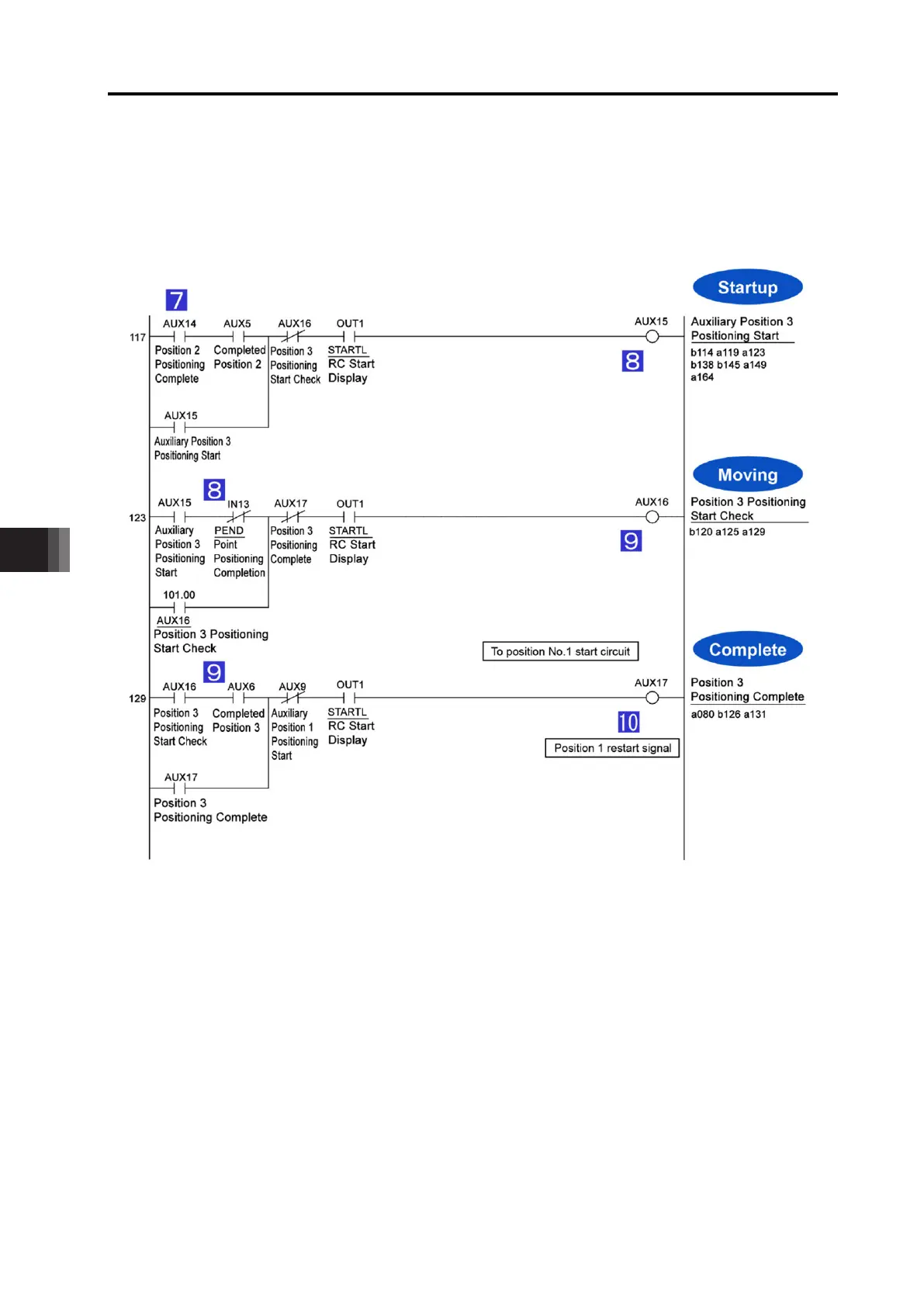

Position 3 Operation Circuit
The main circui
t is designed to proces
s and manage signal
s “start”
→
“
m
oving”
→
“
positioning
complete” to mov
e the actuator to posi
tion No.3. This circuit i
ndicates the same sequenc
e as
that of position No.
1.
