IDEC MICRO3 User Manual

3: PROGRAM LOADER
3-10 USER’S MANUAL

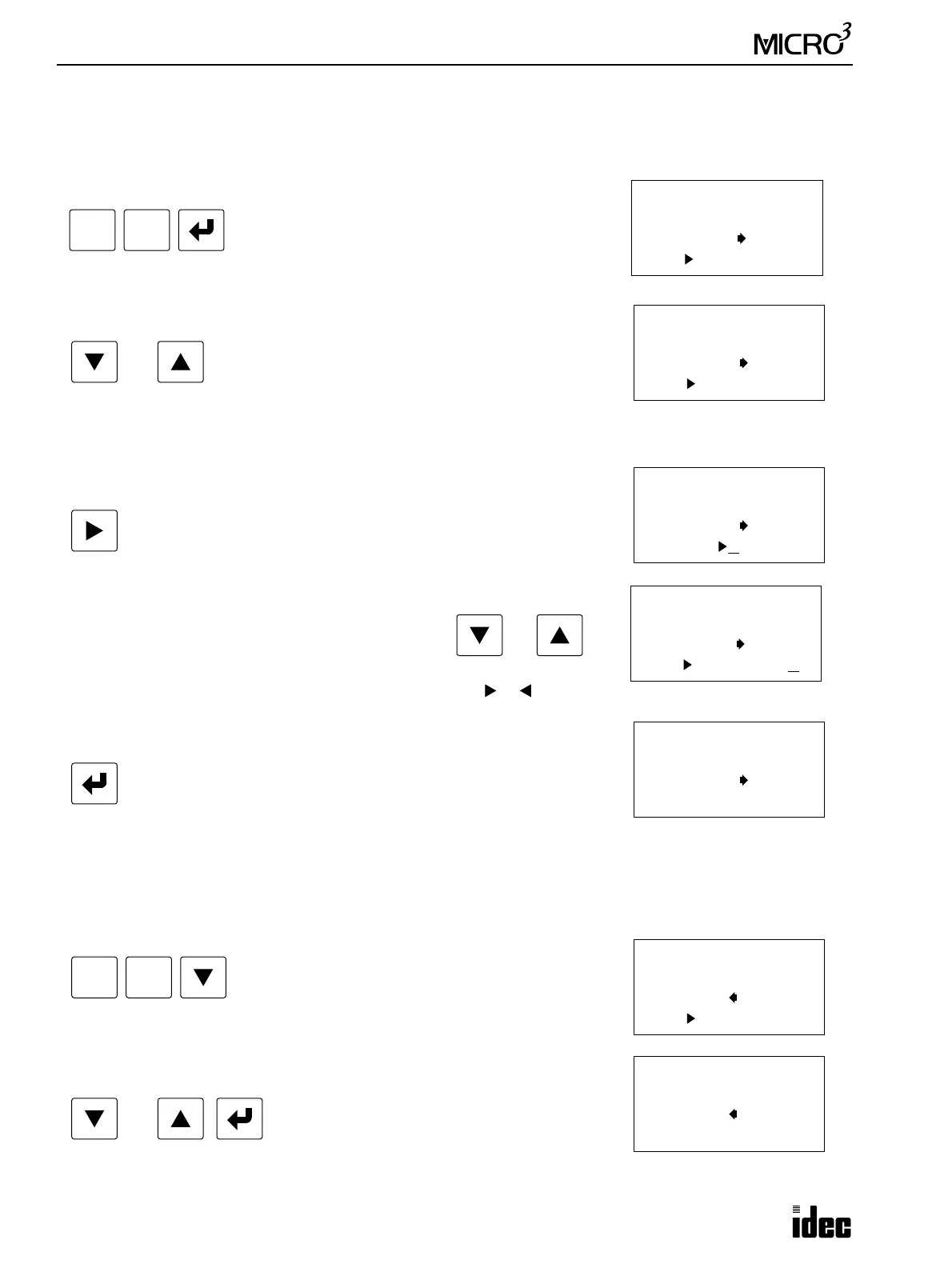

Writing Program from Program Loader to Memory Card
A new memory card must be formatted before writing user programs using FUN41. See “FUN41: Memory Card Format-
ting” on page 15. Insert a formatted memory card into the program loader. Make sure that the write protect switch on the
memory card is set to the write enable side.
Press the keys:
Select a storage address from 1 through 84 to store the user program in
the memory card by pressing the key:
At storage addresses where no program is stored, 8 asterisks are displayed. At addresses where programs are stored with-
out program names, the program name line is left blank. A new program can be overwritten at any storage address.
To enter a program name, move the cursor to the right by pressing the
key:
Select a character at each position to enter a program
name of 8 characters maximum. When FUN35 dis-
play language selection is set to English, characters
A to Z, 0 to 9, and a space can be used for the pro-
gram name. To select a character, press the key:
Move the cursor to the next or previous position by pressing the or key.
After entering a program name, start to transfer the program from the
program loader to the memory card by pressing the key:
When the transfer is completed, “END” is displayed.
Note: When an error occurs during program transfer, see “Error Messages for Program Loader Operation” on page 20.
Reading a Program from Memory Card to Program Loader
Insert a memory card containing user programs into the program loader.
Press the keys:
Select a program name in the memory card as described above and start
the program transfer by pressing the keys:
When the transfer is completed, “END” is displayed.
Note: When an error occurs during program transfer, see “Error Messages for Program Loader Operation” on page 20.
TRS TRS
TRS 1Kstep
(Write)
Loader Card
OK? 1:********
TRS 1Kstep
(Write)
Loader Card
OK? 10:********
or
TRS 1Kstep
(Write)
Loader Card
OK? 10 *
******
TRS 1Kstep
(Write)
Loader Card
OK? 10:IDEC003
*
or
TRS 1Kstep
(Write)
Loader Card
END :IDEC003
TRS TRS
TRS 1Kstep
(Read)
Loader Card
OK? 1:PROGRAM1
TRS 1Kstep
(Read)
Loader Card
END :IDEC003
or
