IDEC MICRO3 User Manual

4: SPECIAL FUNCTIONS
4-20 USER’S MANUAL
Analog Timer Unit and Accessories

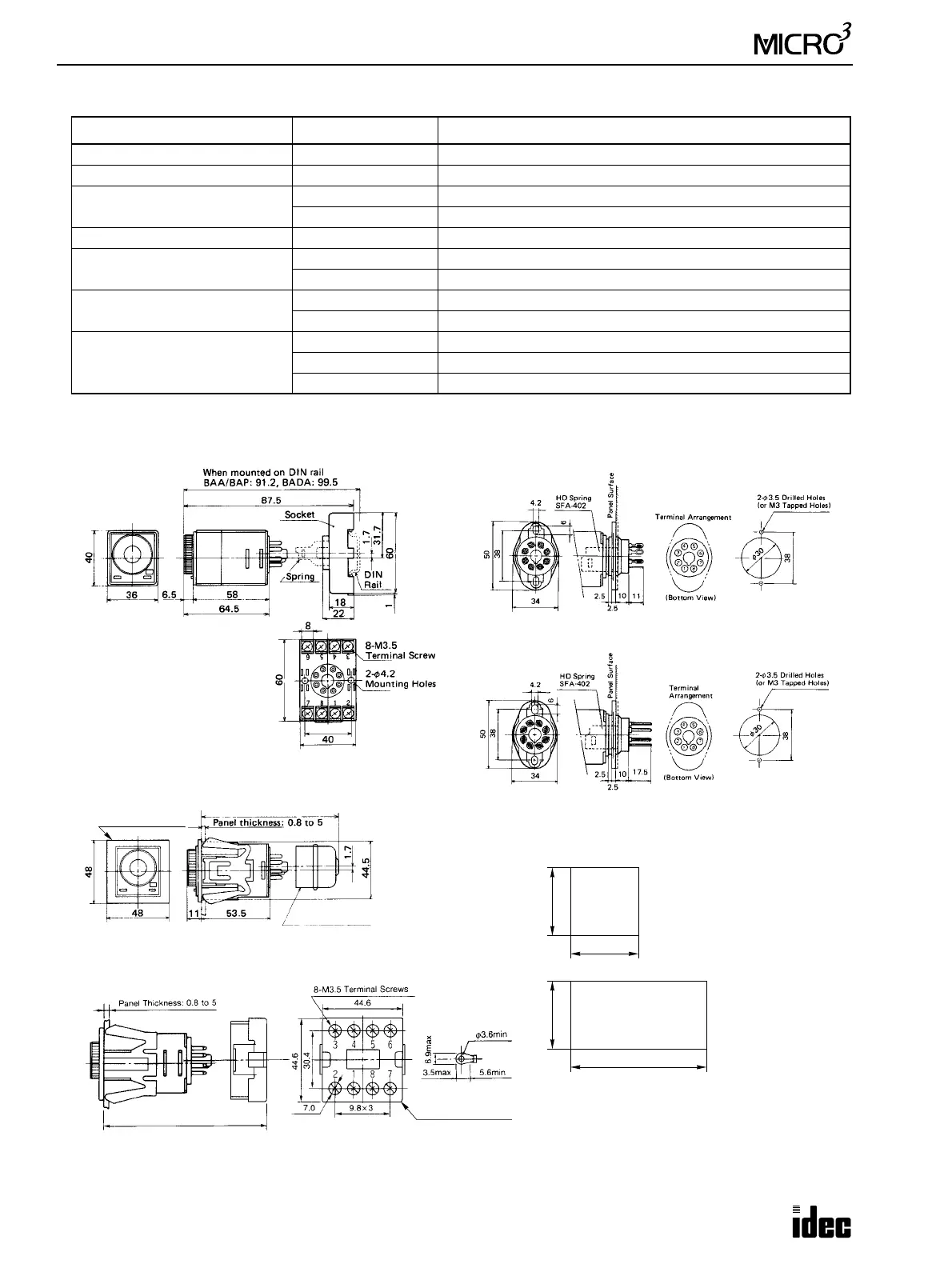

Analog Timer Unit Dimensions
Name Type No. Remarks
Analog Timer Unit PFA-1U11 For changing the preset value of timer instructions
DIN Rail Mount Socket SR2P-06U With screw terminals
Panel Mount Socket
SR2P-511 With solder terminals
SR2P-70 With wire wrap terminals
Panel Mount Adapter RTB-C01 Bluish gray
Wiring Socket Adapter
SR6P-S08 With solder terminals
SR6P-M08G With screw terminals
Hold-down Spring
SFA-202 For SR2P-06U
SFA-402 For SR2P-511 and SR2P-70
DIN Rail
BAA1000 35mm-wide DIN rail, 1m long, made of aluminum
BAP1000 35mm-wide DIN rail, 1m long, made of steel
BADA1000 35mm-wide DIN rail, 1m long, made of aluminum
When using DIN Rail Mount Socket SR2P-06U When using Panel Mount Socket SR2P-511
When using Panel Mount Socket SR2P-70
When using Panel Mount Adapter RTB-C01 and
Wiring Socket Adapter SR6P-S08
When using Panel Mount Adapter RTB-C01 and
Wiring Socket Adapter SR6P-M08G
Wiring Socket Adapter
SR6P-S08
Panel Mount Adapter
RTB-C01
Wiring Socket Adapter
SR6P-M08G
Panel Cut-out Dimensions
When using Panel Mount Adapter RTB-C01
Single
Mounting
45
45
Horizontal Close Mounting
45
48N – 3
N = Quantity of analog timer units mounted
Tolerance: +0.5 to 0
All dimensions in mm.
33
88.5 max.
72.5
