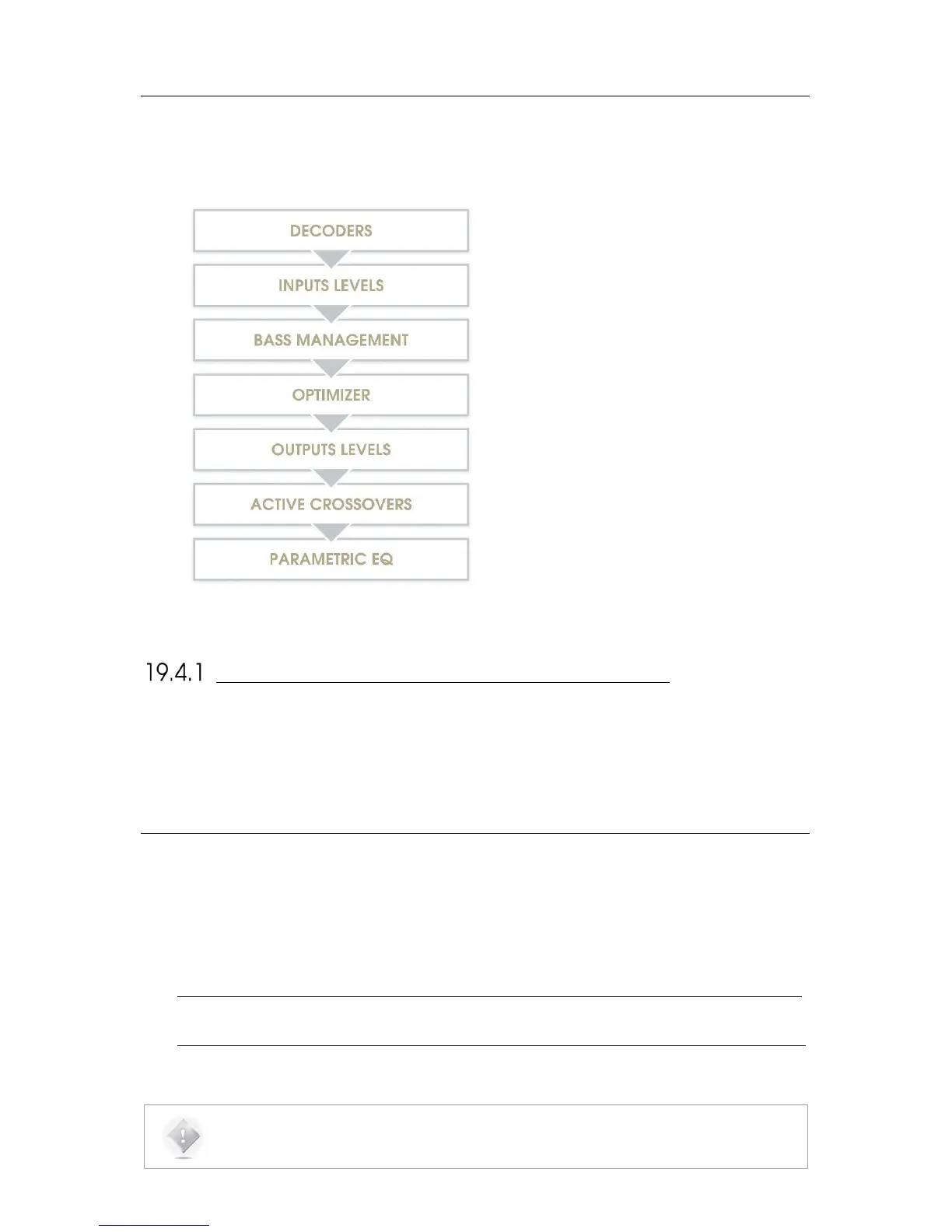

19.4 SIGNAL FLOW OF THE SDP-75
Not shown:
• Input & output routing / Physical inputs &
outputs
• Manual input & output Eqs
SETUP PROCESS AND FILTERS CALCULATION
Active-Crossovers are set up first following a semi-automatic calibration procedure.
The Optimizer’s filters calculation is made from the speaker measurement.
Bass management crossover filters are applied after and regardless of the loudspeaker calibration. The crossover
frequencies and bass management mode can therefore be modified after calibration.
19.5 3D SPEAKER PLACEMENT
RECOMMENDATIONS
For detailed information about speaker placement recommendations, please refer to the following documents:
• Auro-3D Home Theatre Setup Installation Guidelines, available from Auro Technologies.
• http://www.auro-3d.com/wp-content/uploads/documents/Auro-3D-Home-Theater-Setup-Guidelines_lores.pdf
• Dolby Atmos Home Theatre Installation Guidelines, available from Dolby:
• http://www.dolby.com/us/en/technologies/dolby-atmos/dolby-atmos-home-theater-installation-guidelines.pdf
NOTE: As of July 2016, the DTS X Home Theatre Installation Guidelines are not yet available.
