19.6 DB25 CONNECTOR: ANALOG PINOUT
PINOUT
The SDP-75 uses DB25 connectors for Analog output connections. We use the widely-used Tascam DB25 scheme
described below.

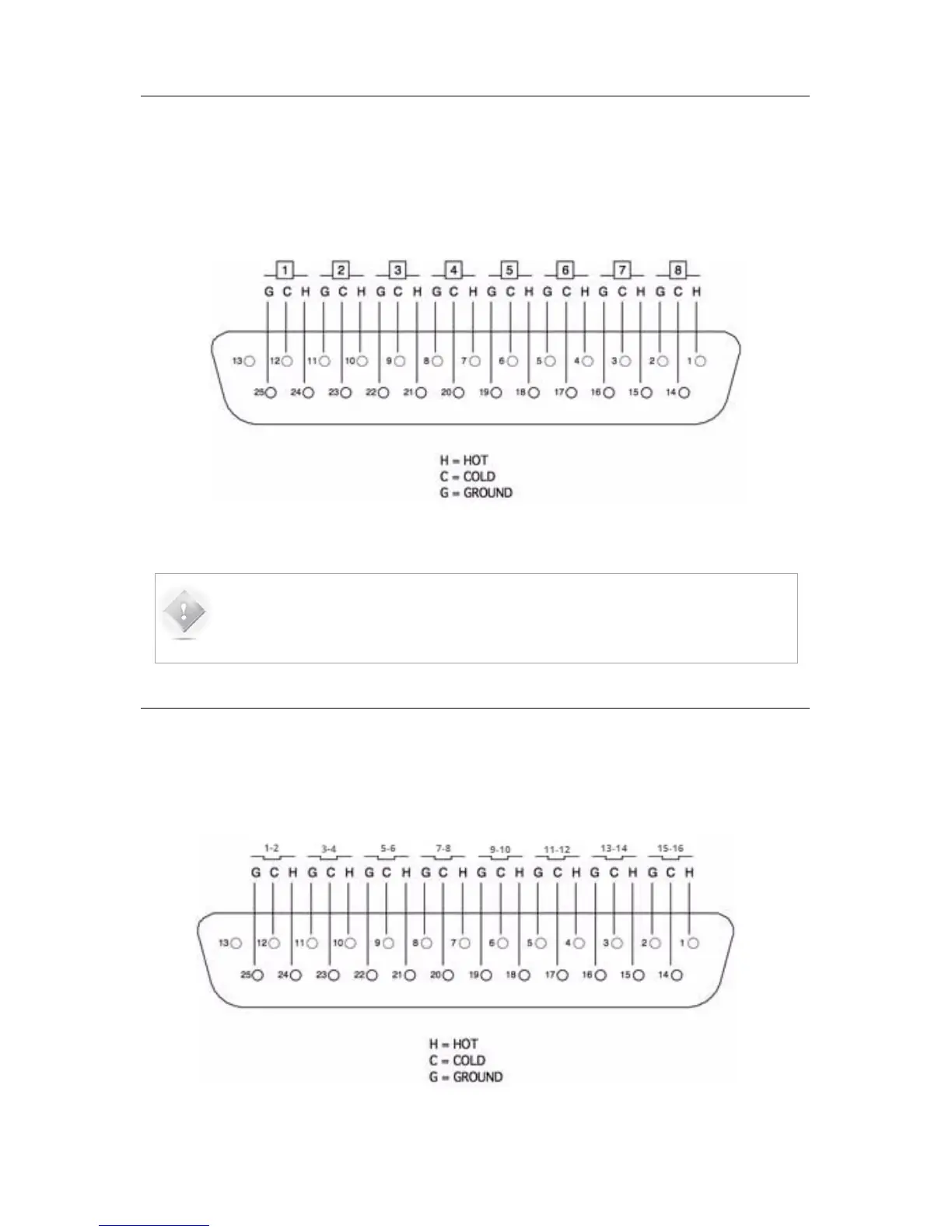

Figure 110: Tascam pinout for the AES DB25 output connector
NOTE: Another quite popular pinout is the one from Yamaha. You should check which pinout
your equipment is using before connecting it to the SDP-75. Unbalanced connections must
connect signal to SubD-Hot and shield to SubD-Cold.
19.7 DB25 CONNECTOR : AES PINOUT
The SDP-75 uses DB25 connectors for AES connections, input as well as output. We use the widely-used Tascam
DB25 scheme described below.
Figure'111:'Tascam'pino u t'for'the'AES'D B 2 5 'o u tp u t'c o n n e c to r'
