8.3 AN EXAMPLE OF A SPECIFIC SPEAKER
LAYOUT
The SDP-75
is designed to support any speaker layout. This includes standard speaker layouts such as those specified
by Dolby, DTS and Auro-3D, but also hybrid speaker layouts based on two or more speaker placement recommendations.
This allows your installation to support the different surround and 3D formats currently available in DVD, Blu-ray, UHD
Discs, streaming media, and file-based media.
Below is an example of a specific speaker layout designed to support multiple formats:

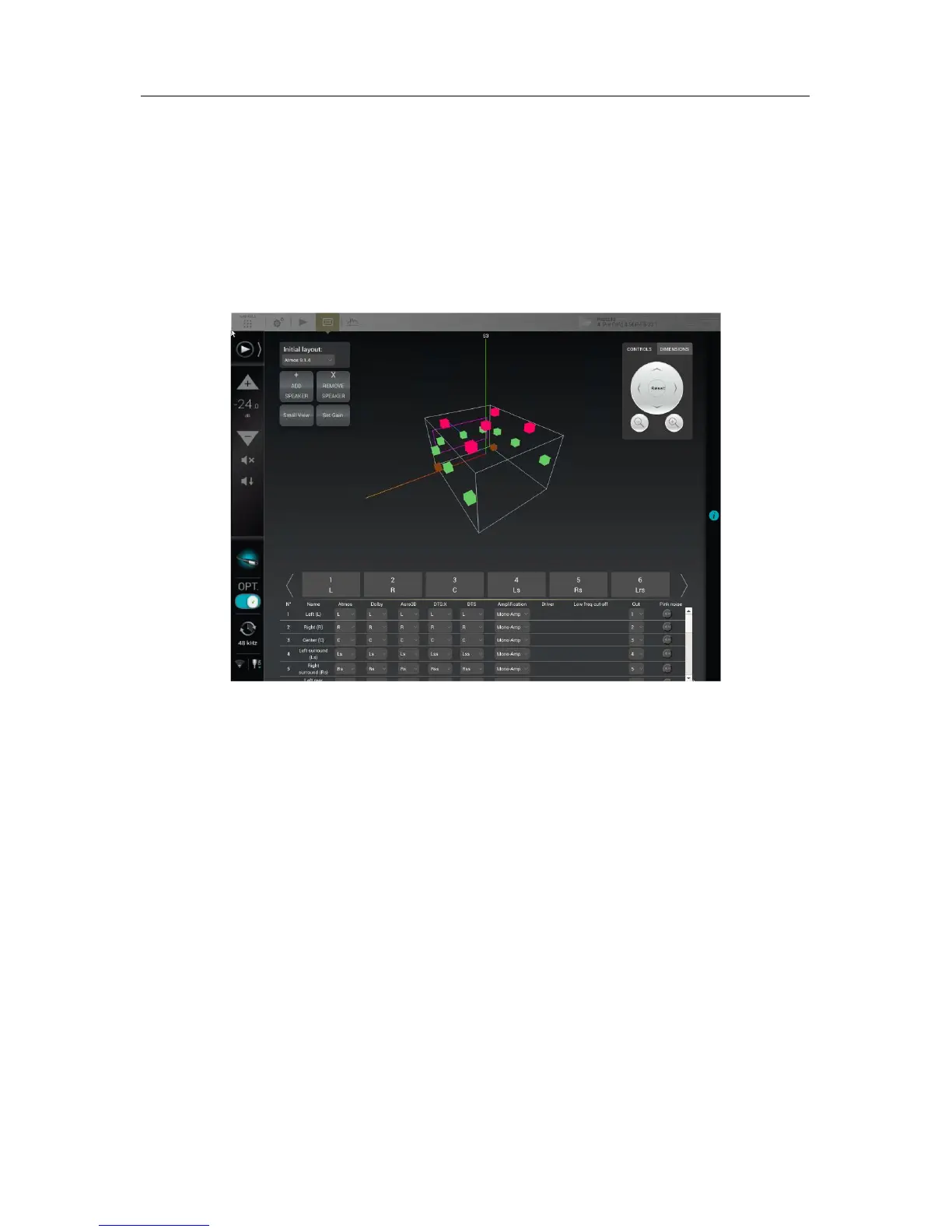

Figure#59:#Example#of#a#specific#configuration#with#16#speakers#
This configuration of 16 speakers includes:
• initial layout (7 full-range speakers + 1 subwoofer)
• 6 additional speakers based on the Dolby Atmos format:
• 2 additional Lw & Rw speakers (Left wide & Right wide)
• 4 additional height speakers: Ltf & Rtf (Left & Right top front) and Ltr & Rtr (Left & Right top rear)
• additional ceiling speaker for the Auro-3D Top channel (“Voice of God”).
• 1 extra subwoofer.
The following pages describe how to setup such a configuration.
