67

5.7 SET A MAXIMUM VOLUME

The Maximum volume can be selected in the Startup option tab of the product information menu:

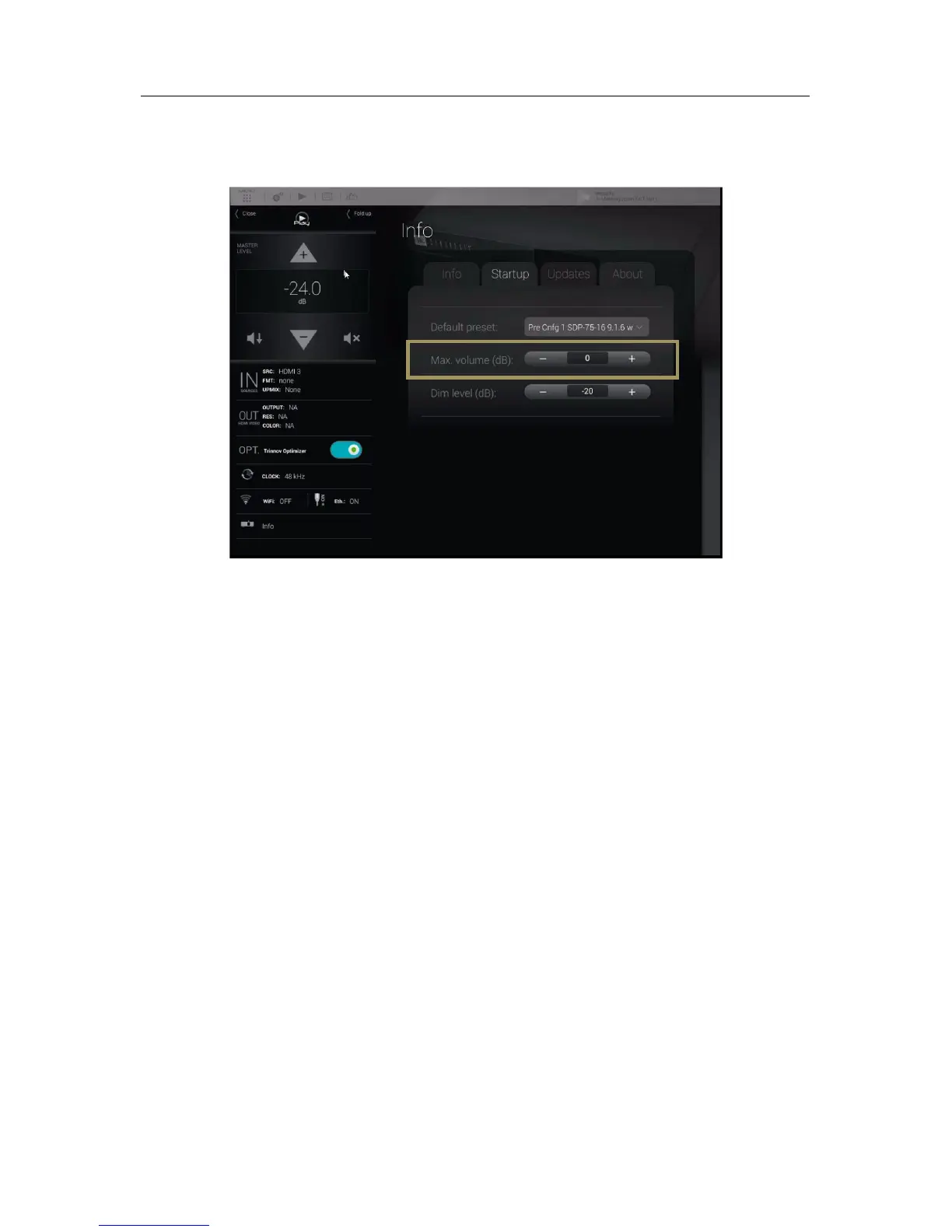

Figure#46:#the#Info/Startu p #p a ge ,#maximum #vo lu me#
