Ensure that you have the following parts and tools available:
•
Electrostatic discharge (ESD) grounding strap (If a grounding strap is not available,
follow the alternative grounding method described in Step 1 of the following procedure.)
•
Cross-head screwdriver (provided in the uplink module kit)
•
An antistatic bag or antistatic mat
To remove an uplink module from the switch:
1. Attach the electrostatic discharge (ESD) grounding strap to your bare wrist, and
connect the strap to the ESD point on the chassis.
If a grounding strap is not available, touch the exposed, bare metal of the switch with
the other hand to ground yourself and the component.
2. Loosen the screws that secure the flip-up door covering the uplink module slot on the
front panel of the switch by using the cross-head screwdriver provided with the uplink
module kit and flip the door upward.
3. Insert the ball end of the screwdriver in the keyhole on the front panel of the uplink
module and slide the screwdriver to the narrow part of the keyhole (see
Figure 53 on page 198).
CAUTION: Ensure the screwdriver does not slip out of the keyhole when
you pull the uplink module out of the switch chassis.
4. Using both hands, gently pull the screwdriver to slide the uplink module halfway out
of the chassis (see Figure 54 on page 199).
5. Place one hand under the uplink module to support it and slide it completely out of
the chassis.
6. Slide the screwdriver out of the keyhole.
7. Place the uplink module in an antistatic bag or on an antistatic mat placed on a flat,
stable surface.

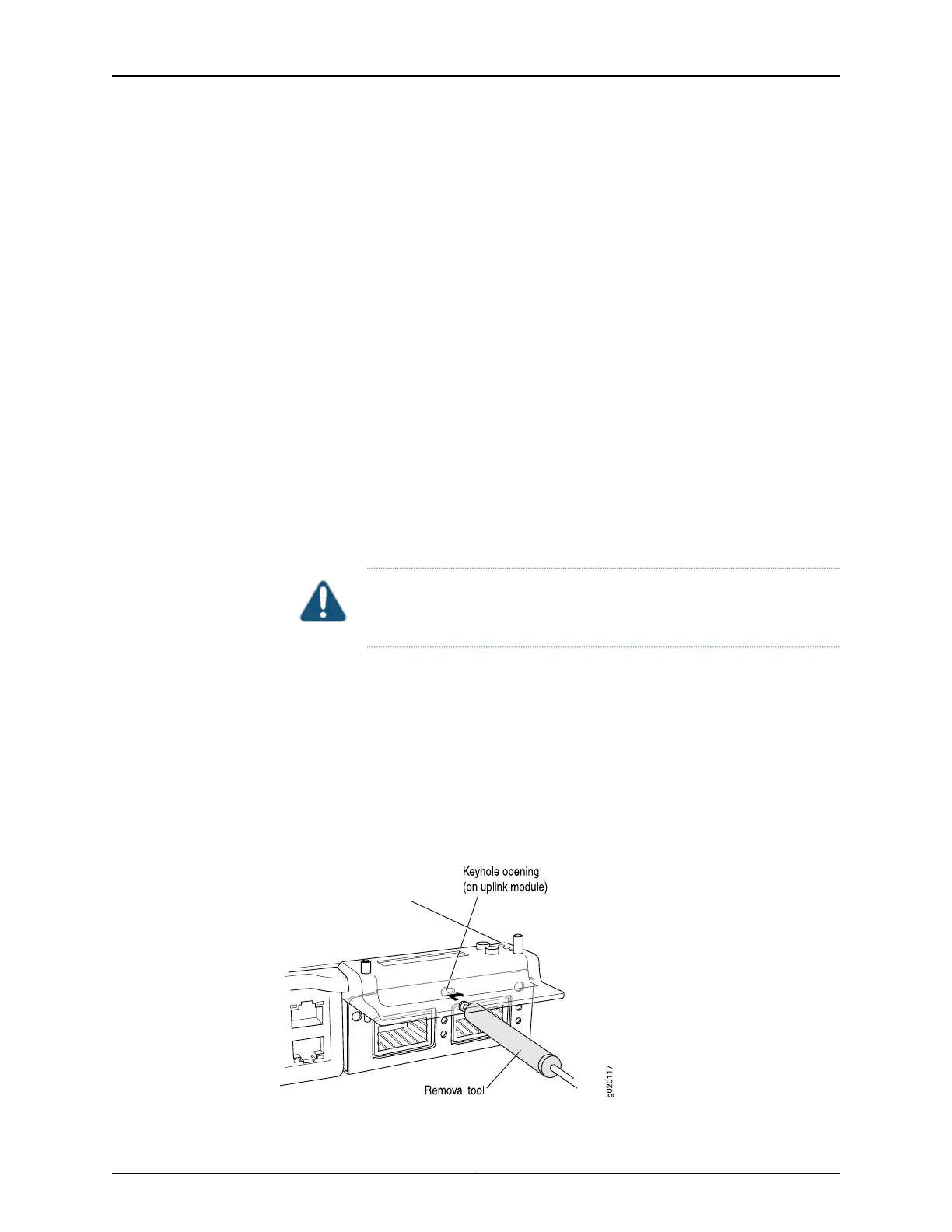

Figure 53: Sliding the Screwdriver to the Narrow Part of the Keyhole
Copyright © 2016, Juniper Networks, Inc.198
EX3200 Switch Hardware Guide
