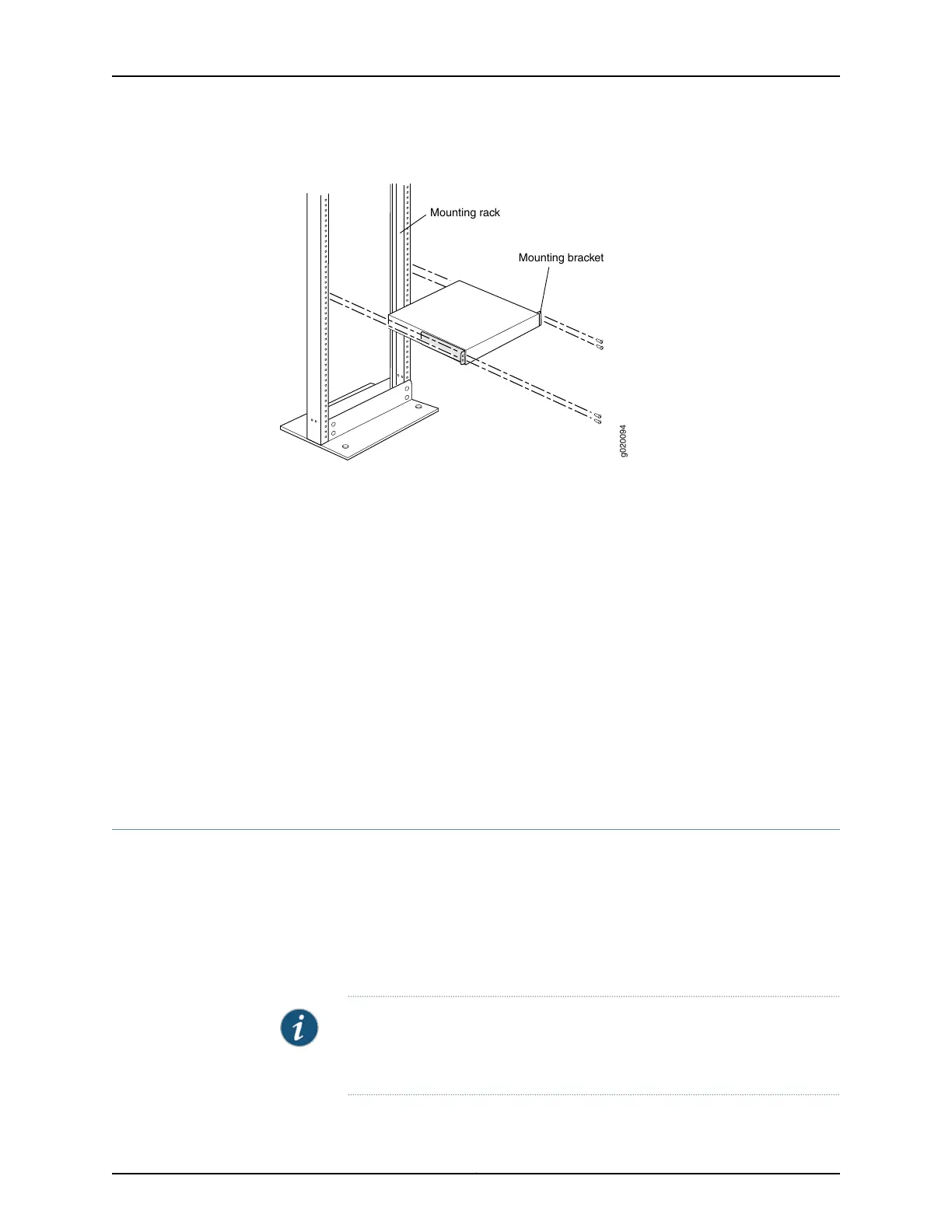

Figure 26: Mounting the Switch on Two Posts in a Rack

g020094

Mounting rack

Mounting bracket

7. Have a second person secure the switch to the rack by using the appropriate screws.

Tighten the screws.

8. Ensure that the switch chassis is level by verifying that all screws on one side of the

rack are aligned with the screws on the other side.

Documentation

Connecting Earth Ground to an EX Series Switch on page 155•

• Connecting AC Power to an EX3200 Switch on page 161

• Connecting DC Power to an EX3200 Switch on page 163

• Connecting and Configuring an EX Series Switch (CLI Procedure) on page 175

• Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 178

• Mounting an EX3200 Switch in a Recessed Position in a Rack or Cabinet on page 150

• Rack-Mounting and Cabinet-Mounting Warnings on page 248

Mounting an EX3200 Switch on Four Posts in a Rack or Cabinet

You can mount an EX3200 switch on four posts of a 19-in. rack or cabinet by using the

separately orderable four-post rack-mount kit. (The remainder of this topic uses “rack”

to mean “rack or cabinet.”)

You can mount the switch on two posts in either a two-post rack or a four-post rack by

using the mounting brackets provided with the switch. See “Mounting an EX3200 Switch

on Two Posts in a Rack or Cabinet” on page 144.

NOTE: If you need to mount the switch in a recessed position on either a

two-post rack or a four-post rack,you can use the 2-in.-recess front-mounting

brackets provided in the separately orderable four-post rack-mount kit.
