The SFP+ uplink module requires Junos OS for EX Series switches, Release 9.4 or later.
The SFP+ MACsec uplink module requires Junos OS for EX Series switches, Release
13.2X50-D10 or later.
XFP Uplink Module

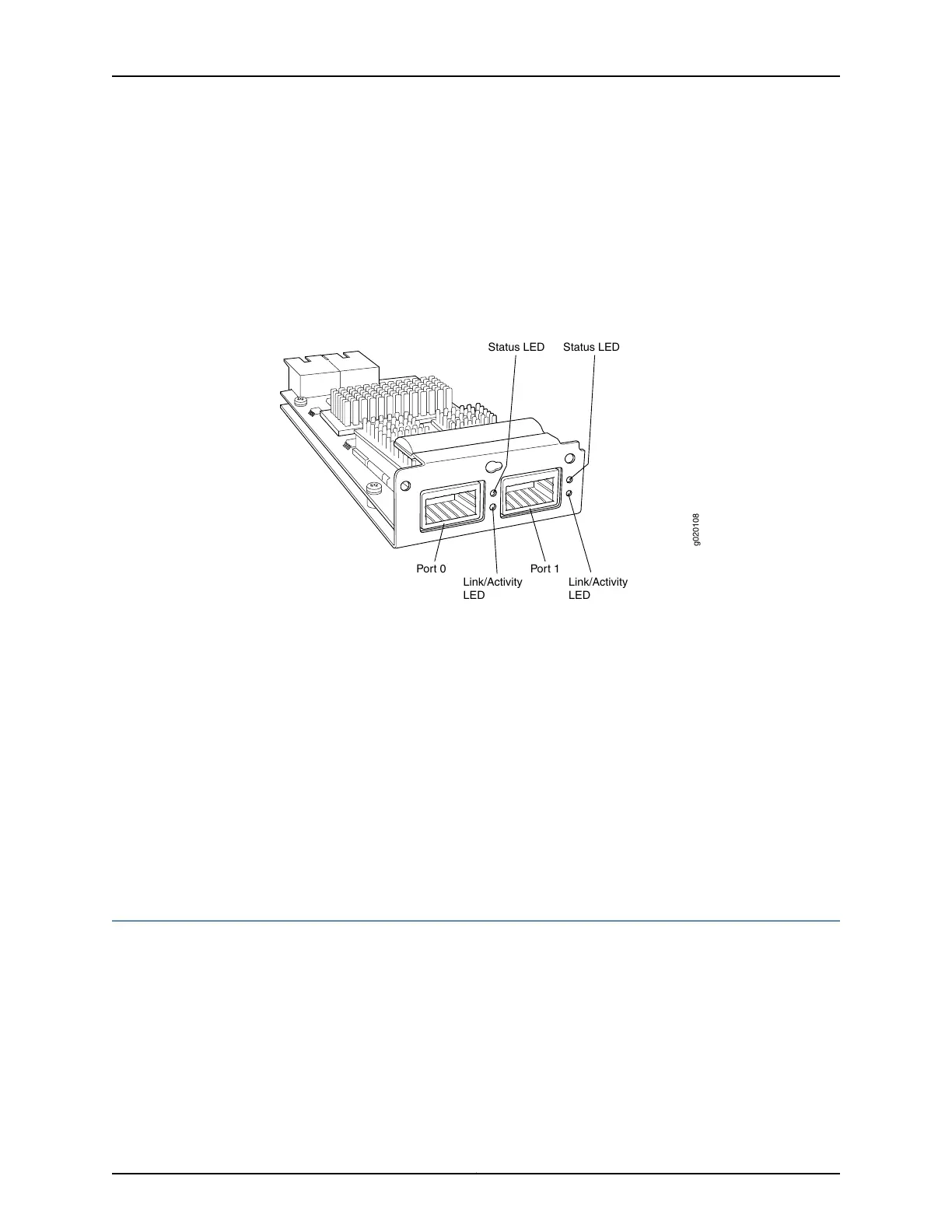

Figure 7 on page 18 shows the XFP uplink module, which provides two ports for 10-gigabit
XFP transceivers.
Figure 7: XFP Uplink Module
g020108
Link/Activity
LED
Link/Activity
LED
Status LED Status LED
Port 0 Port 1
XFP uplink modules are shipped with a dust cover preinstalled in one port.
The XFP uplink module requires Junos OS for EX Series switches, Release 9.0 or later.
Related
Documentation
Network Port LEDs in EX3200 Switches on page 21•
• Uplink Modules Connector Pinout Information for EX3200 Switches on page 126
• Pluggable Transceivers Supported on EX3200 Switches on page 75
• SFP+ Direct Attach Copper Cables for EX Series Switches on page 111
• Installing an Uplink Module in an EX3200 Switch on page 195
• Troubleshooting Uplink Module Installation or Replacement on EX3200 Switches on
page 232
Chassis Status LEDs in EX3200 Switches
The front panel of an EX3200 switch has three LEDs on the far right side of the panel,
next to the LCD panel (see Figure 8 on page 19).
