Mounting an EX3200 Switch on a Desk or Other Level Surface
You can mount an EX3200 switch on a desk or other level surface by using the 4 rubber
feet that are shipped with the switch. The rubber feet stabilize the chassis.
Before mounting an EX3200 switch on a desk or other level surface:
•
Verify that the site meets the requirements described in “Site Preparation Checklist
for EX3200 Switches” on page 57.
•
Place the desk in its permanent location, allowing adequate clearance for airflow and
maintenance, and secure it to the building structure.
•
Read “General Safety Guidelines and Warnings” on page 237, with particular attention
to “Chassis Lifting Guidelines” on page 246.
•
Remove the switch from the shipping carton (see “Unpacking an EX3200 Switch” on
page 137).
Ensure that you have the following parts and tools available:
•
4 rubber feet to stabilize the chassis on the a desk or other level surface (provided in
the accessory box shipped with the switch)
To mount the switch on a desk or other level surface:
1. Turn the chassis upside down on the desk or the level surface where you intend to
mount the switch.
2. Attach the rubber feet to the bottom of the chassis, as shown in Figure 24 on page 143.
3. Turn the chassis right side up on the desk or the level surface.

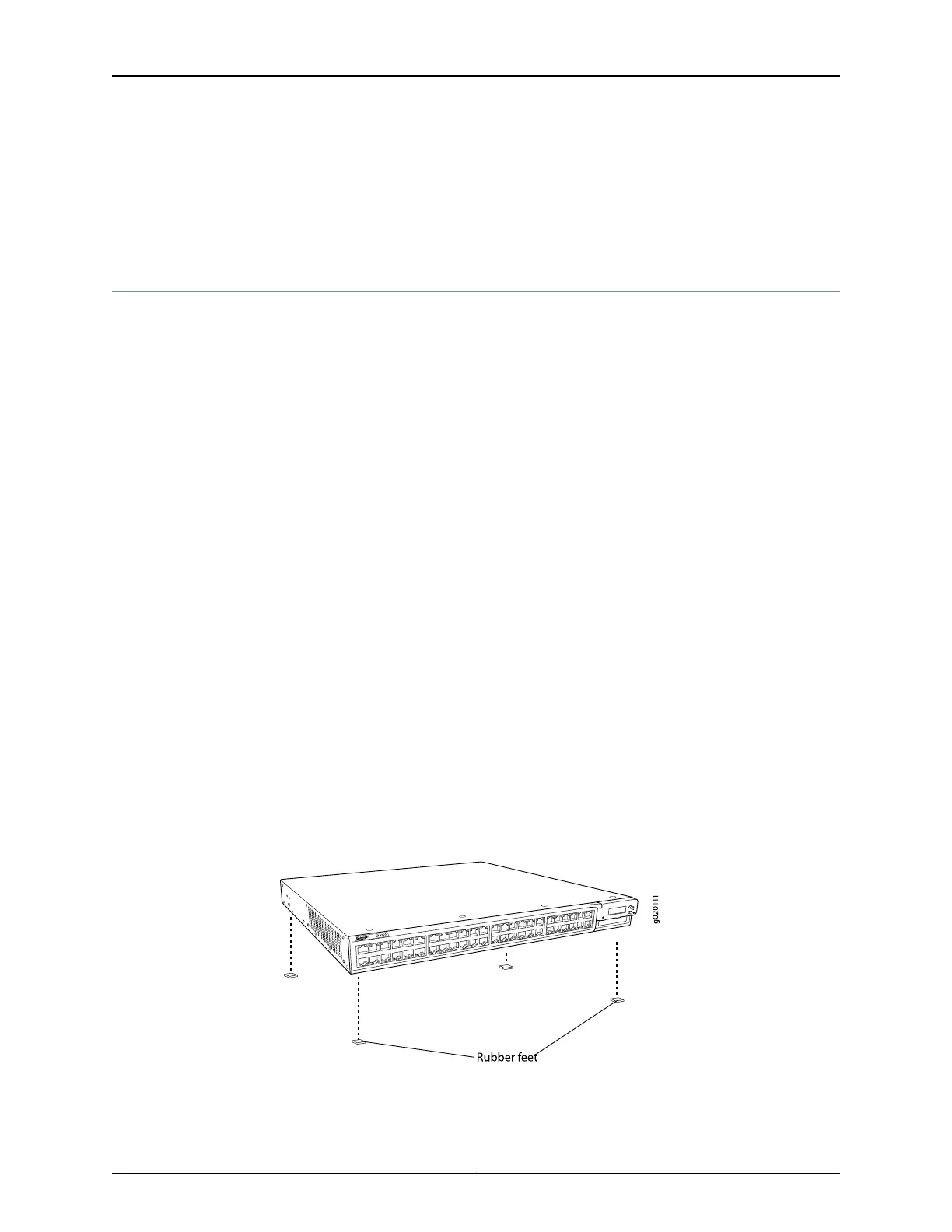

Figure 24: Attaching Rubber Feet to an EX3200 Switch Chassis
143Copyright © 2016, Juniper Networks, Inc.
Chapter 11: Installing the Switch
