Juniper EX3200 Hardware Guide

CHAPTER 13
Connecting the Switch to the Network
•
Connecting a Device to a Network for Out-of-Band Management on page 167
•
Connecting a Deviceto a Management Console by Using an RJ-45Connector on page168
•
Connecting a Fiber-Optic Cable on page 169
Connecting a Device to a Network for Out-of-Band Management
You can monitor and manage these devices by using a dedicated management channel.
Each device has a management port to which you can connect an Ethernet cable with
an RJ-45 connector. Use the management port to connect the device to the management
device.
Ensure that you have an Ethernet cable that has an RJ-45 connector at either end.
Figure 40 on page 167 shows the RJ-45 connector of the Ethernet cable supplied with the
device.

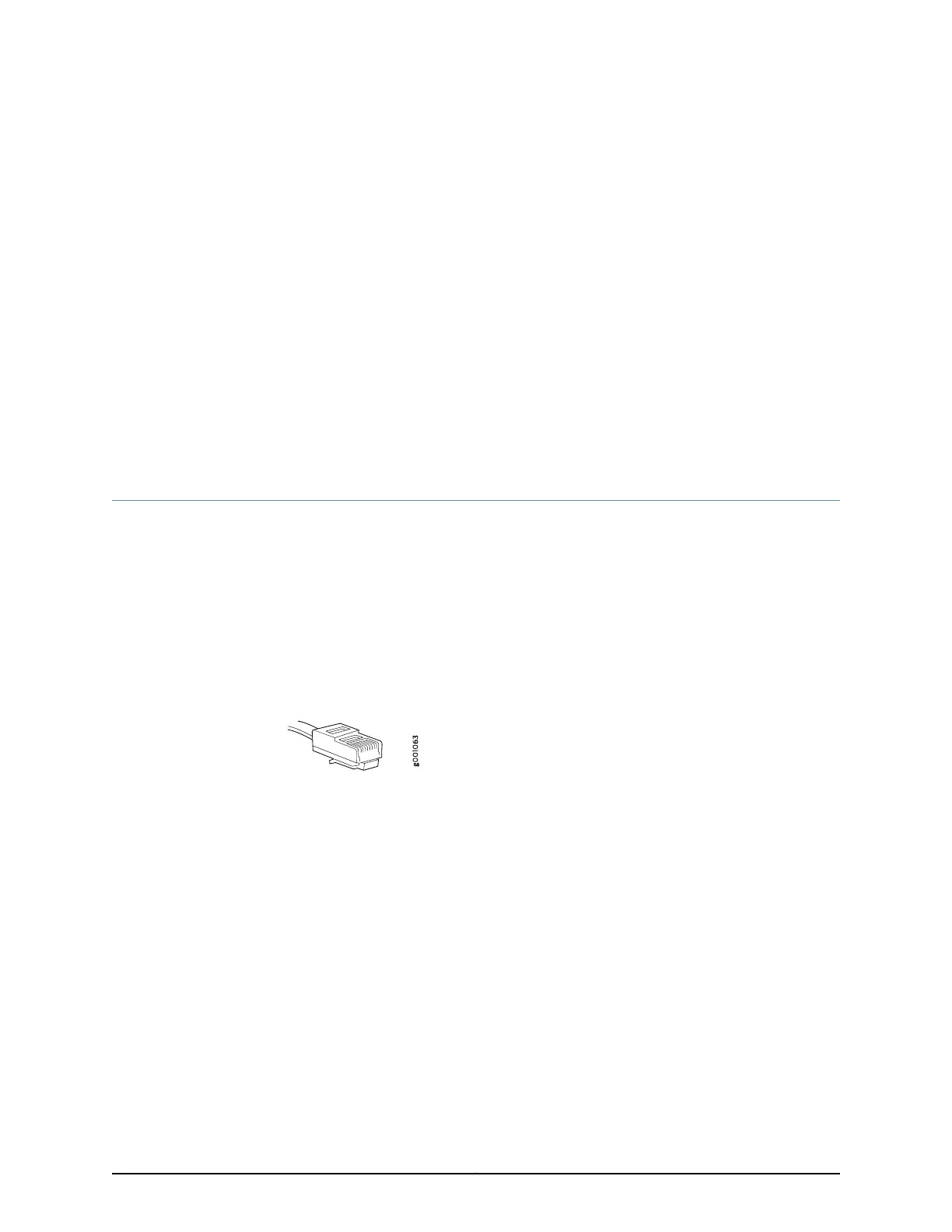

Figure 40: RJ-45 Connector on an Ethernet Cable
To connecta device to a network for out-of-band management (seeFigure 41 on page168):
1. Connect one end of the Ethernet cable to the management port (labeled MGMT or
ETHERNET) on the device.
2. Connect the other end of the Ethernet cable to the management device.
167Copyright © 2016, Juniper Networks, Inc.

Juniper EX3200 Specifications

General

Model	EX3200
Rack Units	1U
Layer Support	Layer 2 and Layer 3
Junos OS	Yes
Maximum VLANs	4093
DRAM	512 MB
Flash Memory	256 MB
Ports	24 or 48
Uplink Ports	4 SFP
Power Supply	AC or DC
MAC Address Table Size	16, 000 entries
Dimensions (W x D x H)	17.4 x 14.4 x 1.7 inches
Weight	12.3 lb (5.6 kg)
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 85% (non-condensing)
