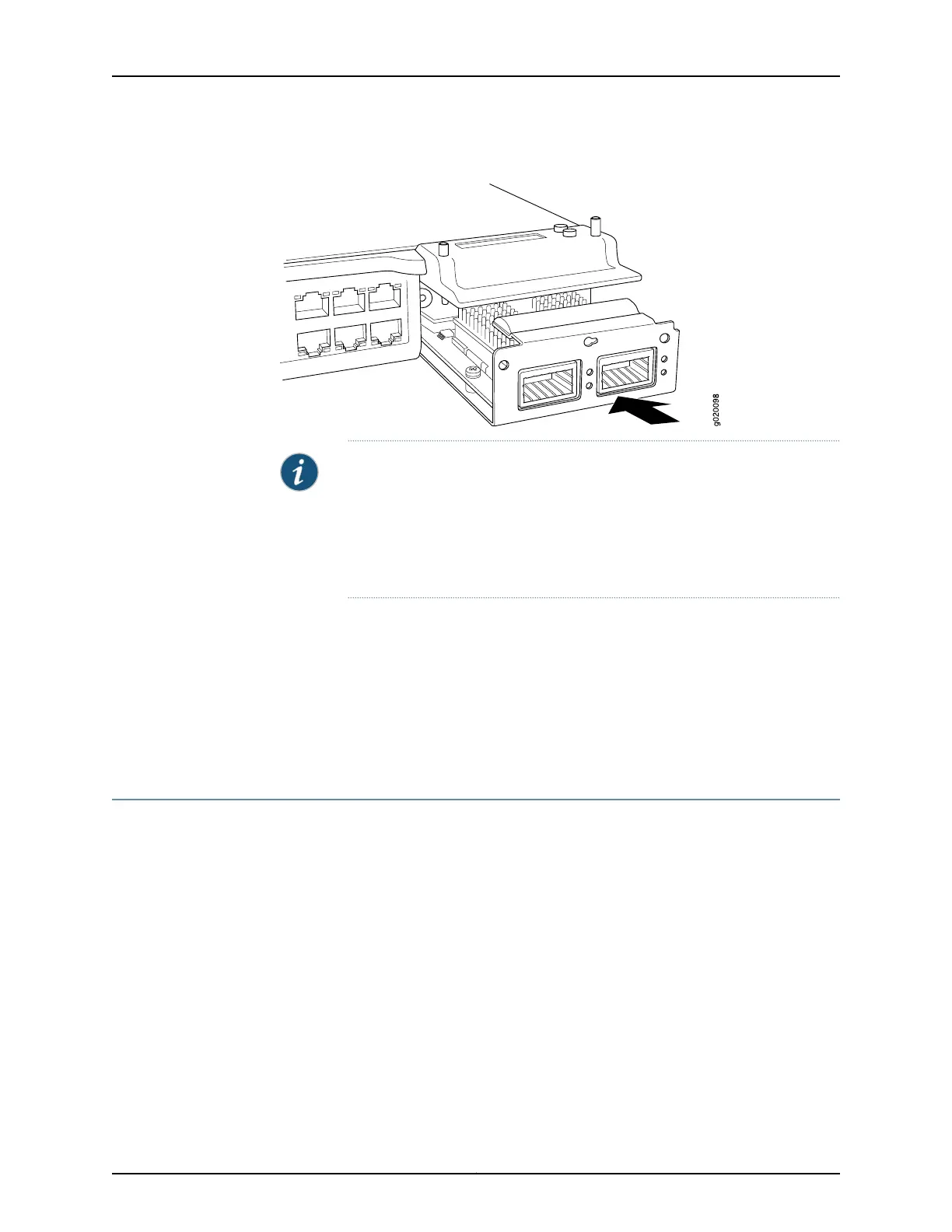

Figure 52: Installing an Uplink Module in an EX3200 Switch
NOTE: If you have a Juniper J-Care service contract, register any addition,
change, or upgrade of hardware components at
https://www.juniper.net/customers/support/tools/updateinstallbase/ . Failure
to do so can result in significant delays if you need replacement parts. This
note does not apply if you replace existing components with the same type
of component.
Related
Documentation
Removing an Uplink Module from an EX3200 Switch on page 197•
• Installing a Transceiver on page 201
• Installing and Removing EX3200 Switch Hardware Components on page 152
• Configuring Gigabit Ethernet Interfaces (CLI Procedure)
• Front Panel of an EX3200 Switch on page 9
Removing an Uplink Module from an EX3200 Switch
If your EX3200 switch includes an optional uplink module, it is installed in the switch's
front panel. The different types of uplink modules are described in “Uplink Modules in
EX3200 Switches” on page 15.
Theuplink module in EX3200 switches is a hot-removable and hot-insertable unit (FRU):
You can remove and replace it without powering off the switch or disrupting switch
functions.
Before you begin removing an uplink module from the switch:
•
Ensure that you have taken the necessary precautions to prevent ESD damage (see
“Prevention of Electrostatic Discharge Damage” on page 269).
•
If there are any transceivers installed in the uplink module, remove them before you
remove the uplink module. For instructions on removing transceivers, see “Removing
a Transceiver” on page 203.
