The AC power supply for the switch is available in 320 W, 600 W, and 930 W models
(see Figure 16 on page 30 and Figure 17 on page 30). The exterior of the 600 W model is
identical in appearance to that of the 930 W model. The 320 W power supply is flush
with the chassis. The 600 W power supply and 930 W power supply extend out of the
chassis by 2.25 in. The power cord retainer clips extend out of the power supply by 3 in.
The number of ports on which PoE is enabled determines the minimum power
requirements of different switch models.

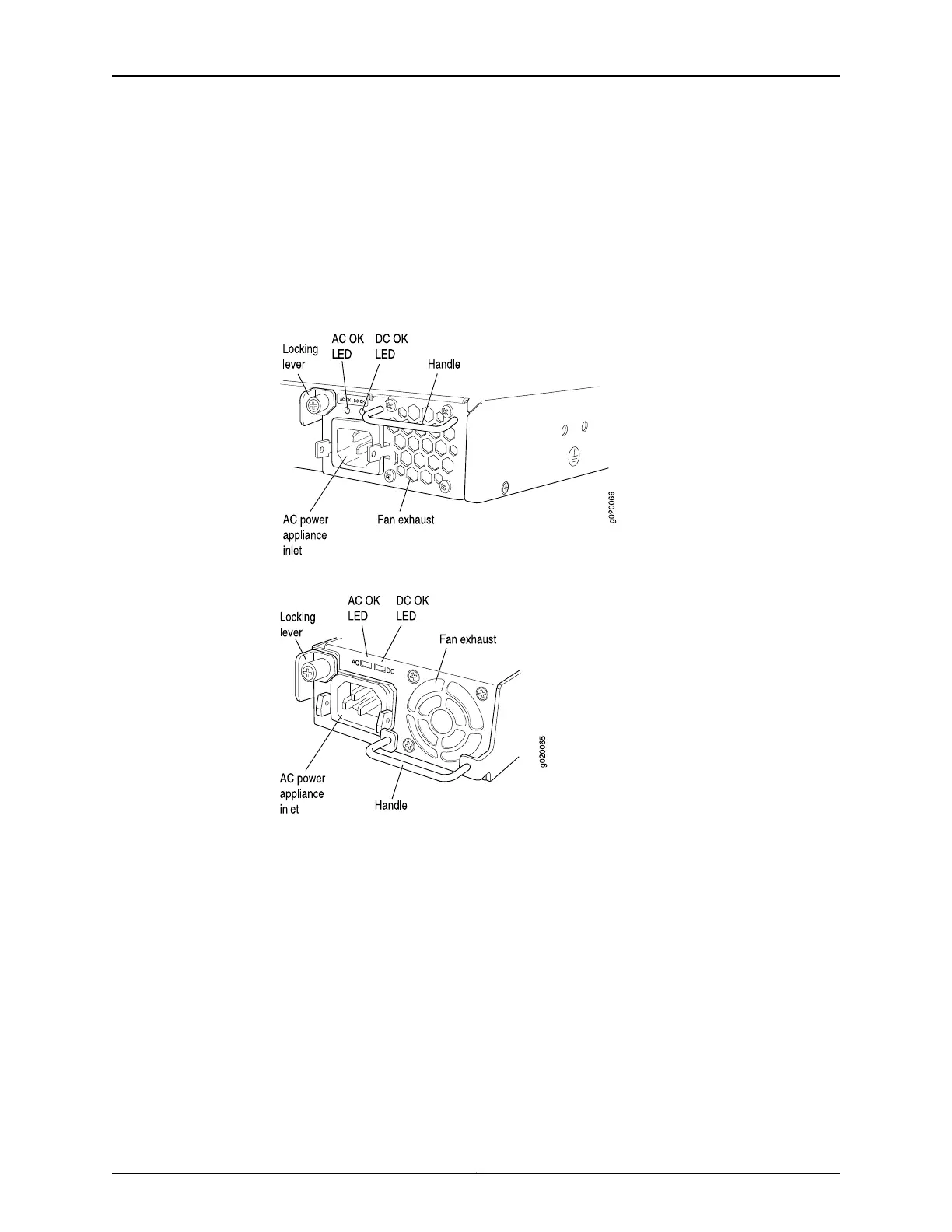

Figure 16: 320 W AC Power Supply
Figure 17: 600 W and 930 W AC Power Supplies
To avoid electrical injury, follow instructions in “Installing a Power Supply in an EX3200
Switch” on page 191 and “Removing a Power Supply from an EX3200 Switch” on page 192
or Installing a Power Supply in an EX4200 Switch or Removing a Power Supply from an
EX4200 Switch carefully.
DC Power Supplies
All the EX4200 switches that are powered by DC power supplies except the
EX4200-24F-S and EX4200-48T-S switches are shipped with one DC power supply
pre-installed in the rear panel of the switches. EX4200-24F-S and EX4200-48T-S
switches are not shipped with pre-installed power supplies; you must order them
separately.
The DC power supply for the switch is available in a 190 W model, with dual input feeds
for power resiliency (see Figure 18 on page 31).
Copyright © 2016, Juniper Networks, Inc.30
EX3200 Switch Hardware Guide
