NOTE: The interfaces for the two dedicated VCPs are operational by default.
However, if you are using the uplink module portsasVCPs, you must explicitly
set the uplink module ports to function as VCPs.
The following illustrations describe various Virtual Chassis cabling configuration examples.
NOTE: For increased availability and redundancy, we recommend that you
always configure your Virtual Chassis in a ring topology.

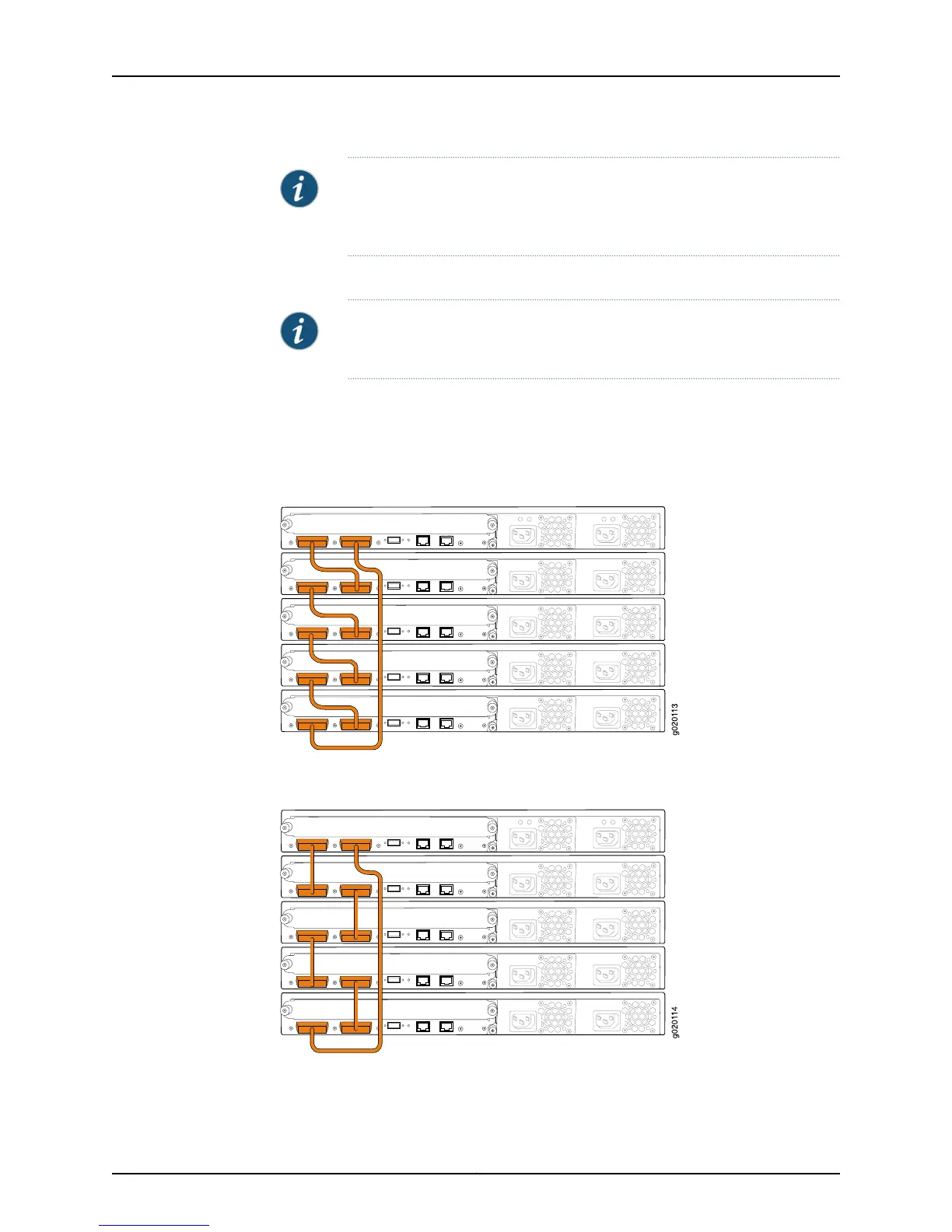

Figure 24 on page 149 and Figure 25 on page 149 show five EX4200 switches stacked
vertically in a rack and interconnected in a ring topology using four short Virtual Chassis
cables and one long Virtual Chassis cable.
Figure 24: EX4200 Switches Mounted on a Single Rack and Connected
in a Ring Topology Using Short and Long Cables: Option 1
Figure 25: EX4200 Switches Mounted on a Single Rack and Connected
in a Ring Topology Using Short and Long Cables: Option 2
149Copyright © 2015, Juniper Networks, Inc.
Chapter 10: Planning the Virtual Chassis

Juniper EX4200 Specifications

General

Model	EX4200
Switching Capacity	128 Gbps
Layer	Layer 2 and Layer 3
Form Factor	1U
Throughput	96 Mpps
Maximum VLANs	4096
MAC Address Table Size	16, 000
DRAM	1 GB
Flash Memory	1 GB
Forwarding Rate	96 Mpps
JUNOS Software	Yes
Ports	24 or 48
Stacking	Up to 10 switches in a Virtual Chassis configuration
Power Supply	AC or DC
Management	CLI, SNMP, J-Web
Input Voltage	100-240 VAC or -48 VDC
Operating Temperature	0°C to 45°C
Redundancy	Redundant power supplies
Virtual Chassis Technology	Yes
Storage Temperature	-40°C to 70°C
Humidity	5% to 90% non-condensing
