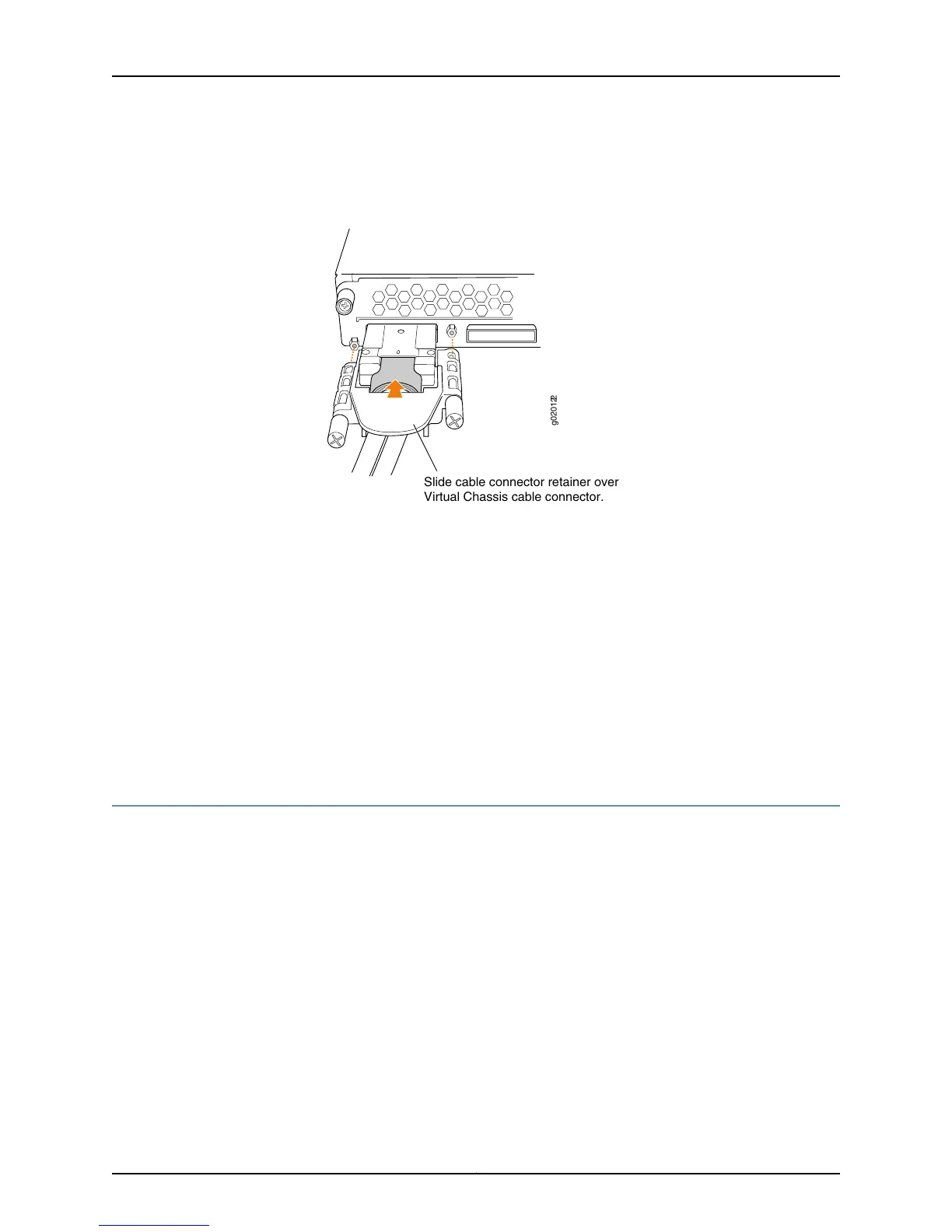

Figure 64: Connecting a Virtual Chassis Cable to an EX4200 Switch
g020122
Slide cable connector retainer over
Virtual Chassis cable connector.
Related
Documentation
Disconnecting a Virtual Chassis Cable from an EX4200 Switch on page 242•
• UnderstandingEX4200,EX4500, and EX4550 Virtual Chassis Hardware Configurations
on page 143
• Understanding EX Series Virtual Chassis Components
• Planning EX4200, EX4500, and EX4550 Virtual Chassis on page 146
• Virtual Chassis Ports Connector Pinout Information for EX4200 Switches on page 138
Disconnecting a Virtual Chassis Cable from an EX4200 Switch
If you need to disconnect an EX4200 switch from a Virtual Chassis configuration, you
need to disconnect the Virtual Chassis cable from the Virtual Chassis ports (VCPs).
Ensure that you have the following parts and tools available:
•
A cross-head screwdriver (provided in the uplink module kit)
To disconnect a Virtual Chassis cable from an EX4200 switch (see Figure 65 on page 243):
1. Loosen the screws on the cable connector retainer by using the cross-head screwdriver.
2. Slide the cable connector retainer back.
3. Gently pull the release pull tab on the Virtual Chassis cable connector to release the
lock holding the Virtual Chassis cable connector in the Virtual Chassis port.
4. Gently pull the Virtual Chassis cable connector out of the Virtual Chassis port.
Copyright © 2015, Juniper Networks, Inc.242
EX4200 Switch Hardware Guide

Juniper EX4200 Specifications

General

Model	EX4200
Switching Capacity	128 Gbps
Layer	Layer 2 and Layer 3
Form Factor	1U
Throughput	96 Mpps
Maximum VLANs	4096
MAC Address Table Size	16, 000
DRAM	1 GB
Flash Memory	1 GB
Forwarding Rate	96 Mpps
JUNOS Software	Yes
Ports	24 or 48
Stacking	Up to 10 switches in a Virtual Chassis configuration
Power Supply	AC or DC
Management	CLI, SNMP, J-Web
Input Voltage	100-240 VAC or -48 VDC
Operating Temperature	0°C to 45°C
Redundancy	Redundant power supplies
Virtual Chassis Technology	Yes
Storage Temperature	-40°C to 70°C
Humidity	5% to 90% non-condensing
