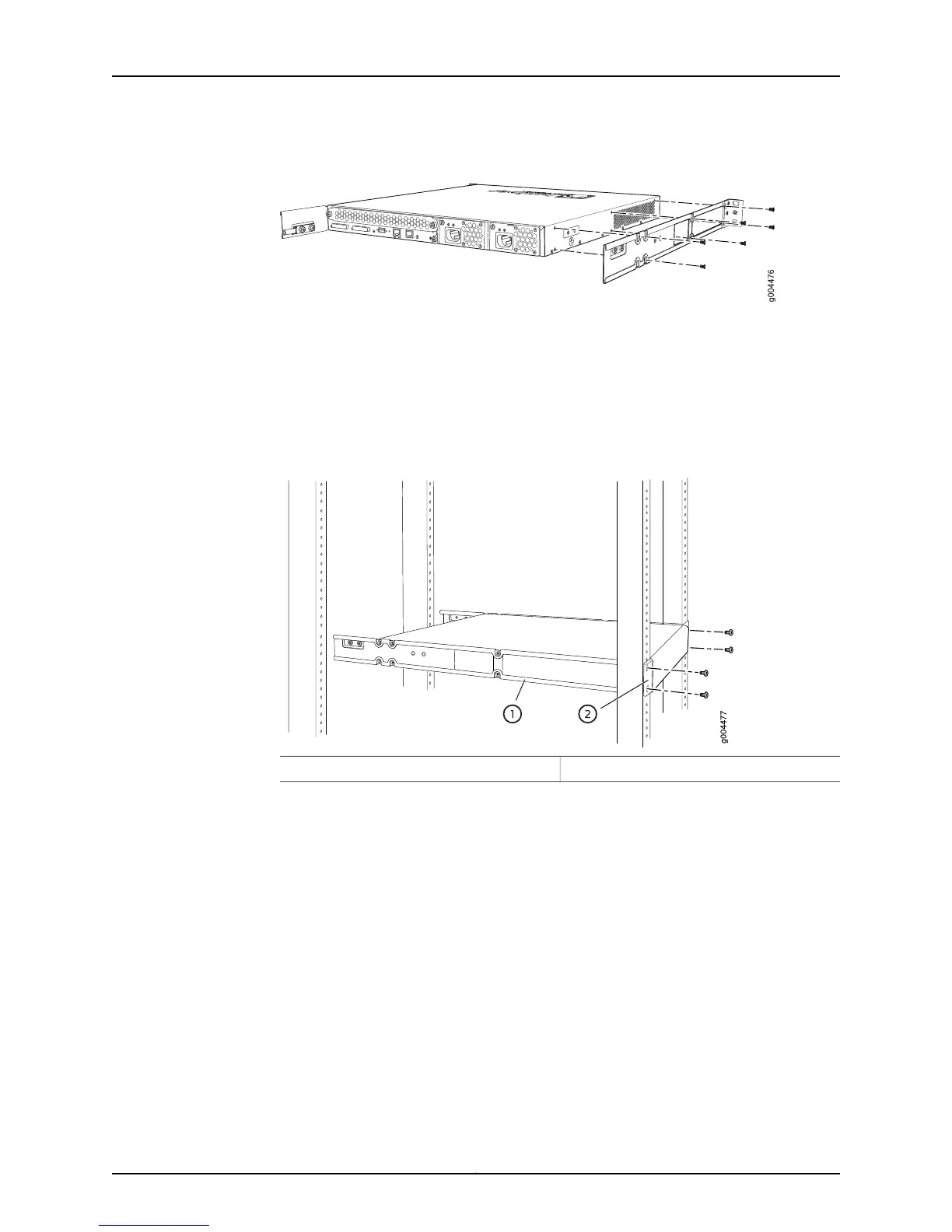

Figure 34: Attaching the Side Mounting-Rail to the Switch Chassis
5. Insert the 4x6-mm Phillips flat-head mounting screws into the remaining four holes
in the side mounting-rails and tighten the screws.
6. Have one person grasp both sides of the switch, lift the switch, and position it in the
rack, aligning the side mounting-rail holes with the threaded holes in the front post
of the rack. Align the bottom hole in both the front-mounting brackets with a hole in
each rack rail, making sure the chassis is level. See Figure 35 on page 165.
Figure 35: Mounting the Switch to the Front Posts in a Rack
2—1— Front-mounting bracketSide mounting-rail
7. Have a second person secure the front of the switch tothe rack by using the appropriate
screws for your rack.
8. Slide the rear mounting-blades into the side mounting-rails. See Figure 36 on page 166.
165Copyright © 2015, Juniper Networks, Inc.
Chapter 12: Installing the Switch
