Juniper EX4200 User Manual

•
See EX4300 Switches Hardware Overview
•
See Front Panel of an EX4500 Switch.
•
See EX4550 Switches Hardware Overview
•
See Switch Fabric and Routing Engine (SRE) Module in an EX6200 Switch.
•
See Switch Fabric and Routing Engine (SRE) Module in an EX8208 Switch.
•
See Routing Engine (RE) Module in an EX8216 Switch.
•
See Front Panel of an XRE200 External Routing Engine.
•
See OCX1100 Switches Hardware Overview.
2. Connect the other end of the Ethernet cable to the management device.

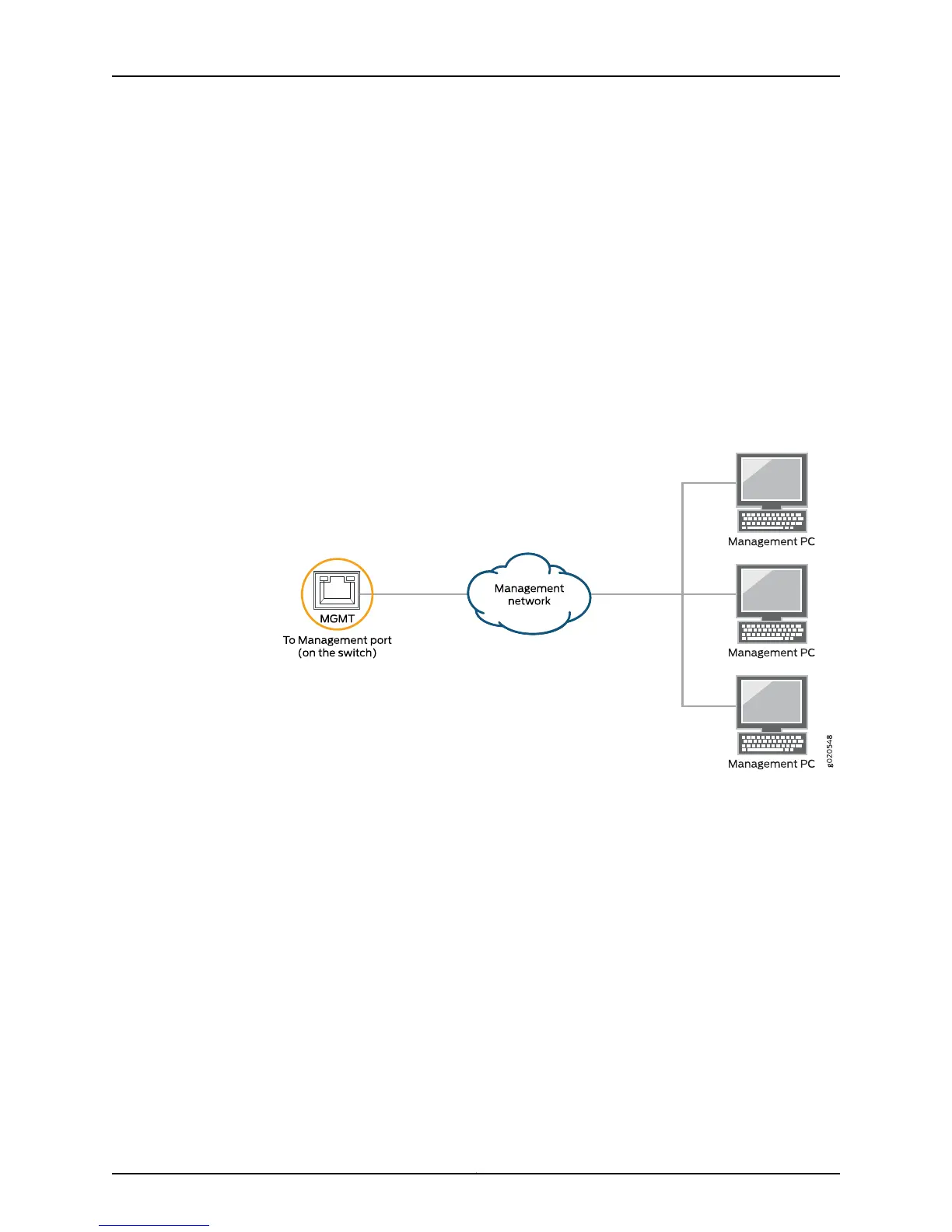

Figure 47: Connecting a Switch to a Network for Out-of-Band Management
Related
Documentation
Connecting a Switch to a Management Console on page 187•
• Management Port Connector Pinout Information for an EX2200 Switch
• Management Port Connector Pinout Information for an EX3200 Switch
• Management Port Connector Pinout Information for an EX3300 Switch
• Management Port Connector Pinout Information for an EX4200 Switch on page 127
• Management Port Connector Pinout Information for an EX4300 Switch
• Management Port Connector Pinout Information for an EX4500 Switch
• Management Port Connector Pinout Information for an EX4550 Switch
• Management Port Connector Pinout Information for an EX6200 Switch
• Management Port Connector Pinout Information for an EX8200 Switch
• Management Port Connector Pinout Information for an XRE200 External Routing Engine
Copyright © 2015, Juniper Networks, Inc.186
EX4200 Switch Hardware Guide

Juniper EX4200 Specifications

General

Model	EX4200
Switching Capacity	128 Gbps
Layer	Layer 2 and Layer 3
Form Factor	1U
Throughput	96 Mpps
Maximum VLANs	4096
MAC Address Table Size	16, 000
DRAM	1 GB
Flash Memory	1 GB
Forwarding Rate	96 Mpps
JUNOS Software	Yes
Ports	24 or 48
Stacking	Up to 10 switches in a Virtual Chassis configuration
Power Supply	AC or DC
Management	CLI, SNMP, J-Web
Input Voltage	100-240 VAC or -48 VDC
Operating Temperature	0°C to 45°C
Redundancy	Redundant power supplies
Virtual Chassis Technology	Yes
Storage Temperature	-40°C to 70°C
Humidity	5% to 90% non-condensing
