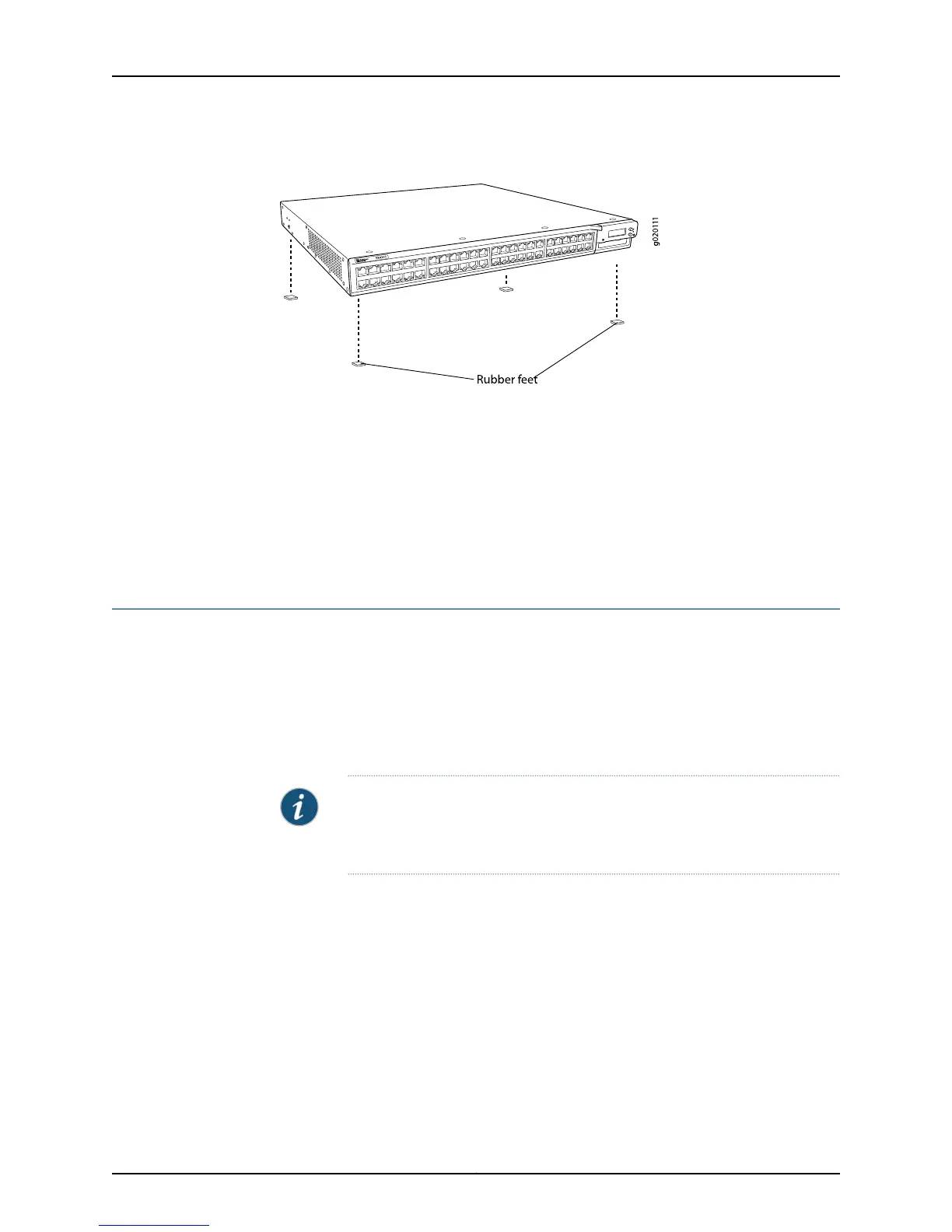

Figure 30: Attaching Rubber Feet to an EX4200 Switch Chassis
Related
Documentation
Connecting AC Power to an EX4200 Switch on page 177•
• Connecting DC Power to an EX4200 Switch on page 179
• Connecting and Configuring an EX Series Switch (CLI Procedure) on page 195
• Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 198
• Clearance Requirements for Airflow and Hardware Maintenance for EX4200 Switches
on page 72
Mounting an EX4200 Switch on Two Posts in a Rack or Cabinet
You can mount an EX4200 switch on two posts of a 19-in. rack (either a two-post or a
four-post rack) or a 19-in. cabinet by using the mounting brackets provided with the
switch. (The remainder of this topic uses “rack” to mean “rack or cabinet.”)
You can mount the switch on four posts of a four-post rack by using the mounting brackets
provided with the separately orderable four-post rack-mount kit. See “Mounting an
EX4200 Switch on Four Posts in a Rack or Cabinet” on page 163.
NOTE: If you need to mount the switch in a recessed position on either a
two-post rack or a four-post rack, you can use the 2-in.-recess front brackets
provided in the separately orderable four-post rack-mount kit.
Before mounting the switch on two posts in a rack:
•
Verify that the site meets the requirements described in “Site Preparation Checklist
for EX4200 Switches” on page 61.
•
Place the rack in its permanent location, allowing adequate clearance for airflow and
maintenance, and secure it to the building structure.
•
Read “General Safety Guidelines and Warnings” on page 267, with particular attention
to “Chassis Lifting Guidelines for EX4200 Switches” on page 277.
•
Remove the switch from the shipping carton (see “Unpacking an EX4200 Switch” on
page 153).
