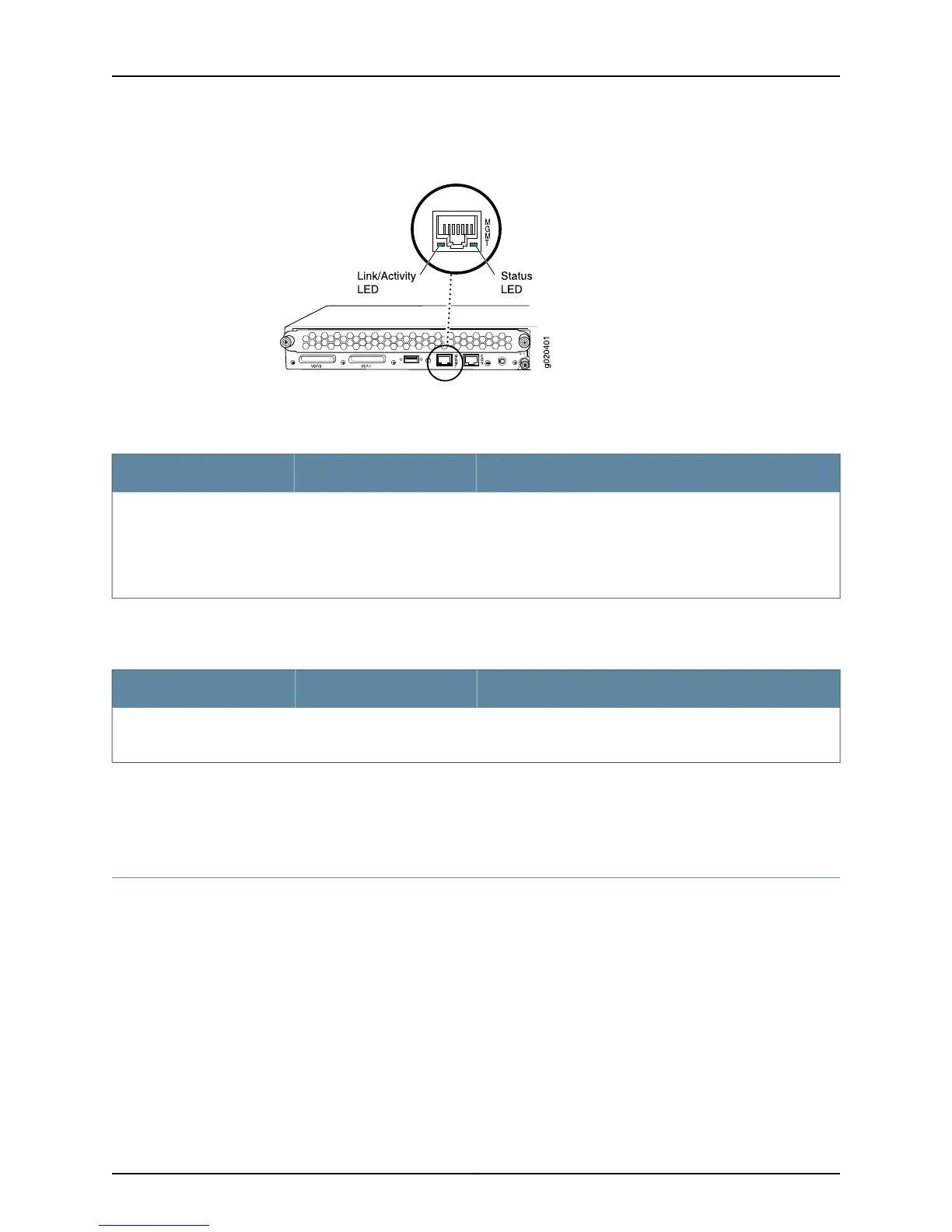

Figure 10: LEDs on the Management Port on an EX4200 Switch
Table 8 on page 24 describes the Link/Activity LED.
Table 8: Link/Activity LED on the Management Port on EX4200 Switches
State and DescriptionColorLED
•
Blinking—The port and the link are active, and there is link
activity.
•
On steadily—The port and the link are active, but there is no
link activity.
•
Off—The port is not active.
GreenLink/Activity
Table 9 on page 24 describes the Status LED (administrative status).
Table 9: Status LED on the Management Port on EX4200 Switches
State and DescriptionColorLED
•
On steadily—Administrative status is enabled.
•
Off—Administrative status is disabled.
GreenStatus
Related
Documentation
See Rear Panel of an EX4200 Switch on page 12 for port location.•
• Connecting a Switch to a Network for Out-of-Band Management on page 185
Network Port LEDs in EX4200 Switches
Each network port on the switch has two LEDs. The four figures in this topic show the
location of those LEDs:
•
Figure 11 on page 25 shows the location of the LEDs on the network ports on the front
panel.
•
Figure 12 on page 25 shows the location of the LEDs on the uplink module ports on the
SFP uplink module.
Copyright © 2015, Juniper Networks, Inc.24
EX4200 Switch Hardware Guide

Juniper EX4200 Specifications

General

Model	EX4200
Switching Capacity	128 Gbps
Layer	Layer 2 and Layer 3
Form Factor	1U
Throughput	96 Mpps
Maximum VLANs	4096
MAC Address Table Size	16, 000
DRAM	1 GB
Flash Memory	1 GB
Forwarding Rate	96 Mpps
JUNOS Software	Yes
Ports	24 or 48
Stacking	Up to 10 switches in a Virtual Chassis configuration
Power Supply	AC or DC
Management	CLI, SNMP, J-Web
Input Voltage	100-240 VAC or -48 VDC
Operating Temperature	0°C to 45°C
Redundancy	Redundant power supplies
Virtual Chassis Technology	Yes
Storage Temperature	-40°C to 70°C
Humidity	5% to 90% non-condensing
